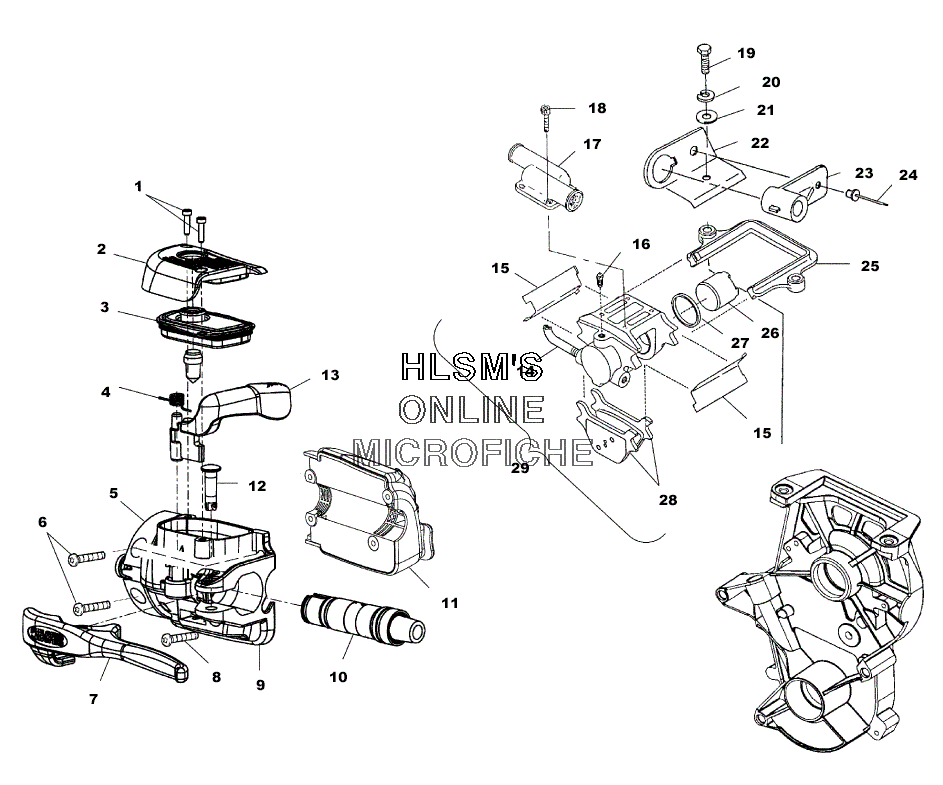

BRAKE ASSEMBLY для Polaris 500 XC (S00SB5AS) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    2201254 COVER SCREW KIT
    COVER SCREW KIT
  • 2
    2201255 COVER ASSY. (INCL. 1, 3)
    COVER ASSY. (INCL. 1, 3)
  • 4
    2201250 PARK LEVER SPRING KIT
    PARK LEVER SPRING KIT
  • 5
    2050087 MASTER CYLINDER ASSY (INCL. 2, 4, 7, 9, 10, 12)
    MASTER CYLINDER ASSY (INCL. 2, 4, 7, 9, 10, 12)
  • 6
    7517441 SCREW
    SCREW
  • 7
    2201569 LEVER KIT, 3 NOTCH PIN RING
    LEVER KIT, 3 NOTCH PIN RING
  • 8
    7517566 SCREW
    SCREW
  • 9
    2201249 MASTER CYLINDER ASSY.
    MASTER CYLINDER ASSY.
  • 9
    4010157 SWITCH, BRAKE LIGHT
    SWITCH, BRAKE LIGHT
  • 10
    2201248 CARTRIDGE SUB-ASSY. KIT (5/8'')
    CARTRIDGE SUB-ASSY. KIT (5/8'')
  • 11
    2010167 CONTROL ASSY., BASIC (LEFT)
    CONTROL ASSY., BASIC (LEFT)
  • 12
    2201252 PIVOT PIN KIT, ALUMINUM W/SNAP RING
    PIVOT PIN KIT, ALUMINUM W/SNAP RING
  • 13
    2201251 PARK LEVER AND SPRING KIT (INCL. 4)
    PARK LEVER AND SPRING KIT (INCL. 4)
  • 14
    1910313 LINE, BRAKE HYBRID
    LINE, BRAKE HYBRID
  • 15
    2200467 CLIP SPRING KIT (QTY. 2)
    CLIP SPRING KIT (QTY. 2)
  • 16
    1930735 INLET KIT
    INLET KIT
  • 17
    1930728 COOLER, WATER BRAKE
    COOLER, WATER BRAKE
  • 17
    2201024 GASKET, BRAKE COOLER
    GASKET, BRAKE COOLER
  • 18
    1930729 SCREW SET (PKG. OF 4)
    SCREW SET (PKG. OF 4)
  • 19
    7515521 BOLT
    BOLT
  • 20
    7552603 WASHER
    WASHER
  • 21
    7555806 WASHER
    WASHER
  • 22
    5240171-067 BRACKET, ROPE GUIDE (BLACK)
    BRACKET, ROPE GUIDE (BLACK)
  • 23
    5431385 GUIDE, RECOIL
    GUIDE, RECOIL
  • 24
    7621433 RIVET
    RIVET
  • 25
    1930733 CALIPER BRACKET KIT
    CALIPER BRACKET KIT
  • 26
    1930734 PISTON SEAL KIT (INCL. 27)
    PISTON SEAL KIT (INCL. 27)
  • 27
    2200466 SEAL
    SEAL
  • 28
    2201429 BRAKE KIT, PAD TYPE 81 (SMALL) (INCL. 15)
    BRAKE KIT, PAD TYPE 81 (SMALL) (INCL. 15)
  • 28
    2201430 BRAKE KIT, PAD TYPE 81 (LARGE) (INCL. 15)
    BRAKE KIT, PAD TYPE 81 (LARGE) (INCL. 15)
  • 29
    1910344 BRAKE CALIPER, HEAD LIQ NOSW (INCL. 26, 27, 28)
    BRAKE CALIPER, HEAD LIQ NOSW (INCL. 26, 27, 28)
