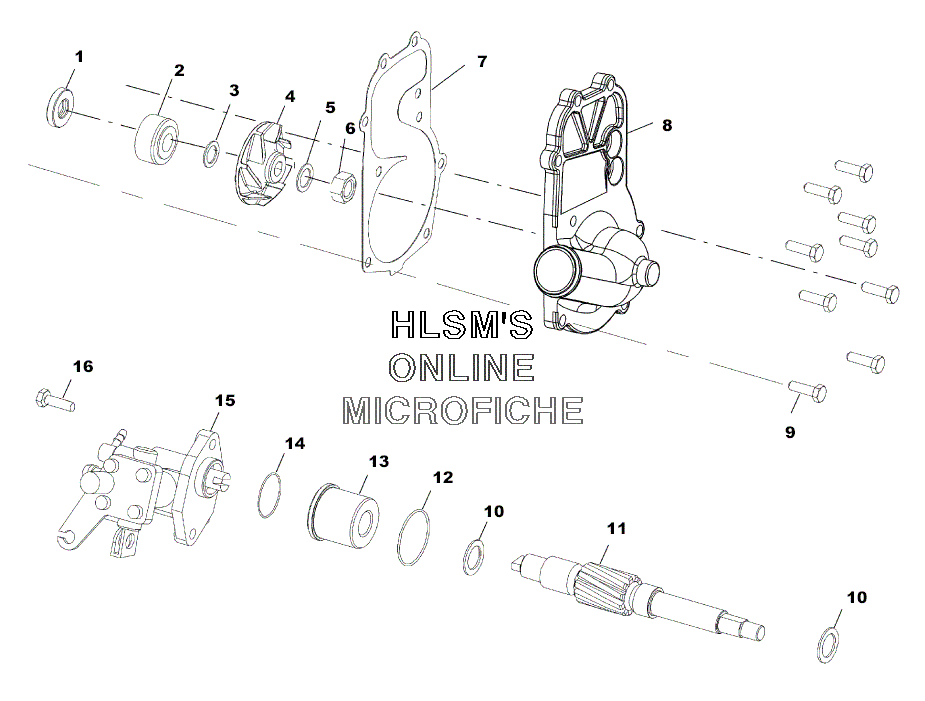

WATER PUMP/OIL PUMP для Polaris 500 XC (S00SB5AS) - 2000 года выпуска
-
№АртикулНазвание
-
15411197 SEAL, TYPE SSEAL, TYPE S
-
23610067 SEAL, WATER PUMPSEAL, WATER PUMP
-
37556006 WASHER, FLATWASHER, FLAT
-
45432330 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
57555874 WASHER, FLATWASHER, FLAT
-
67546804 NUT, HEXAGONNUT, HEXAGON
-
75811601 GASKET, WATER PUMP COVERGASKET, WATER PUMP COVER
-
85630920 COVER, WATER PUMP (HI FLOW)COVER, WATER PUMP (HI FLOW)
-
97516822 SCREWSCREW
-
107555977 WASHER, THRUSTWASHER, THRUST
-
115131855 DRIVESHAFT, WATER/OIL PUMPDRIVESHAFT, WATER/OIL PUMP
-
125411196 O-RINGO-RING
-
135010391 BEARING, PUMP SHAFT FLANGEDBEARING, PUMP SHAFT FLANGED
-
145811789 GASKET, OIL PUMPGASKET, OIL PUMP
-
152540051 PUMP ASSY., OILPUMP ASSY., OIL
