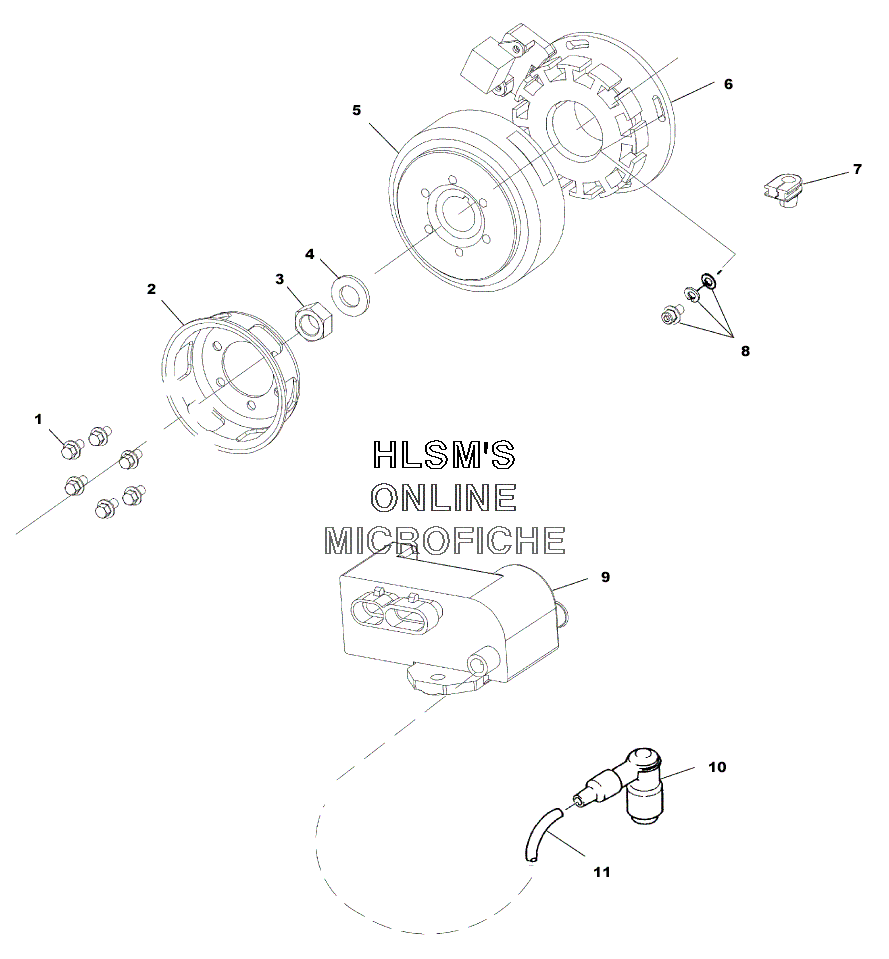

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris 500 XC (S00SB5AS) - 2000 года выпуска`
-
№АртикулНазвание
-
17517278 SCREWSCREW
-
23040161 PULLEY, STARTINGPULLEY, STARTING
-
37546909 NUTNUT
-
47555907 WASHERWASHER
-
54010139 FLYWHEEL ASSY.FLYWHEEL ASSY.
-
64060206 STATOR ASSY.STATOR ASSY.
-
75411202 GROMMET, STATOR (20MM)GROMMET, STATOR (20MM)
-
87517314 SCREWSCREW
-
87555969 WASHER, LOCKWASHER, LOCK
-
87555970 WASHER, FLATWASHER, FLAT
-
92201167 CDI KIT (S50-44-99A1) (INCL. NYOGEL AND DECAL)CDI KIT (S50-44-99A1) (INCL. NYOGEL AND DECAL)
-
104020159 CAP, SPARK PLUGCAP, SPARK PLUG
-
114010124-305 WIRE, IGNITION BULK (305CM) (OPT)WIRE, IGNITION BULK (305CM) (OPT)
