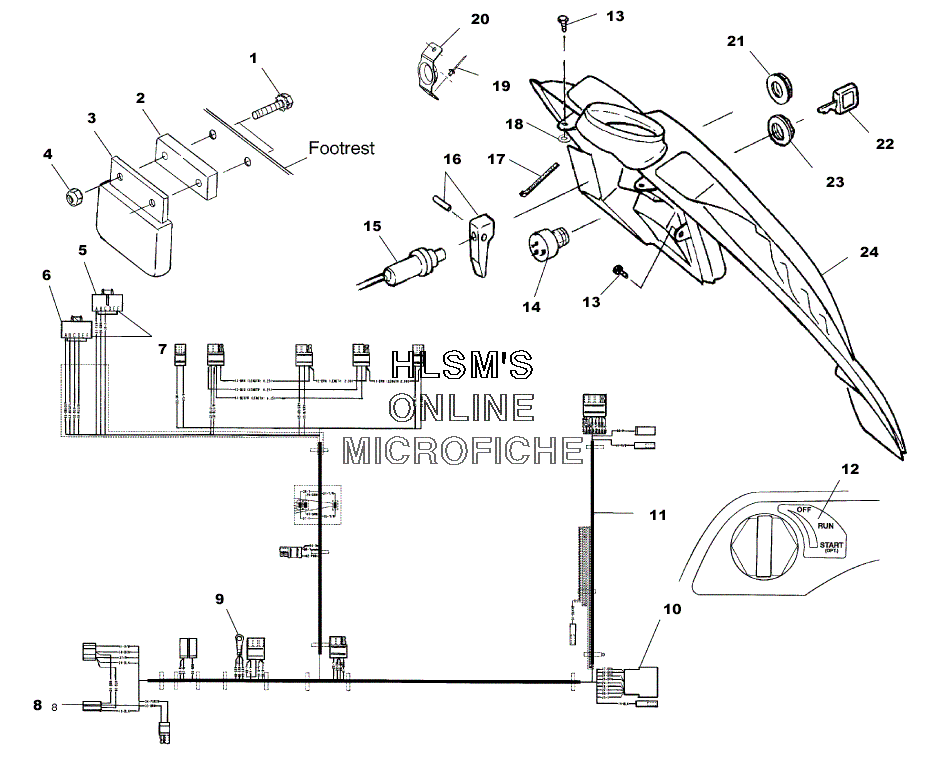

CONSOLE для Polaris 500 XC (S00SB5AS) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    7512031 BOLT
    BOLT
  • 2
    5211573 SPACER, REGULATOR
    SPACER, REGULATOR
  • 3
    4060123 REGULATOR (14.3VAC) (LR-7)
    REGULATOR (14.3VAC) (LR-7)
  • 4
    7541925 NUT
    NUT
  • 5
    4010193 HOUSING, CONNECTOR (PAC #12186213)
    HOUSING, CONNECTOR (PAC #12186213)
  • 6
    4010194 HOUSING, CONNECTOR (PAC #12064860)
    HOUSING, CONNECTOR (PAC #12064860)
  • 7
    4010192 SOCKET, PACKARD (#12047767)
    SOCKET, PACKARD (#12047767)
  • 8
    4020063 HOUSING
    HOUSING
  • 9
    4020092 TERMINAL, RING
    TERMINAL, RING
  • 10
    4020057 HOUSING W/RECEPTACLE
    HOUSING W/RECEPTACLE
  • 11
    2460733 HARNESS, MAIN, GEN 2 COMMON
    HARNESS, MAIN, GEN 2 COMMON
  • 12
    7077367 DECAL, CONSOLE IGNITION
    DECAL, CONSOLE IGNITION
  • 13
    7515199 SCREW
    SCREW
  • 14
    2200358 IGNITION SWITCH KIT
    IGNITION SWITCH KIT
  • 15
    7080734 CABLE, CHOKE SINGLE-PULL (INCL. 16, 21)
    CABLE, CHOKE SINGLE-PULL (INCL. 16, 21)
  • 16
    2201439 CHOKE LEVER KIT
    CHOKE LEVER KIT
  • 17
    7080804 CABLE TIE RELEASABLE (5 1/2'')
    CABLE TIE RELEASABLE (5 1/2'')
  • 18
    7555932 WASHER, NYLON
    WASHER, NYLON
  • 19
    7621330 RIVET, POP
    RIVET, POP
  • 20
    5243049 GUIDE, RECOIL
    GUIDE, RECOIL
  • 21
    5432944 NUT, CHOKE
    NUT, CHOKE
  • 22
    5410611 KEY, IGNITION W/CAP (SEE NOTE)
    KEY, IGNITION W/CAP (SEE NOTE)
  • 23
    7547035 NUT, IGNITION
    NUT, IGNITION
  • 24
    5432906 CONSOLE, HYBRID (BLACK)
    CONSOLE, HYBRID (BLACK)
