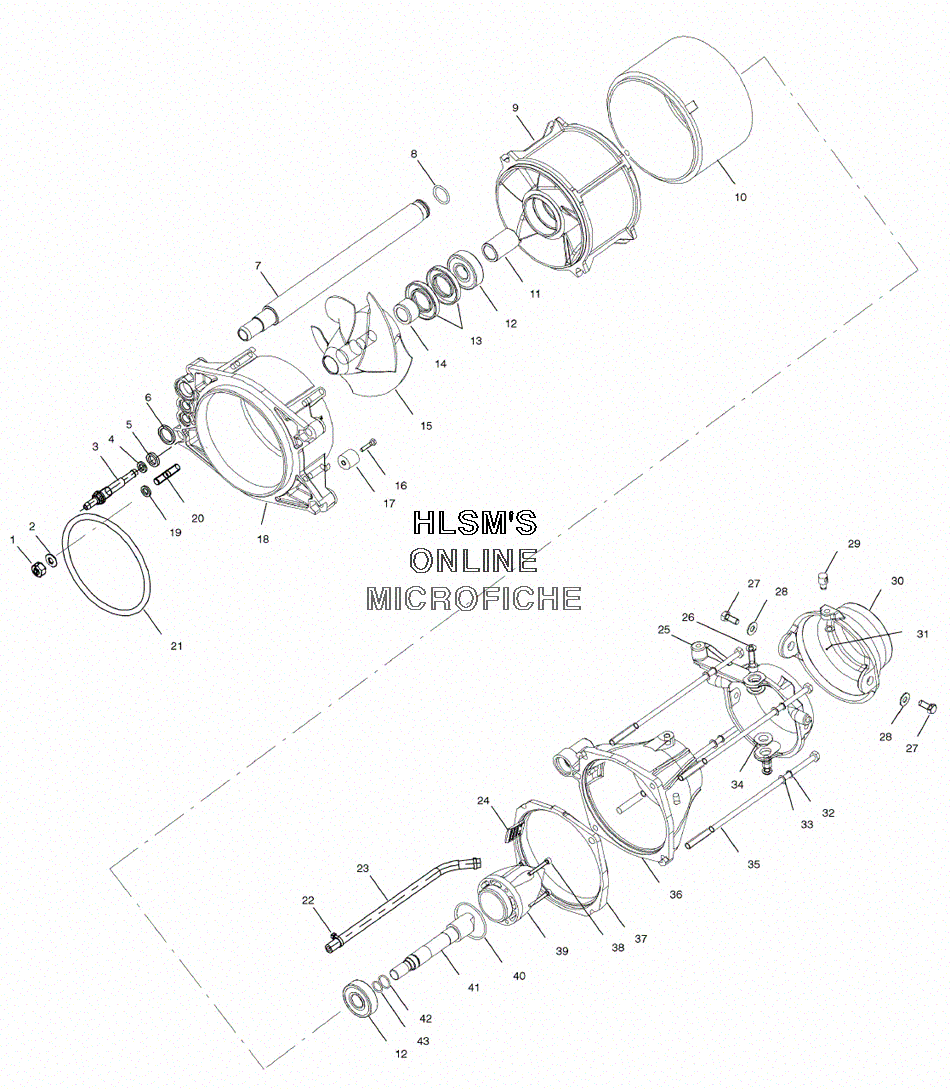

PROPULSION для Polaris PRO 785 2-Pass - 2000 года выпуска
-
№АртикулНазвание
-
17542455 NUT, HEXNUT, HEX
-
27555966 WASHERWASHER
-
35431990 OUTLET, PIPEOUTLET, PIPE
-
47555866 WASHERWASHER
-
55411016 SEAL, SIPHON TUBESEAL, SIPHON TUBE
-
65411107 SEAL, WATER PIPESEAL, WATER PIPE
-
75432269 PIPE, WATER ENGINEPIPE, WATER ENGINE
-
85410735 O-RINGO-RING
-
95132088 STATORSTATOR
-
105131196 EXTENSION, PUMPEXTENSION, PUMP
-
115010294 SPACERSPACER
-
123514008 BEARINGBEARING
-
133610043 SEAL, BEARING STATORSEAL, BEARING STATOR
-
145010295 SPACER, IMPELLERSPACER, IMPELLER
-
155131457 IMPELLER (12-17DEG)IMPELLER (12-17DEG)
-
167522019 SCREWSCREW
-
175630598 SLEEVESLEEVE
-
185131574 HOUSING, PUMP W/RING INT STUDHOUSING, PUMP W/RING INT STUD
-
197555941 WASHER, PUMP STUD SEALWASHER, PUMP STUD SEAL
-
205132111 STUD, MOUNT PUMP LONG INTSTUD, MOUNT PUMP LONG INT
-
215410652 O-RING, PUMP HOUSING/HULLO-RING, PUMP HOUSING/HULL
-
227080138 CABLE TIECABLE TIE
-
238450054-100 HOSE, WATERHOSE, WATER
-
245431523 SCREEN, ENGINE INLETSCREEN, ENGINE INLET
-
255130960 NOZZLE, STEERING REVERSENOZZLE, STEERING REVERSE
-
267515366 BOLTBOLT
-
277515361 BOLTBOLT
-
287555874 WASHER, FLATWASHER, FLAT
-
295131463 SWIVEL, ROD ENDSWIVEL, ROD END
-
305431765 NOZZLE, TRIMNOZZLE, TRIM
-
317661010 PIN, COTTERPIN, COTTER
-
327552610 WASHER, LOCKWASHER, LOCK
-
337555835 WASHER, FLATWASHER, FLAT
-
345431518 BEARING, STEERING NOZZLEBEARING, STEERING NOZZLE
-
357515389 BOLTBOLT
-
361350038 NOZZLE ASSY. (0X4 WEDGE)NOZZLE ASSY. (0X4 WEDGE)
-
375432841 WEDGE, PUMP (0X4 MOLDED)WEDGE, PUMP (0X4 MOLDED)
-
387512064 SCREWSCREW
-
395431519 CONE, PUMPCONE, PUMP
-
405811984 SEAL, TAILCONESEAL, TAILCONE
-
415020697 SHAFT, STUBSHAFT, STUB
-
425410818 O-RINGO-RING
-
435410817 O-RINGO-RING
