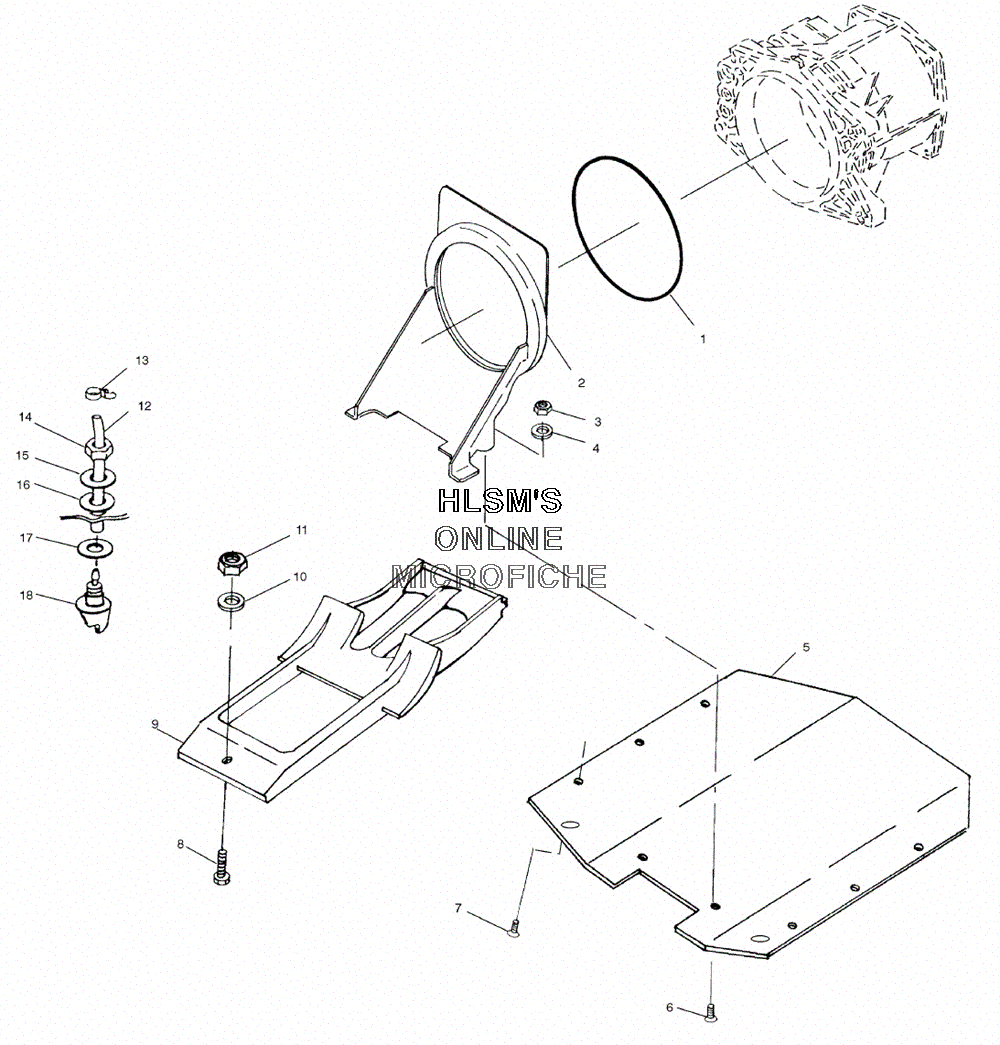

INTAKE GRATE W/ RIDE PLATE для Polaris PRO 785 2-Pass - 2000 года выпуска
-
№АртикулНазвание
-
15410652 O-RINGO-RING
-
25130825 SCOOP, INLETSCOOP, INLET
-
37542455 NUT, HEXNUT, HEX
-
47555966 WASHERWASHER
-
55242019 PLATE, RIDEPLATE, RIDE
-
67515126 BOLTBOLT
-
77517267 SCREWSCREW
-
87515380 BOLTBOLT
-
92871560 GRATE, IN.SCOOP 3 BARGRATE, IN.SCOOP 3 BAR
-
107555835 WASHER, FLATWASHER, FLAT
-
117542335 NUT, HEXNUT, HEX
-
128450070-235 LINE, PITOT FORMED END 90 DEGREELINE, PITOT FORMED END 90 DEGREE
-
137080483 CABLE TIE (4 IN.)CABLE TIE (4 IN.)
-
147543007 NUT, HEX, NYLONNUT, HEX, NYLON
-
157555848 WASHER, FLATWASHER, FLAT
-
167555873 WASHER, FLAT NYLONWASHER, FLAT NYLON
-
175810879 GASKET, PITOTGASKET, PITOT
-
185431634 FITTING, PILOT MOLDEDFITTING, PILOT MOLDED
Все узлы модели:
- ACTUATOR
- AIR INTAKE SYSTEM
- BATTERY BOX
- BILGE PUMP
- BILGE SIPHON
- CARBURETOR
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTONS
- CYLINDER W/ EXHAUST
- DECALS
- DRIVE SHAFT W/ COUPLER
- ELECTRICAL BOX
- ENGINE FOGGING SYSTEM
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FUEL / WATER SEPARATOR
- FUEL SYSTEM
- FUEL TANK
- HANDLEBAR ASSY. W/ STEERING COLUMN
- HULL
- HULL
- • INTAKE GRATE W/ RIDE PLATE
- MAGNETO
- OIL PUMP
- OIL TANK
- PROPULSION
- SEAT
- STARTING MOTOR
- STEERING CABLE ASSY.
- STORAGE COMPARTMENT - FRONT
- TOOL KIT
- TRIM ASSY.
