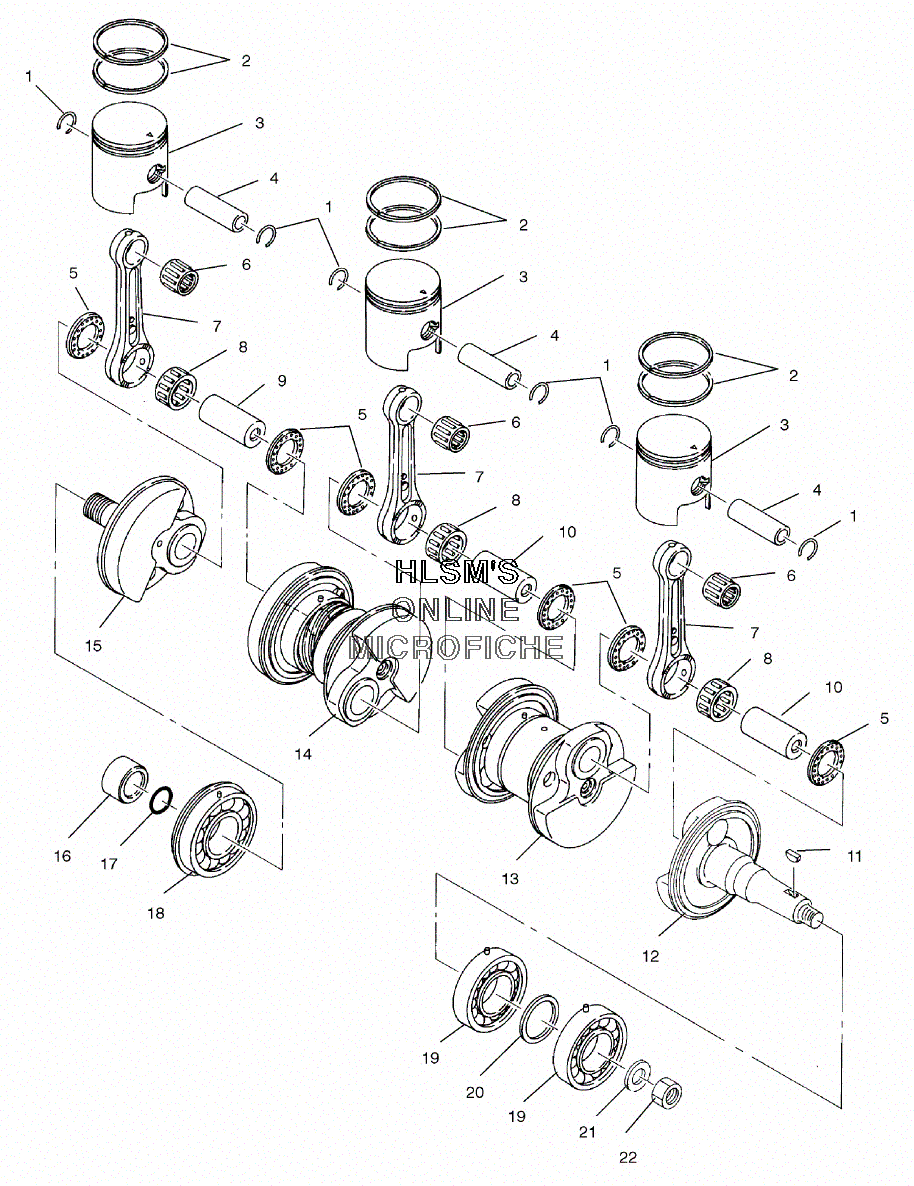

CRANKSHAFT W/ PISTONS для Polaris PRO 785 2-Pass - 2000 года выпуска
-
№АртикулНазвание
-
13083839 CLIP, PISTON PINCLIP, PISTON PIN
-
23240332 RING, PISTON (STD)RING, PISTON (STD)
-
33240329 SET, PISTON (STD)SET, PISTON (STD)
-
43085596 PIN, PISTONPIN, PISTON
-
53083277 SPACER (CRANKPIN)SPACER (CRANKPIN)
-
63085595 BEARING, END (SMALL)BEARING, END (SMALL)
-
73240326 ROD, CONNECTINGROD, CONNECTING
-
83085628 BEARING, END (LARGE)BEARING, END (LARGE)
-
93240085 PIN, CRANKPIN, CRANK
-
103083254 PIN, CRANK 2PIN, CRANK 2
-
113085597 KEY, WOODRUFFKEY, WOODRUFF
-
123240320 CRANKSHAFT ASSY. (INCL. 5, 7, 10, 12, 15, 18, 20)CRANKSHAFT ASSY. (INCL. 5, 7, 10, 12, 15, 18, 20)
-
123240321 CRANKSHAFT 1 (MAG)CRANKSHAFT 1 (MAG)
-
133240322 CRANKSHAFT (CENTER) (INCL. 5, 7, 10, 13, 14)CRANKSHAFT (CENTER) (INCL. 5, 7, 10, 13, 14)
-
133240323 CRANKSHAFT (MAG) (INCL. 10)CRANKSHAFT (MAG) (INCL. 10)
-
143240324 CRANKSHAFT (CENTER) (PTO) (INCL. 9)CRANKSHAFT (CENTER) (PTO) (INCL. 9)
-
153240325 CRANKSHAFT 3 (PTO)CRANKSHAFT 3 (PTO)
-
163240327 RING, WEARRING, WEAR
-
173240328 O-RINGO-RING
-
183084545 BEARING, BALLBEARING, BALL
-
193084544 BEARING, BALLBEARING, BALL
-
203240088 SPACERSPACER
-
213085598 WASHERWASHER
-
223083093 NUTNUT
