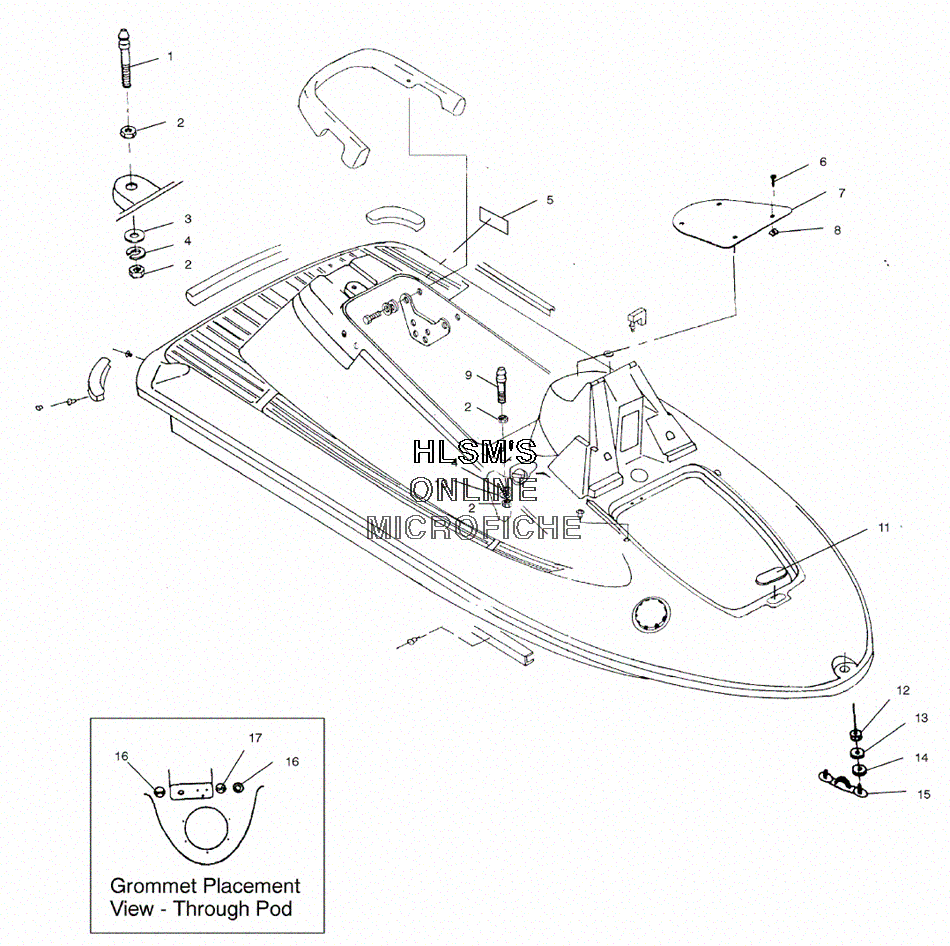

HULL для Polaris PRO 785 2-Pass - 2000 года выпуска
-
№АртикулНазвание
-
15020753 PLUNGER, LATCHPLUNGER, LATCH
-
27542454 NUT, HEXNUT, HEX
-
37555846 WASHER, FLATWASHER, FLAT
-
47552607 WASHER, LOCKWASHER, LOCK
-
57078311 DECAL, WARNING SEAT/ENGINEDECAL, WARNING SEAT/ENGINE
-
67512047 SCREWSCREW
-
75432538-070 PANEL, POD ACCESS (BLACK)PANEL, POD ACCESS (BLACK)
-
87670077 CLIP, 'U'CLIP, 'U'
-
95020929 PLUNGER, LATCH SIDEPLUNGER, LATCH SIDE
-
107555841 WASHER, FLATWASHER, FLAT
-
115432938 BUMPER, COMPARTMENT DOOR SUPPORTBUMPER, COMPARTMENT DOOR SUPPORT
-
127542133 NUT, NYLOKNUT, NYLOK
-
137555839 WASHER, FLATWASHER, FLAT
-
147555870 WASHER, RUBBERWASHER, RUBBER
-
152670150 STRAP, BOWSTRAP, BOW
-
165410989 GROMMET, BOOTGROMMET, BOOT
-
175410990 GROMMET, BOOTGROMMET, BOOT
