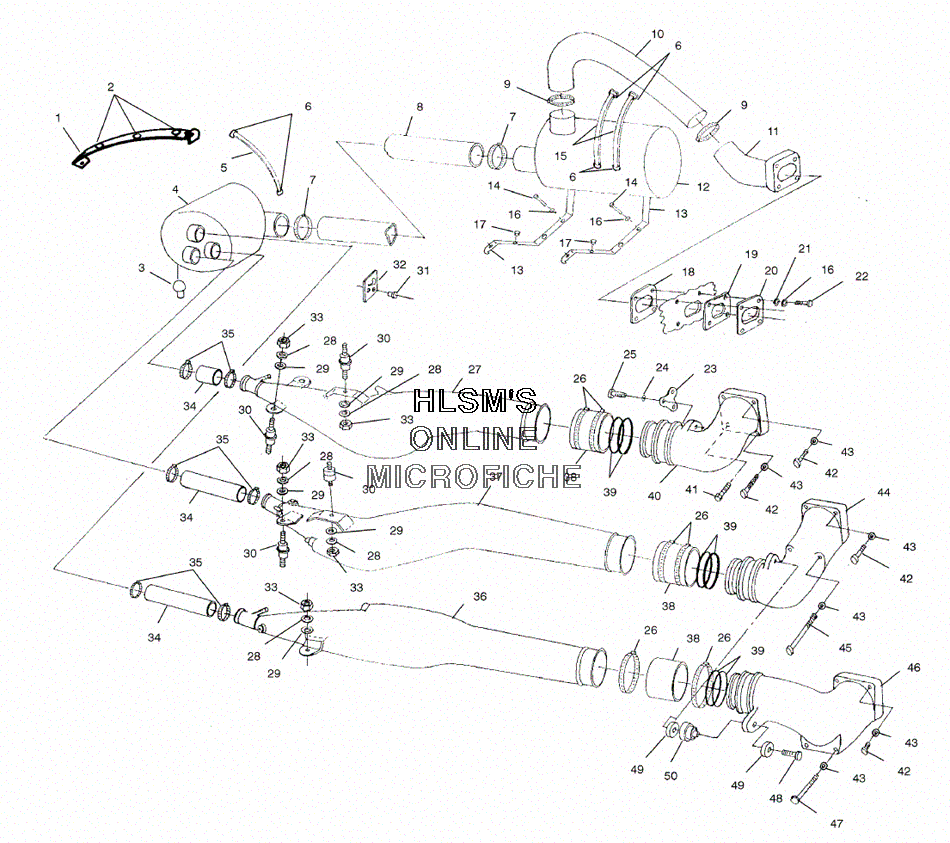

EXHAUST SYSTEM для Polaris PRO 785 2-Pass - 2000 года выпуска
-
№АртикулНазвание
-
15242342 BRACKET, EXHAUST COLLECTORBRACKET, EXHAUST COLLECTOR
-
25410012 PLUG, RUBBER HOLE (.5DIA)PLUG, RUBBER HOLE (.5DIA)
-
35411523 BUMPER RUBBERBUMPER RUBBER
-
45630762 COLLECTOR, EXHAUSTCOLLECTOR, EXHAUST
-
55410424 STRAP, BATTERY HOLDDOWNSTRAP, BATTERY HOLDDOWN
-
65224472 HOOK, 'D'HOOK, 'D'
-
77080445 CLAMP, HOSECLAMP, HOSE
-
88450071-133 HOSEHOSE
-
97080457 CLAMP, HOSECLAMP, HOSE
-
105411312 HOSE, X-OVER EXHAUST (3 IN.)HOSE, X-OVER EXHAUST (3 IN.)
-
115630784 FTNG, EXHAUST THRU HULLFTNG, EXHAUST THRU HULL
-
121260790-251 SILENCER, EXHAUSTSILENCER, EXHAUST
-
135222696 CRADLE, SILENCERCRADLE, SILENCER
-
147515121 BOLTBOLT
-
155430621 STRAPSTRAP
-
167555838 WASHER, LOCKWASHER, LOCK
-
175410414 BUMPER, RUBBERBUMPER, RUBBER
-
185811514 SEAL, IN.UW. EXHAUST (3 IN.)SEAL, IN.UW. EXHAUST (3 IN.)
-
195811487 SEAL, UW. EXHAUST (3 IN.)SEAL, UW. EXHAUST (3 IN.)
-
205630790 PLATE, UW. EXHAUST (3 IN.)PLATE, UW. EXHAUST (3 IN.)
-
217555836 WASHERWASHER
-
227517321 SCREWSCREW
-
235242170 BRACKET, HEADPIPE (MAG)BRACKET, HEADPIPE (MAG)
-
247552608 WASHER, LOCKWASHER, LOCK
-
257516914 BOLTBOLT
-
267080822 CLAMP, HOSE 4.5 HI-TORQUECLAMP, HOSE 4.5 HI-TORQUE
-
271260998 PIPE, EXHAUST ASSY. (MAG) (INCL. 26, 38 AND FITTINGS)PIPE, EXHAUST ASSY. (MAG) (INCL. 26, 38 AND FITTINGS)
-
287555841 WASHER, FLATWASHER, FLAT
-
297552607 WASHER, LOCKWASHER, LOCK
-
303110073 MOUNT, SANDWICHMOUNT, SANDWICH
-
317621479 RIVETRIVET
-
325240134 CLIP, STRAPCLIP, STRAP
-
337542454 NUT, HEXNUT, HEX
-
348450081-31 HOSE (1.75X2.13X31CM.)HOSE (1.75X2.13X31CM.)
-
357080481 CLAMP, HOSECLAMP, HOSE
-
361261001 PIPE, EXHAUST ASSY. (PTO) (INCL. 26, 38 AND FITTINGS)PIPE, EXHAUST ASSY. (PTO) (INCL. 26, 38 AND FITTINGS)
-
365243916 PIPE, EXHAUST (PTO)PIPE, EXHAUST (PTO)
-
371260999 PIPE, EXHAUST ASSY. (CENTER) (INCL. 26, 38 AND FITTINGS)PIPE, EXHAUST ASSY. (CENTER) (INCL. 26, 38 AND FITTINGS)
-
385411315 HOSE, COUPLERHOSE, COUPLER
-
395411311 O-RINGO-RING
-
401260826 HEADPIPE ASSY. (MAG)HEADPIPE ASSY. (MAG)
-
417517339 SCREWSCREW
-
427517538 SCREWSCREW
-
437556062 WASHERWASHER
-
441260827 HEADPIPE ASSY. (CENTER)HEADPIPE ASSY. (CENTER)
-
457517536 SCREWSCREW
-
461260828 HEADPIPE ASSY. (PTO)HEADPIPE ASSY. (PTO)
-
477517537 SCREWSCREW
-
487517432 SCREWSCREW
-
497555846 WASHER, FLATWASHER, FLAT
-
505411370 MOUNT, RUBBERMOUNT, RUBBER
