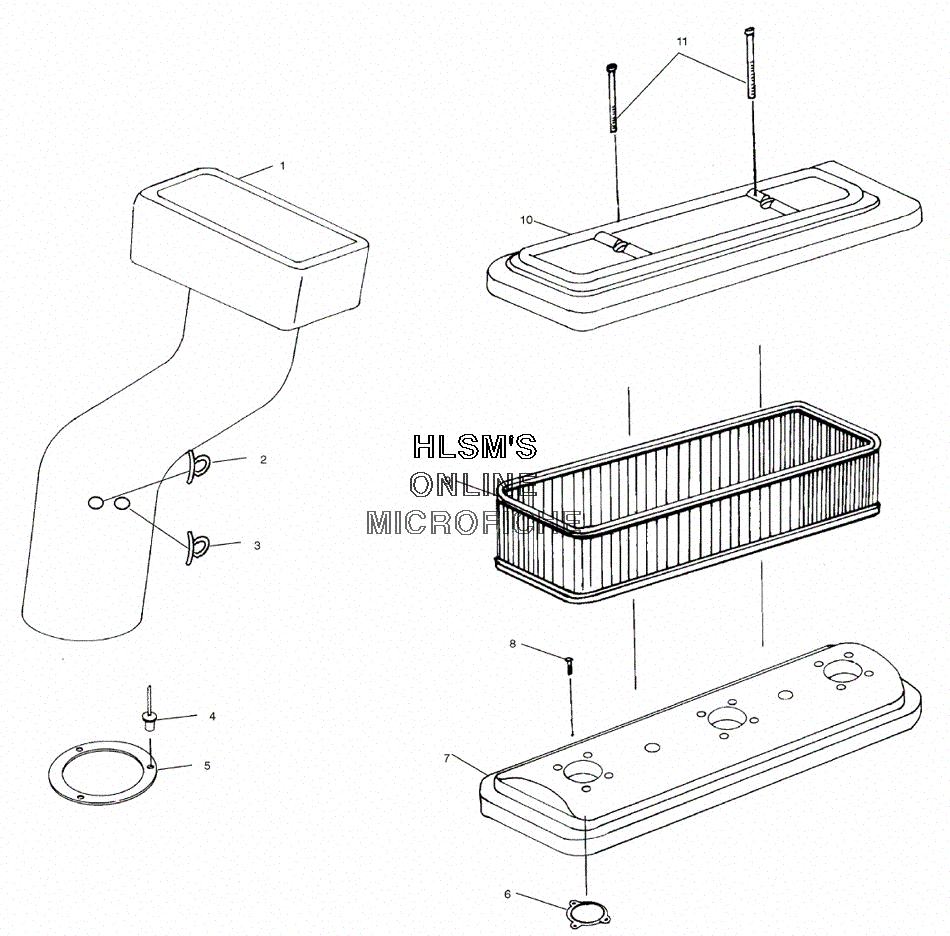

AIR INTAKE SYSTEM для Polaris PRO 785 2-Pass - 2000 года выпуска
-
№АртикулНазвание
-
15432676 DUCT, INTAKE HULL AIRDUCT, INTAKE HULL AIR
-
25521342 RETAINER, FUEL VENTRETAINER, FUEL VENT
-
35521339 RETAINER, VENT OILRETAINER, VENT OIL
-
47621479 RIVETRIVET
-
55410650 SEAL, AIR INTLET DUCTSEAL, AIR INTLET DUCT
-
65830115 GASKET, ARRES/CARBURETOR (44MM.)GASKET, ARRES/CARBURETOR (44MM.)
-
75630658 BASE, AIR INTAKEBASE, AIR INTAKE
-
87516817 SCREWSCREW
-
92530019 FILTER, INTAKEFILTER, INTAKE
-
105432443-070 COVER, INTAKE AIRBOX (BLACK)COVER, INTAKE AIRBOX (BLACK)
-
117517201 SCREWSCREW
