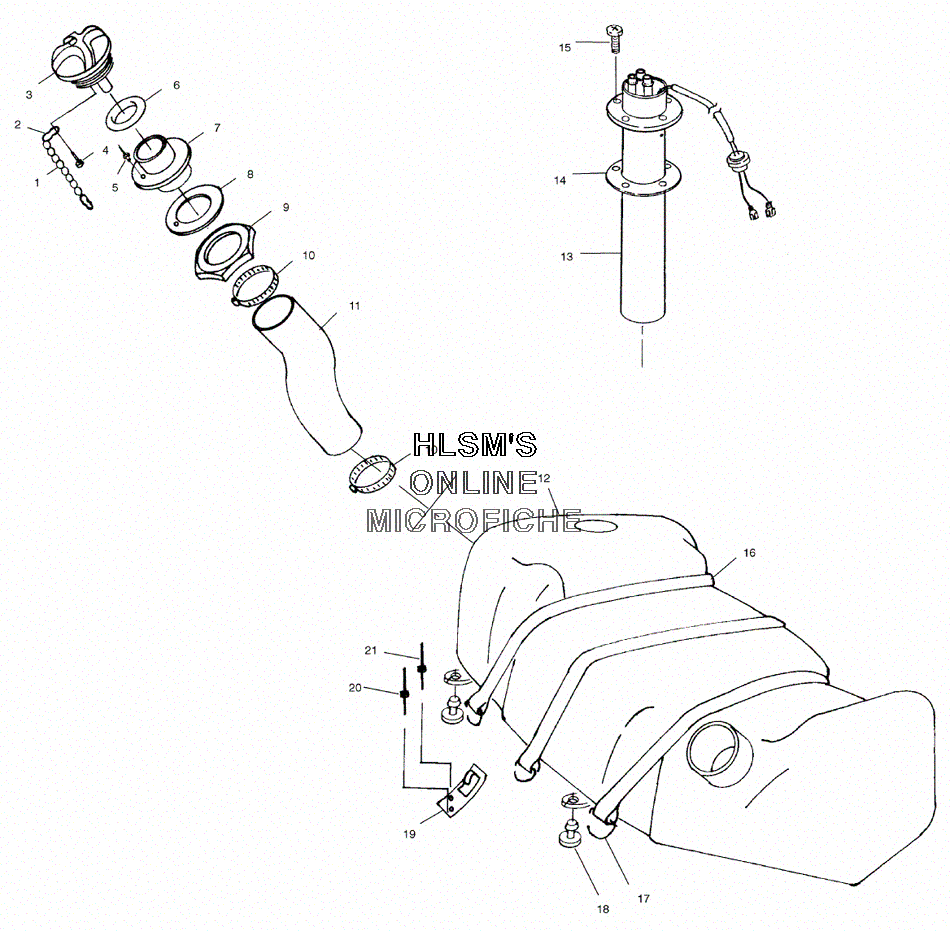

FUEL TANK для Polaris PRO 785 2-Pass - 2000 года выпуска
-
№АртикулНазвание
-
17080710 CHAIN, BEADCHAIN, BEAD
-
27080442 COUPLING, ENDCOUPLING, END
-
32520177 CAP, FUEL RATCHET ASSY.CAP, FUEL RATCHET ASSY.
-
47511873 SCREWSCREW
-
57621229 RIVETRIVET
-
65411305 SEAL, FUEL CAPSEAL, FUEL CAP
-
75433553 INLET, FUELINLET, FUEL
-
85811492 SEAL, FUEL INLETSEAL, FUEL INLET
-
95433621 NUT, INLET FUELNUT, INLET FUEL
-
107080446 CLAMP, HOSECLAMP, HOSE
-
115411566 HOSE, FUEL FILLHOSE, FUEL FILL
-
125432498 TANK, FUELTANK, FUEL
-
132410107 SENDER ASSY., FUELSENDER ASSY., FUEL
-
145810858 GASKET, SENDING UNITGASKET, SENDING UNIT
-
157512045 BOLTBOLT
-
165410854 STRAP, RUBBERSTRAP, RUBBER
-
175224577 HOOK, ''D''HOOK, ''D''
-
185410467 DAMPNER, VIBRATIONDAMPNER, VIBRATION
-
195240134 CLIP, STRAPCLIP, STRAP
-
207661051 RIVET POP (3/16)RIVET POP (3/16)
-
217621479 RIVETRIVET
