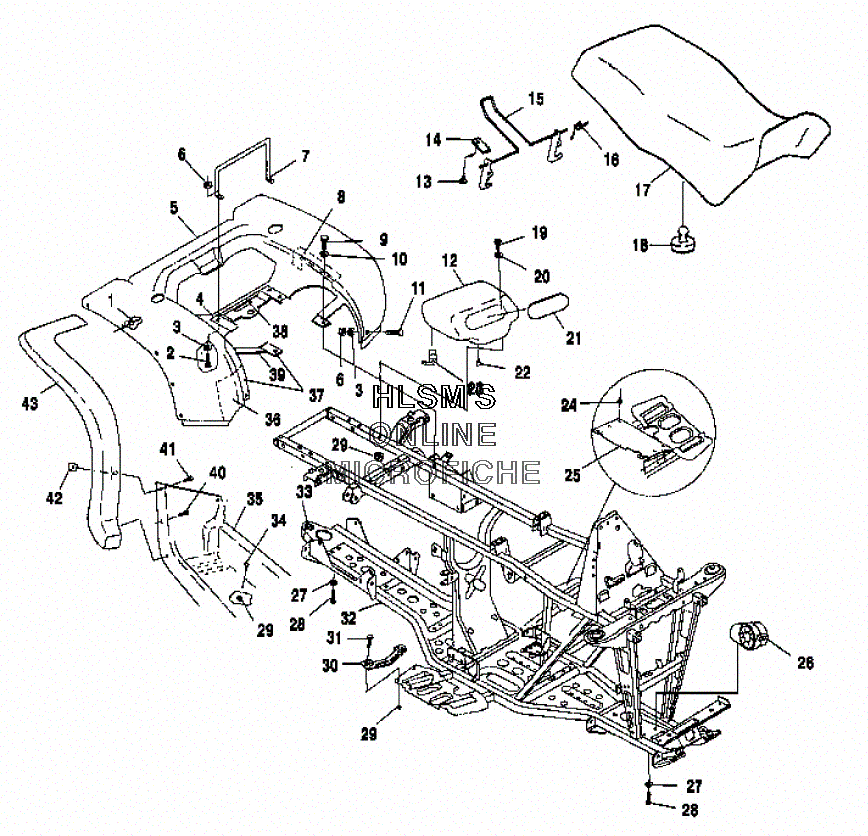

FENDER - REAR W/ SEAT для Polaris SPORTSMAN 500 DUSE (A01CH50AD) - 2001 года выпуска`
-
№АртикулНазвание
-
17661645 RIVETRIVET
-
27511930 SCREWSCREW
-
37555792 WASHERWASHER
-
45811107 FOIL, FENDER (REAR)FOIL, FENDER (REAR)
-
55433941-315A FENDER, WET CAMO (GEN 4) (REAR)FENDER, WET CAMO (GEN 4) (REAR)
-
67541925 NUTNUT
-
75224592 RETAINER, SEAT LATCHRETAINER, SEAT LATCH
-
85811308 FOIL, TAPE 3 X 12FOIL, TAPE 3 X 12
-
97512242 SCREWSCREW
-
107555859 WASHER, FLATWASHER, FLAT
-
117512085 SCREWSCREW
-
125433640 BOX, TOOLBOX, TOOL
-
137621403 BLIND RIVETBLIND RIVET
-
145211033 BRACKET, LEVER RETAINERBRACKET, LEVER RETAINER
-
151040387 LATCH, SEATLATCH, SEAT
-
167041370 SPRING, LATCHSPRING, LATCH
-
172682441-316 SEAT, ASSY. DELTA MARSHSEAT, ASSY. DELTA MARSH
-
172681747-316 COVERING, SEAL DELTA MARSHCOVERING, SEAL DELTA MARSH
-
175811104 FOIL, SEAT BASE LARGEFOIL, SEAT BASE LARGE
-
175811105 FOIL, SEATBASE SMALLFOIL, SEATBASE SMALL
-
185412067 BUMPER, RUBBERBUMPER, RUBBER
-
197517375 WASHERWASHER
-
207555748 WASHERWASHER
-
215431787 COVER, TOOLBOXCOVER, TOOLBOX
-
225410896 CAP, DRAINCAP, DRAIN
-
237052095 FITTING, 90 DEG 1/8FITTING, 90 DEG 1/8
-
247661638 RIVET, INTERLOCKRIVET, INTERLOCK
-
255242953-067 GUARD, CLUTCH (BLACK)GUARD, CLUTCH (BLACK)
-
277552603 WASHERWASHER
-
287512492 SCREWSCREW
-
297542122 NUT, LOCKNUT, LOCK
-
305432280 SPACER, FOOTWELLSPACER, FOOTWELL
-
317517377 SCREWSCREW
-
321012979-067 FRAME, MAIN (BLACK)FRAME, MAIN (BLACK)
-
337078261 DECAL, HITCH (1225)DECAL, HITCH (1225)
-
347517376 SCREW (SUBSTITUTED BY 7512279)SCREW (SUBSTITUTED BY 7512279)
-
355432221-070 FOOTWELL, NYLON (BLACK/LEFT)FOOTWELL, NYLON (BLACK/LEFT)
-
355433219-070 FOOTWELL, NYLON (RIGHT/BLACK)FOOTWELL, NYLON (RIGHT/BLACK)
-
365811111 FOIL, FOAMFOIL, FOAM
-
375811106 FOIL, FENDER (FRONT/REAR)FOIL, FENDER (FRONT/REAR)
-
387079902 DECAL, 4 STRK CARBURETOR/FILTER INFODECAL, 4 STRK CARBURETOR/FILTER INFO
-
395811087 FOIL, FOAM (6X1)FOIL, FOAM (6X1)
-
407512232 BOLTBOLT
-
417517685 SCREWSCREW
-
427670057 NUT, SPEEDNUT, SPEED
-
435431796-070 GUARD, MUD (REAR/LEFT/BLACK)GUARD, MUD (REAR/LEFT/BLACK)
-
435431797-070 GUARD, MUD (REAR/RIGHT/BLACK)GUARD, MUD (REAR/RIGHT/BLACK)
