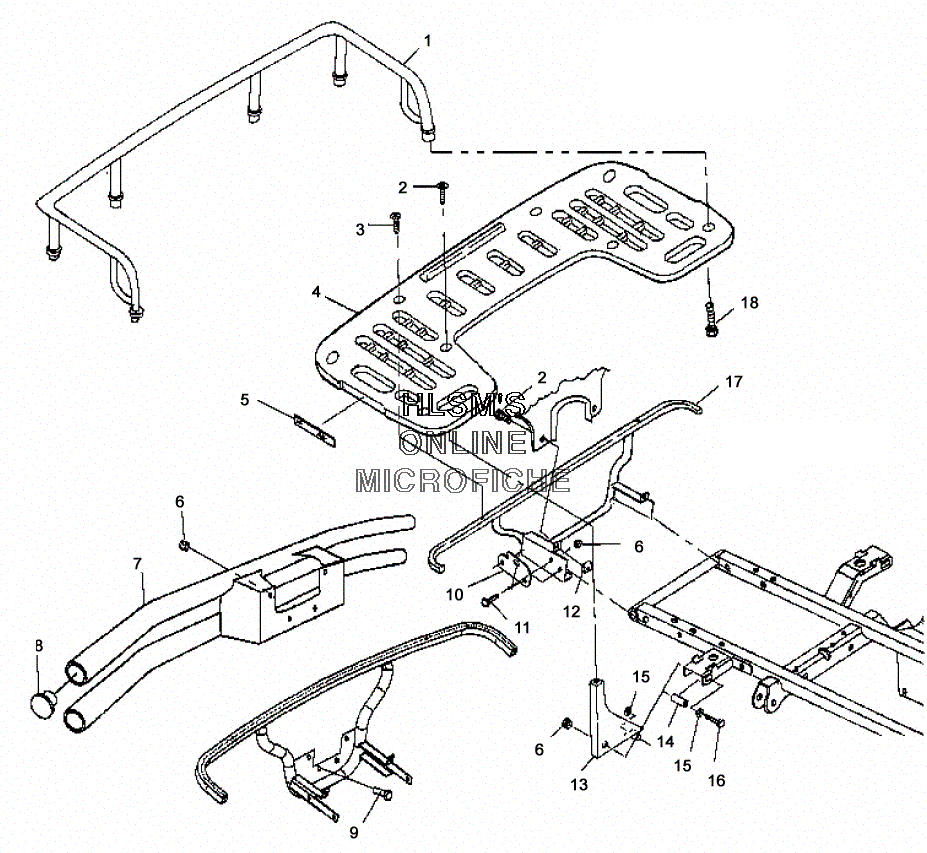

RACK AND BUMPER MOUNTING - REAR для Polaris SPORTSMAN 500 DUSE (A01CH50AD) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    2871501 RACK EXT, GENIV 3.5'' (REAR) (INCL. 18)
    RACK EXT, GENIV 3.5'' (REAR) (INCL. 18)
  • 2
    7517685 SCREW
    SCREW
  • 3
    7517686 SCREW
    SCREW
  • 4
    2670174 RACK ASSY. (REAR/BLACK) (INCL. REF. 5 AND WARNING DECAL)
    RACK ASSY. (REAR/BLACK) (INCL. REF. 5 AND WARNING DECAL)
  • 5
    2670070 REFLECTOR (RED)
    REFLECTOR (RED)
  • 6
    7542324 NUT
    NUT
  • 7
    5243378-067 BUMPER (REAR/BLACK)
    BUMPER (REAR/BLACK)
  • 8
    5433305 CAP, BUMPER END
    CAP, BUMPER END
  • 9
    7515321 BOLT
    BOLT
  • 10
    5241663-067 BRACKET, SILENCER FRAME (BLACK)
    BRACKET, SILENCER FRAME (BLACK)
  • 11
    7512329 BOLT
    BOLT
  • 12
    7670096 NUT
    NUT
  • 13
    1040524-067 MOUNT RACK (LEFT/FRONT/REAR/BLACK)
    MOUNT RACK (LEFT/FRONT/REAR/BLACK)
  • 13
    1040525-067 MOUNT RACK (RIGHT/FRONT/REAR/BLACK)
    MOUNT RACK (RIGHT/FRONT/REAR/BLACK)
  • 14
    5333332-067 SPACER
    SPACER
  • 15
    7558402 WASHER, STEEL
    WASHER, STEEL
  • 16
    7515385 SCREW
    SCREW
  • 17
    1012894-067 RACK, SUPPORT (REAR/BLACK)
    RACK, SUPPORT (REAR/BLACK)
  • 18
    7517208 SCREW
    SCREW
