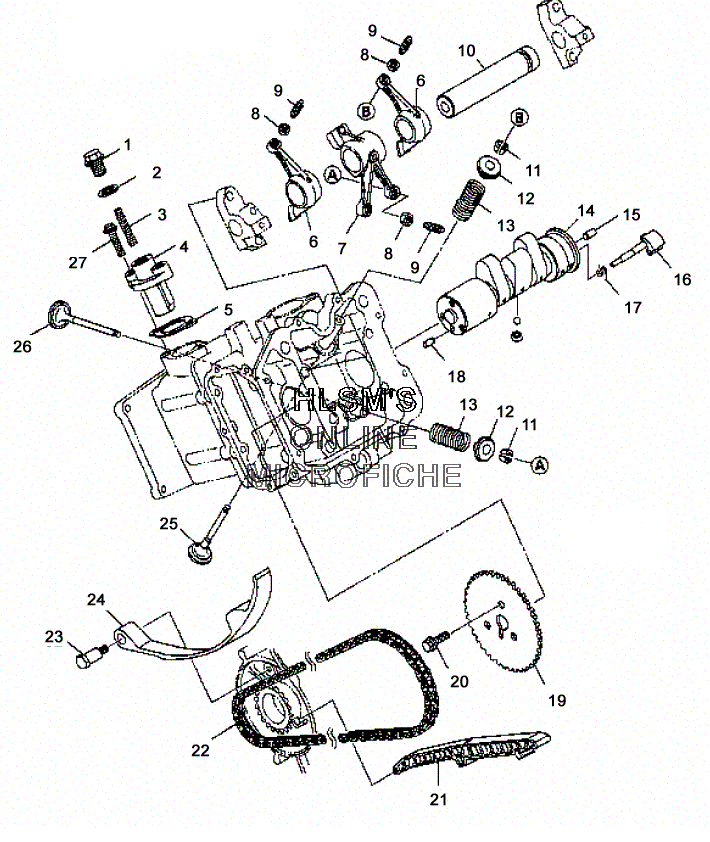

CAMSHAFT W/ VALVE ASSY. для Polaris SPORTSMAN 500 DUSE (A01CH50AD) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    3084845 PLUG
    PLUG
  • 2
    3084920 GASKET, PLUG
    GASKET, PLUG
  • 3
    3086814 SPRING, TENSIONER
    SPRING, TENSIONER
  • 4
    3086813 TENSIONER, ASSY. (INCL. 1-3)
    TENSIONER, ASSY. (INCL. 1-3)
  • 5
    3084922 GASKET, TENSIONER
    GASKET, TENSIONER
  • 6
    3084910 ROCKERARM ASSY., INTAKE (INCL. 8,9)
    ROCKERARM ASSY., INTAKE (INCL. 8,9)
  • 7
    3084913 ROCKERARM ASSY., EXHAUST (INCL. 8,9)
    ROCKERARM ASSY., EXHAUST (INCL. 8,9)
  • 8
    3084912 NUT
    NUT
  • 9
    3084911 SCREW, ADJUSTING
    SCREW, ADJUSTING
  • 10
    3084909 SHAFT, ROCKER
    SHAFT, ROCKER
  • 11
    3084908 COLLET, VALVE
    COLLET, VALVE
  • 12
    3084907 RETAINER, VALVE SPRING
    RETAINER, VALVE SPRING
  • 13
    3084906 SPRING, VALVE
    SPRING, VALVE
  • 14
    3086212 CAMSHAFT (INCL. 15-18)
    CAMSHAFT (INCL. 15-18)
  • 15
    3086838 DOWEL, PIN
    DOWEL, PIN
  • 16
    3085348 LEVER, RELEASE
    LEVER, RELEASE
  • 17
    3085076 SPRING, RETURN
    SPRING, RETURN
  • 18
    3084899 PIN, DOWEL
    PIN, DOWEL
  • 19
    3084914 SPROCKET 2
    SPROCKET 2
  • 20
    3081657 BOLT AND WASHER ASSY.
    BOLT AND WASHER ASSY.
  • 21
    3084916 GUIDE, CHAIN
    GUIDE, CHAIN
  • 22
    3084915 CHAIN, TIMING
    CHAIN, TIMING
  • 23
    3084924 BOLT, PIVOT LEVER
    BOLT, PIVOT LEVER
  • 24
    3084917 LEVER
    LEVER
  • 25
    3085349 VALVE, INTAKE
    VALVE, INTAKE
  • 26
    3084905 VALVE, EXHAUST
    VALVE, EXHAUST
  • 27
    3084874 BOLT, FLANGE
    BOLT, FLANGE
