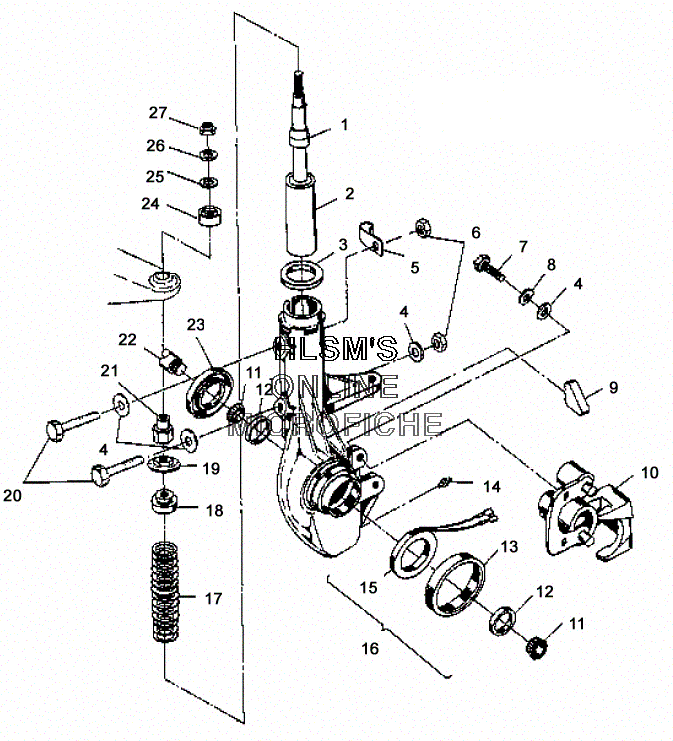

SUSPENSION - FRONT STRUT для Polaris SPORTSMAN 500 DUSE (A01CH50AD) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    5411608 BUMPER-MCU, 17.80MM ID
    BUMPER-MCU, 17.80MM ID
  • 2
    7041761 STRUT (FRONT)
    STRUT (FRONT)
  • 3
    5211115 WASHER, SPRING RETAINER
    WASHER, SPRING RETAINER
  • 4
    7558402 WASHER, STEEL
    WASHER, STEEL
  • 5
    7080573 CLAMP, RUBBER-COATED
    CLAMP, RUBBER-COATED
  • 6
    7542303 NUT FLEX-LOC
    NUT FLEX-LOC
  • 7
    7512365 SCREW, CAP
    SCREW, CAP
  • 8
    7552901 LOCK WASHER
    LOCK WASHER
  • 9
    5810439 RETAINER, WIRE STRUT CAST
    RETAINER, WIRE STRUT CAST
  • 11
    3554509 BEARING, TAPERED ROLLER
    BEARING, TAPERED ROLLER
  • 12
    3554507 BRG, TAPERED ROLL CUP
    BRG, TAPERED ROLL CUP
  • 13
    5222193 SLEEVE, STRUT HUB SEAL
    SLEEVE, STRUT HUB SEAL
  • 14
    7080306 FITTING, LUBE. W/BALL CHECK
    FITTING, LUBE. W/BALL CHECK
  • 15
    2410133 HUB/COIL KIT
    HUB/COIL KIT
  • 16
    2201311 HUBSTRUT, SERVICE (BROWN/HITE/LEFT) (42MM) (INCL. 9,12-15,23)
    HUBSTRUT, SERVICE (BROWN/HITE/LEFT) (42MM) (INCL. 9,12-15,23)
  • 16
    2201312 HUBSTRUT, SERVICE (BROWN/WHITE/RIGHT) (42MM) (INCL. 9,12-15,23)
    HUBSTRUT, SERVICE (BROWN/WHITE/RIGHT) (42MM) (INCL. 9,12-15,23)
  • 17
    7041375-067 SPRING, COIL SHOCK (FRONT/BLACK)
    SPRING, COIL SHOCK (FRONT/BLACK)
  • 18
    5243364 RETAINER, SPRING STRUT
    RETAINER, SPRING STRUT
  • 19
    5432871 PIVOT, BALL BOTTOM
    PIVOT, BALL BOTTOM
  • 20
    7515339 BOLT
    BOLT
  • 21
    5132062 SPACER, STRUT
    SPACER, STRUT
  • 23
    3610028 SEAL, HUB STRUT
    SEAL, HUB STRUT
  • 24
    5432872 PIVOT, BALL TOP
    PIVOT, BALL TOP
  • 25
    5810291 SPACER, RUBBER
    SPACER, RUBBER
  • 26
    7555749 WASHER
    WASHER
  • 27
    7547104 NUT
    NUT
