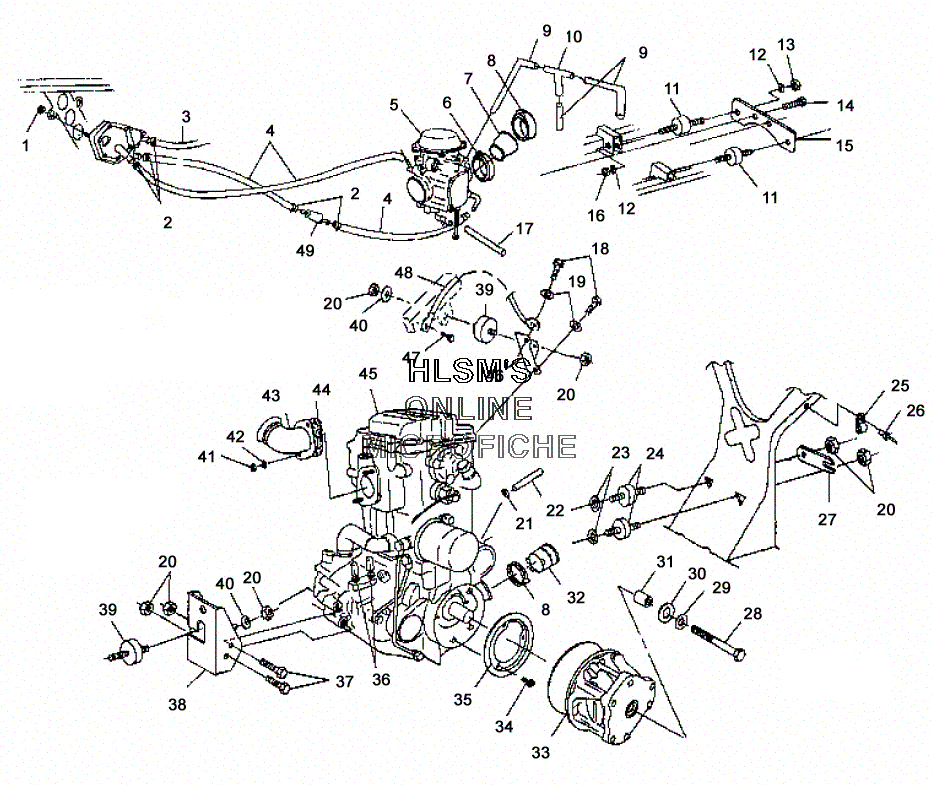

MOUNTING - ENGINE для Polaris SPORTSMAN 500 DUSE (A01CH50AD) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    7546601 NUT, NYLOK
    NUT, NYLOK
  • 2
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 3
    5811490 HOSE (.25 IDX1.75''LG.)
    HOSE (.25 IDX1.75''LG.)
  • 4
    8450040-600 FUEL LINE (1/4 ID 600 CM.) (OPT)
    FUEL LINE (1/4 ID 600 CM.) (OPT)
  • 6
    7080413 CLAMP, BAND NARROW
    CLAMP, BAND NARROW
  • 7
    5410995 BOOT, CARBURETOR
    BOOT, CARBURETOR
  • 8
    7080511 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 9
    8450003-1525 FUEL LINE (1/4 ID 1525 CM.) (OPT)
    FUEL LINE (1/4 ID 1525 CM.) (OPT)
  • 10
    7052075 FITTING, TEE
    FITTING, TEE
  • 11
    3110032 MOUNT, RUBBER
    MOUNT, RUBBER
  • 12
    7552605 WASHER
    WASHER
  • 13
    7542105 NUT, HEX
    NUT, HEX
  • 15
    5211626-067 STRAP, CARBURETOR MOUNT (BLACK)
    STRAP, CARBURETOR MOUNT (BLACK)
  • 16
    7547069 NUTSERT, HEXAGON
    NUTSERT, HEXAGON
  • 17
    8360009-600 FUEL LINE (1/8 ID 600 CM.) (OPT)
    FUEL LINE (1/8 ID 600 CM.) (OPT)
  • 18
    7512315 BOLT
    BOLT
  • 19
    7552901 LOCK WASHER
    LOCK WASHER
  • 20
    7547108 NUT
    NUT
  • 21
    7080694 CLAMP, HOSE SPRING
    CLAMP, HOSE SPRING
  • 23
    7555815 WASHER, FLAT
    WASHER, FLAT
  • 24
    3110046 MOUNT, RUBBER (FRONT)
    MOUNT, RUBBER (FRONT)
  • 25
    7080539 CLAMP, NYLON CABLE
    CLAMP, NYLON CABLE
  • 26
    7621462 RIVET
    RIVET
  • 27
    5224658-067 STRAP, FRAME SUPPORT (BLACK)
    STRAP, FRAME SUPPORT (BLACK)
  • 28
    7512566 BOLT
    BOLT
  • 29
    7575202 WASHER, LOCK
    WASHER, LOCK
  • 30
    5210748 WASHER
    WASHER
  • 31
    5430261 BUSHING, RETAINING BOLT
    BUSHING, RETAINING BOLT
  • 32
    5410421 BOOT, CLUTCH INTAKE
    BOOT, CLUTCH INTAKE
  • 36
    7080474 CLAMP, HOSE
    CLAMP, HOSE
  • 37
    7515417 BOLT
    BOLT
  • 38
    5241150-067 MOUNT, ENGINE (FRONT/BLACK)
    MOUNT, ENGINE (FRONT/BLACK)
  • 39
    3110044 MOUNT, RUBBER TOP
    MOUNT, RUBBER TOP
  • 40
    7555801 WASHER
    WASHER
  • 43
    1260771-029 MANIFOLD (BLACK)
    MANIFOLD (BLACK)
  • 45
    3085556 SHORT BLOCK (EH50PLE09) SEE NOTE:
    SHORT BLOCK (EH50PLE09) SEE NOTE:
  • 46
    5241453-067 MOUNT, ENGINE TOP (BLACK)
    MOUNT, ENGINE TOP (BLACK)
  • 47
    7512232 BOLT
    BOLT
  • 48
    4010132 CABLE, GND ENGINE
    CABLE, GND ENGINE
  • 49
    2530009 FILTER, SMALL IN-LINE
    FILTER, SMALL IN-LINE
