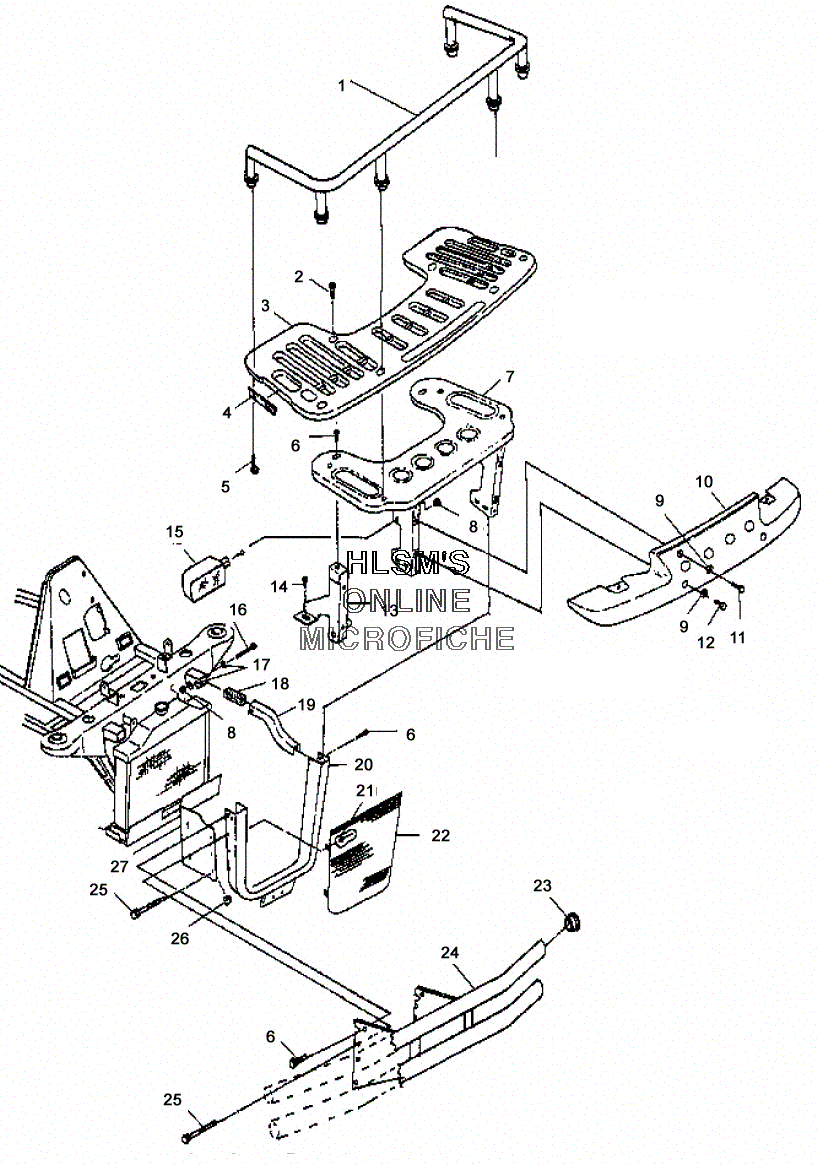

RACK AND BUMPER MOUNTING - FRONT для Polaris SPORTSMAN 500 DUSE (A01CH50AD) - 2001 года выпуска
-
№АртикулНазвание
-
11040526-067 RACK EXTENTION, 3.5'' (FRONT)RACK EXTENTION, 3.5'' (FRONT)
-
27517685 SCREWSCREW
-
32670180 RACK (FRONT/BLACK) (INCL. REF. 4 AND WARNING DECAL)RACK (FRONT/BLACK) (INCL. REF. 4 AND WARNING DECAL)
-
42670071 REFLECTOR, AMBERREFLECTOR, AMBER
-
57517208 SCREWSCREW
-
67515399 SCREWSCREW
-
72200775 WELD, RACK SUPPORT (FRONT/BLACK)WELD, RACK SUPPORT (FRONT/BLACK)
-
87542324 NUTNUT
-
97555954 WASHERWASHER
-
105432155-070 BUMPER (BLACK)BUMPER (BLACK)
-
117515391 BOLTBOLT
-
127515390 BOLTBOLT
-
131013210-067 SUPPORT RACK (FRONT/LEFT/BLACK)SUPPORT RACK (FRONT/LEFT/BLACK)
-
131013211-067 SUPPORT RACK (FRONT/RIGHT/BLACK)SUPPORT RACK (FRONT/RIGHT/BLACK)
-
147512232 BOLTBOLT
-
152431014 HEADLIGHT ASSY., 35 W (LEFT)HEADLIGHT ASSY., 35 W (LEFT)
-
152431015 HEADLIGHT ASSY., 35 W (RIGHT)HEADLIGHT ASSY., 35 W (RIGHT)
-
154030059 BULB, 27W.HOBBS HEADLIGHTBULB, 27W.HOBBS HEADLIGHT
-
167515382 BOLTBOLT
-
177558402 WASHER, STEELWASHER, STEEL
-
185810467 PLUG, FRAMEPLUG, FRAME
-
195244623-067 EXTENSION, FRAME (LEFT/BLACK)EXTENSION, FRAME (LEFT/BLACK)
-
195244624-067 EXTENSION, FRAME (RIGHT/BLACK)EXTENSION, FRAME (RIGHT/BLACK)
-
205241583-067 WELD, BRUSH GUARD (BLACK)WELD, BRUSH GUARD (BLACK)
-
217621330 RIVET, POPRIVET, POP
-
225240591-067 GRILL, BRUSH GUARD (BLACK)GRILL, BRUSH GUARD (BLACK)
-
235433305 CAP, BUMPER ENDCAP, BUMPER END
-
245243377-067 BUMPER (FRONT/BLACK)BUMPER (FRONT/BLACK)
-
257512097 SCREWSCREW
-
267670094 NUTNUT
-
275433315 SHIELD, RADIATOR SIDE (LEFT)SHIELD, RADIATOR SIDE (LEFT)
-
275433316 SHIELD, RADIATOR SIDE (RIGHT)SHIELD, RADIATOR SIDE (RIGHT)
