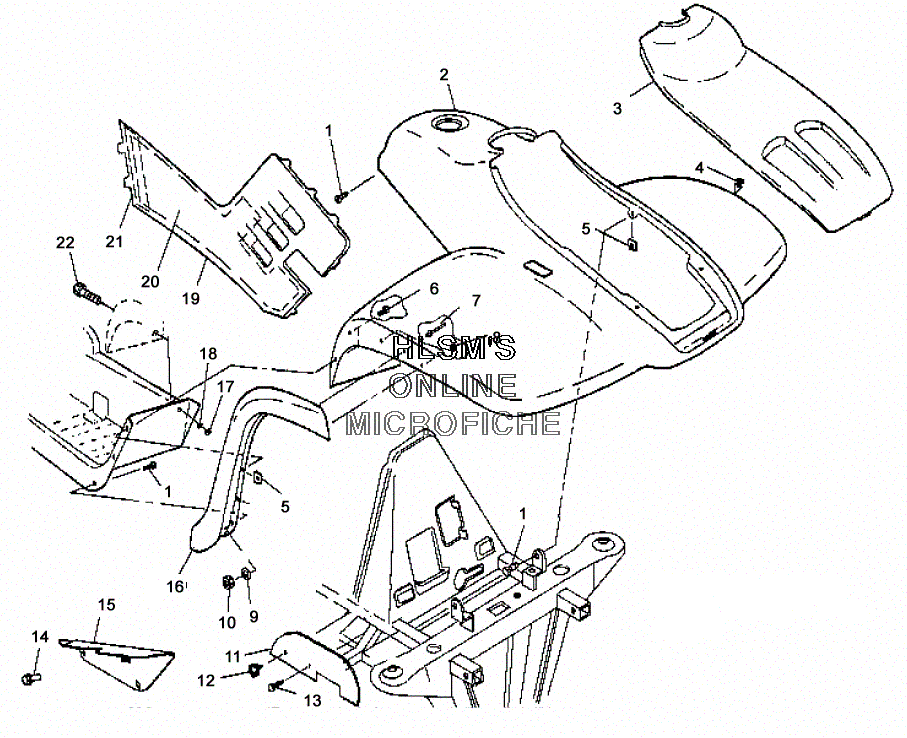

FENDER - FRONT W/ SIDE PANELS для Polaris SPORTSMAN 500 DUSE (A01CH50AD) - 2001 года выпуска`
-
№АртикулНазвание
-
17512232 BOLTBOLT
-
22632307-315 CAB, SERVICE WET CAMO (FRONT)CAB, SERVICE WET CAMO (FRONT)
-
35433944-315A COVER, WET CAMO (FRONT)COVER, WET CAMO (FRONT)
-
47670085 CLIP, SPRINGCLIP, SPRING
-
57670057 NUT, SPEEDNUT, SPEED
-
67517312 SCREWSCREW
-
77661645 RIVETRIVET
-
87670068 NUT, PUSH-ONNUT, PUSH-ON
-
97555931 WASHERWASHER
-
107542122 NUT, LOCKNUT, LOCK
-
115811917 SHIELD, DEFLECTORSHIELD, DEFLECTOR
-
124020139 CLIP, PLASTICCLIP, PLASTIC
-
137670088 CLIP, PLASTIC DART NYLONCLIP, PLASTIC DART NYLON
-
147515194 SCREWSCREW
-
155244913-067 GUARD, SPLASH (LEFT/BLACK)GUARD, SPLASH (LEFT/BLACK)
-
155244914-067 GUARD, SPLASH (RIGHT/BLACK)GUARD, SPLASH (RIGHT/BLACK)
-
165431798-070 GUARD, MUD (FRONT/LEFT/BLACK)GUARD, MUD (FRONT/LEFT/BLACK)
-
165431799-070 GUARD, MUD (FRONT/RIGHT/BLACK)GUARD, MUD (FRONT/RIGHT/BLACK)
-
177541925 NUTNUT
-
187555792 WASHERWASHER
-
192632288-315 ASSY. PANEL/FOAM, WET CAMO (LEFT)ASSY. PANEL/FOAM, WET CAMO (LEFT)
-
192632272-315 PANEL ASSY., FOIL WET CAMO (RIGHT)PANEL ASSY., FOIL WET CAMO (RIGHT)
-
205810996 FOIL, FOAM SIDEPANELFOIL, FOAM SIDEPANEL
-
215811491 FOIL, SIDEPANEL GEN IV (RIGHT)FOIL, SIDEPANEL GEN IV (RIGHT)
-
227512085 SCREWSCREW
