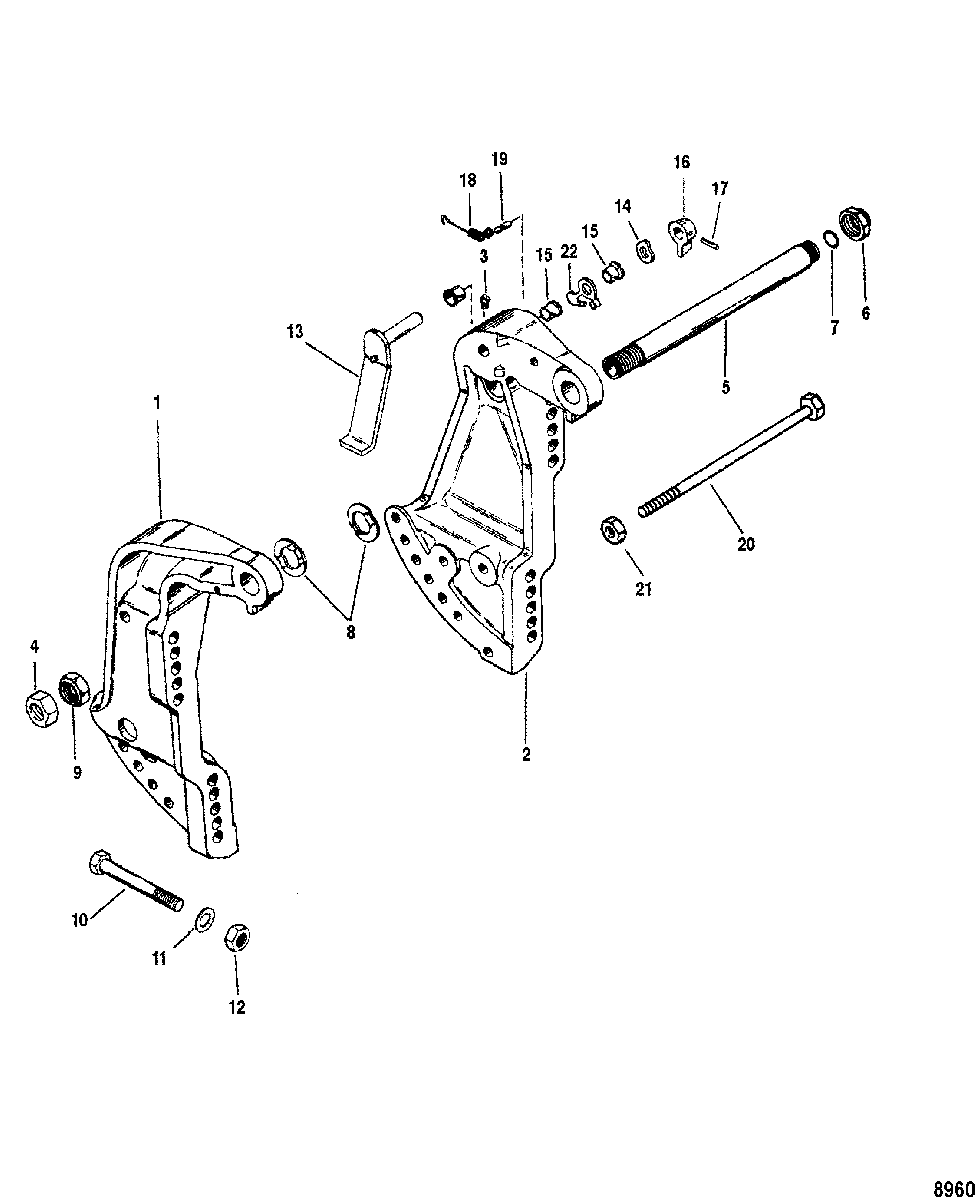

TRANSOM BRACKETS для Mercury - V-175XRI (EFI) 0D000750 THRU 0D081999

  • №
    Артикул
    Название
  • 1
    3401-8718F7 TRANSOM BRACKET (STARBOARD) (BLACK)
    TRANSOM BRACKET (STARBOARD) (BLACK)
  • 1
    3401-8718F8 TRANSOM BRACKET (STARBOARD) (GRAY)
    TRANSOM BRACKET (STARBOARD) (GRAY)
  • 2
    3400-8716A8 TRANSOM BRACKET (PORT) (BLACK)
    TRANSOM BRACKET (PORT) (BLACK)
  • 2
    3400-8716A9 TRAMSOM BRACKET (PORT) (GRAY)
    TRAMSOM BRACKET (PORT) (GRAY)
  • 3
    22-98727 FITTING, Grease
    FITTING, Grease
  • 4
    11-8M0041651 NUT, (.875-14)
    NUT, (.875-14)
  • 5
    826125A1 TILT TUBE
    TILT TUBE
  • 6
    11-82671327 NUT, TILT TUBE (BLACK)
    NUT, TILT TUBE (BLACK)
  • 6
    11-82671327 NUT, TILT TUBE (GRAY)
    NUT, TILT TUBE (GRAY)
  • 7
    25-45711 O-RING, (.612 x .103)
    O-RING, (.612 x .103)
  • 8
    13-88750 WASHER
    WASHER
  • 9
    11-858869 NUT, (.875-14), TILT TUBE
    NUT, (.875-14), TILT TUBE
  • 10
    10-677551 SCREW, (.500-20 x 4.500), TRANSOM BRACKET TO TRANSOM
    SCREW, (.500-20 x 4.500), TRANSOM BRACKET TO TRANSOM
  • 11
    12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel, TRANSOM BRACKET BOLT
    WASHER, (1.5 x 3.05 x 0.13) Stainless Steel, TRANSOM BRACKET BOLT
  • 12
    11-91962 NUT, (.500-20), TRANSOM BRACKET BOLT
    NUT, (.500-20), TRANSOM BRACKET BOLT
  • 13
    8M0115104 LEVER ASSEMBLY
    LEVER ASSEMBLY
  • 14
    13-99611 WAVE WASHER
    WAVE WASHER
  • 15
    23-65830 NYLINER
    NYLINER
  • 16
    99633 KNOB (BLACK)
    KNOB (BLACK)
  • 16
    99633 KNOB (GRAY)
    KNOB (GRAY)
  • 17
    17-99615 PIN, Groove
    PIN, Groove
  • 18
    24-99622 SPRING
    SPRING
  • 19
    17-99604 PIN, Groove
    PIN, Groove
  • 20
    10-96930A1 BOLT ASSEMBLY, TILT LOCK
    BOLT ASSEMBLY, TILT LOCK
  • 21
    11-23161 NUT, (.375-24), BOLT
    NUT, (.375-24), BOLT
  • 22
    814207 STOP
    STOP
