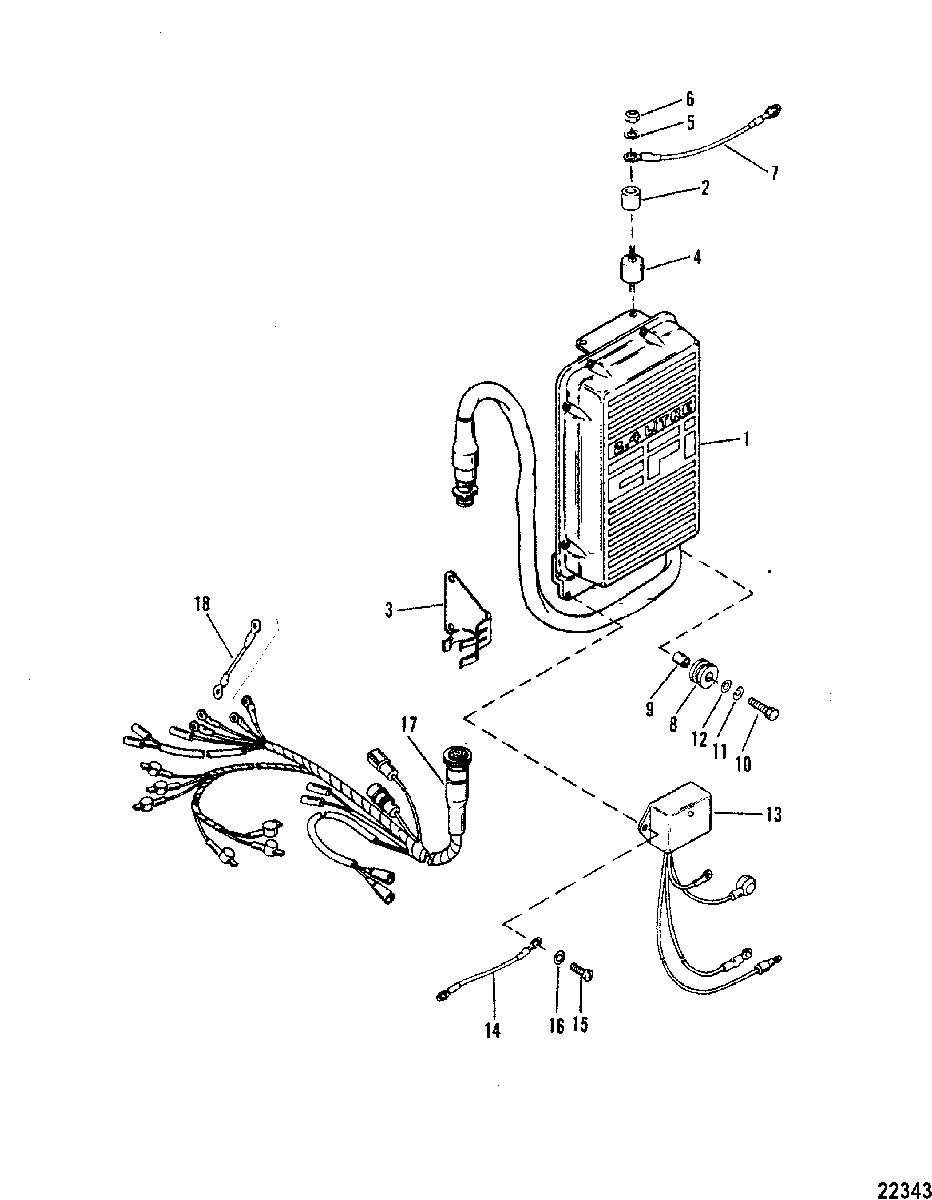

E.C.U. ASSEMBLY для Mercury - V-175XRI (EFI) 0D000750 THRU 0D081999

  • №
    Артикул
    Название
  • 1
    824003T14 E.C.U. ASSEMBLY (175)
    E.C.U. ASSEMBLY (175)
  • 1
    824003T16 E.C.U. ASSEMBLY (200)
    E.C.U. ASSEMBLY (200)
  • 2
    23-34948 SPACER
    SPACER
  • 3
    54-146951 CLIP
    CLIP
  • 4
    90435 MOUNT, COWL MOUNTING BRACKET
    MOUNT, COWL MOUNTING BRACKET
  • 5
    12-21249 WASHER, MOUNT ATTACHING
    WASHER, MOUNT ATTACHING
  • 6
    11-8267089 NUT, (.250-28), MOUNT ATTACHING
    NUT, (.250-28), MOUNT ATTACHING
  • 7
    84-88807A19 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 8
    14637 GROMMET
    GROMMET
  • 9
    23-14636 BUSHING
    BUSHING
  • 10
    10-28667 SCREW, (.250-20 x 1.00)
    SCREW, (.250-20 x 1.00)
  • 11
    13-26992 LOCKWASHER, (.250)
    LOCKWASHER, (.250)
  • 12
    12-65567 WASHER, (.265 x .750 x .048)
    WASHER, (.265 x .750 x .048)
  • 13
    13202A2 WATER SENSOR MODULE ASSEMBLY
    WATER SENSOR MODULE ASSEMBLY
  • 14
    84-88807A18 CABLE ASSEMBLY (BLACK)
    CABLE ASSEMBLY (BLACK)
  • 15
    10-37571 SCREW, (.190-32 x .500), WATER SENSOR MODULE
    SCREW, (.190-32 x .500), WATER SENSOR MODULE
  • 16
    12-89302 WASHER, (.203 x .406 x .040), WATER SENSOR MODULE SCREW
    WASHER, (.203 x .406 x .040), WATER SENSOR MODULE SCREW
  • 17
    84-98866A14 WIRING HARNESS, E.C.U. AND INJECTORS
    WIRING HARNESS, E.C.U. AND INJECTORS
  • 18
    84-87895A4 CABLE (175)
    CABLE (175)
