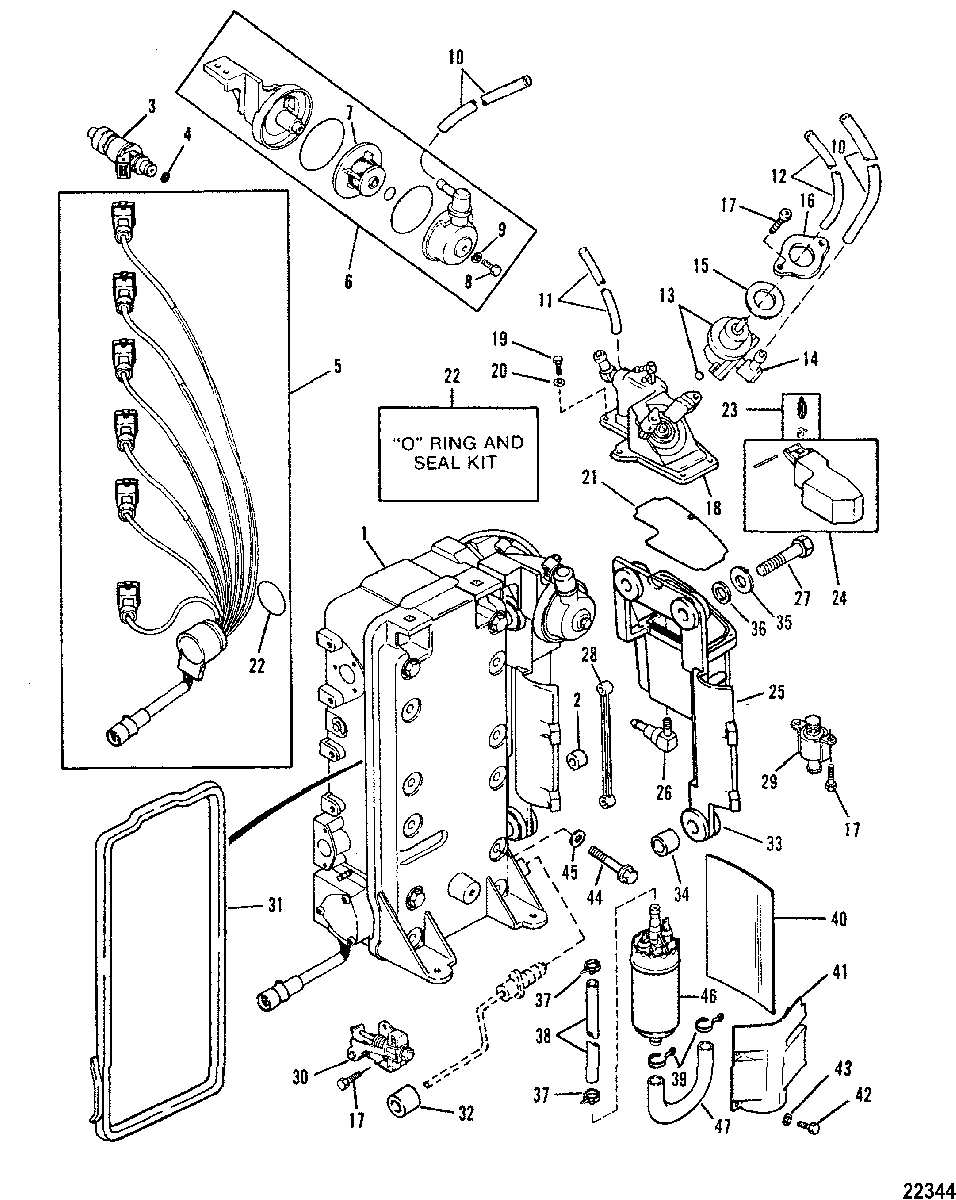

FUEL MANAGEMENT SYSTEM для Mercury - V-175XRI (EFI) 0D000750 THRU 0D081999

  • №
    Артикул
    Название
  • 1
    14817A19 FUEL MANAGEMENT ASSEMBLY
    FUEL MANAGEMENT ASSEMBLY
  • 2
    67748 ROLLER, CAM
    ROLLER, CAM
  • 3
    18715T FUEL INJECTOR
    FUEL INJECTOR
  • 4
    35-17422 FILTER, INJECTOR
    FILTER, INJECTOR
  • 5
    84-15443 HARNESS KIT
    HARNESS KIT
  • 6
    35-15442 FUEL FILTER KIT
    FUEL FILTER KIT
  • 7
    35-150282 FUEL FILTER
    FUEL FILTER
  • 8
    10-400034 SCREW, (M5 x 14), FILTER COVER
    SCREW, (M5 x 14), FILTER COVER
  • 9
    13-400255 LOCKWASHER, (M5), COVER SCREW
    LOCKWASHER, (M5), COVER SCREW
  • 10
    32-1350385 HOSE (1/2" O.D.)
    HOSE (1/2" O.D.)
  • 11
    32-9912688 TUBING, (36.00 Inches Bulk) (1/8" I.D.)
    TUBING, (36.00 Inches Bulk) (1/8" I.D.)
  • 12
    32-892024122 TUBING, (20.00 Feet Bulk) (3/32" I.D.)
    TUBING, (20.00 Feet Bulk) (3/32" I.D.)
  • 13
    15027 REGULATOR, PRESSURE
    REGULATOR, PRESSURE
  • 14
    814233 ELBOW KIT
    ELBOW KIT
  • 15
    27-18791 GASKET, PRESSURE REGULATOR
    GASKET, PRESSURE REGULATOR
  • 16
    814012 PLATE, PRESSURE REGULATOR
    PLATE, PRESSURE REGULATOR
  • 17
    10-814076 SCREW
    SCREW
  • 18
    814010 COVER KIT
    COVER KIT
  • 19
    10-4001987 SCREW, (M4 x 16), COVER TO SEPARATOR
    SCREW, (M4 x 16), COVER TO SEPARATOR
  • 20
    13-26995 LOCKWASHER, (#8), COVER SCREW
    LOCKWASHER, (#8), COVER SCREW
  • 21
    26-18790 SEAL, VAPOR SEPARATOR
    SEAL, VAPOR SEPARATOR
  • 22
    15029 O-RING AND SEAL KIT
    O-RING AND SEAL KIT
  • 23
    15446 FLOAT VALVE KIT
    FLOAT VALVE KIT
  • 24
    15445 FLOAT KIT
    FLOAT KIT
  • 25
    814011 BODY KIT
    BODY KIT
  • 26
    21-424811 CHECK VALVE
    CHECK VALVE
  • 27
    10-4000332 SCREW, (M6 x 35), SEPARATOR
    SCREW, (M6 x 35), SEPARATOR
  • 28
    15444 LINK
    LINK
  • 29
    21-18241 CHECK VALVE
    CHECK VALVE
  • 30
    814077 VALVE, Shut-Off
    VALVE, Shut-Off
  • 31
    26-18792 SEAL, INJECTOR MANIFOLD
    SEAL, INJECTOR MANIFOLD
  • 32
    23-19275 SPACER
    SPACER
  • 34
    23-814913 SPACER
    SPACER
  • 35
    12-35280 WASHER, (.255 x .620 x .030) (LARGE)
    WASHER, (.255 x .620 x .030) (LARGE)
  • 36
    12-69057 WASHER (SMALL)
    WASHER (SMALL)
  • 37
    54-13791 CLAMP, (15.7), HOSE
    CLAMP, (15.7), HOSE
  • 38
    32-1350385 HOSE (1-3/4")
    HOSE (1-3/4")
  • 39
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 40
    14639 BLANKET, FUEL PUMP
    BLANKET, FUEL PUMP
  • 41
    14640T COVER, FUEL PUMP
    COVER, FUEL PUMP
  • 42
    10-32228 SCREW, (#10-32 x .625)
    SCREW, (#10-32 x .625)
  • 43
    13-26996 LOCKWASHER, (#10)
    LOCKWASHER, (#10)
  • 44
    10-845674 SCREW, (.250-20 x 4)
    SCREW, (.250-20 x 4)
  • 45
    12-29245 WASHER, (.281 x .500 x .060)
    WASHER, (.281 x .500 x .060)
  • 46
    14307T01 FUEL PUMP
    FUEL PUMP
  • 47
    32-146332 HOSE
    HOSE
