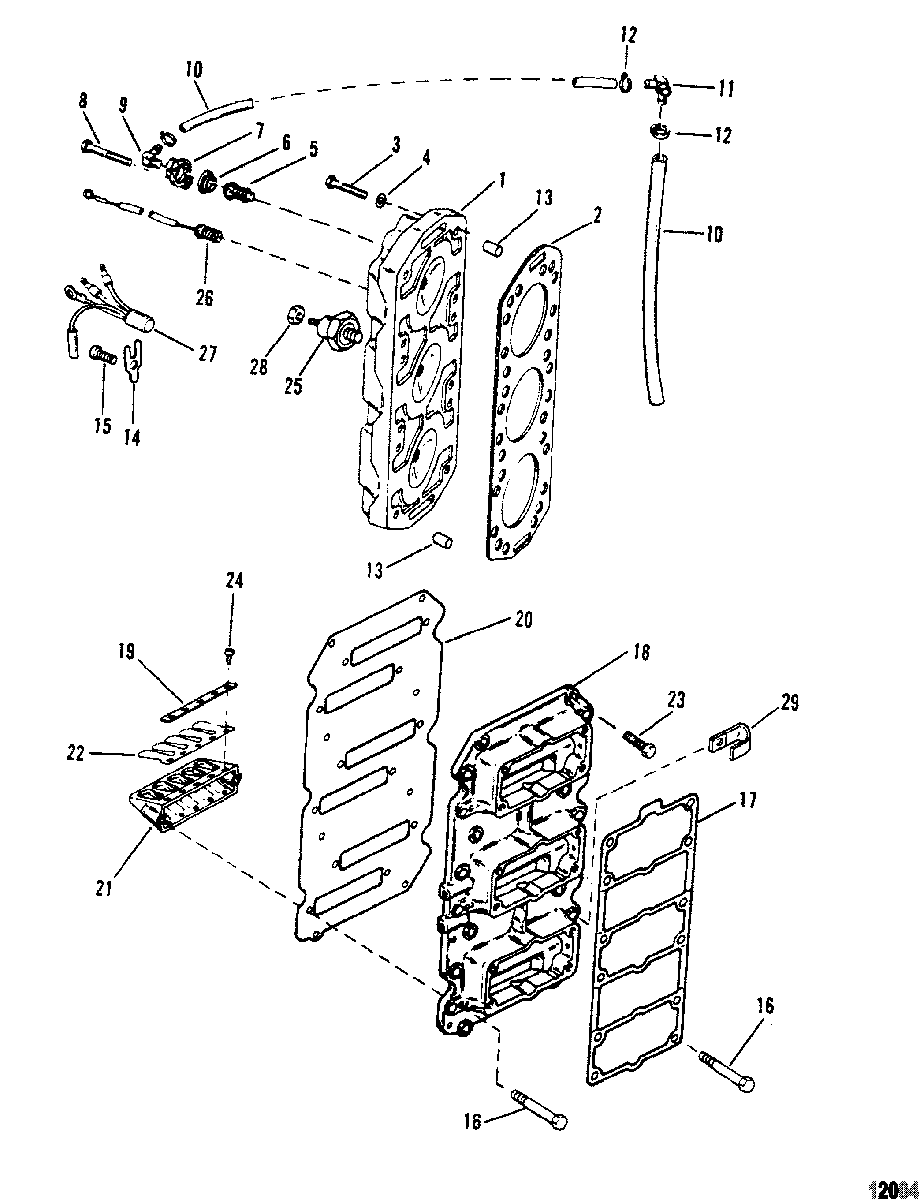

REED BLOCK AND CYLINDER HEAD для Mercury - V-175XRI (EFI) 0D000750 THRU 0D081999

  • №
    Артикул
    Название
  • 1
    18789F1 CYLINDER HEAD (175)
    CYLINDER HEAD (175)
  • 1
    18488F2 CYLINDER HEAD (200)
    CYLINDER HEAD (200)
  • 2
    27-18786T GASKET (175)
    GASKET (175)
  • 2
    27-822844T05 GASKET (200)
    GASKET (200)
  • 3
    10-98534 SCREW, (.375-16 x 2.30), CYLINDER HEAD
    (QTY. OF 24 ON 175)
    SCREW, (.375-16 x 2.30), CYLINDER HEAD
    (QTY. OF 24 ON 175)
  • 3
    10-13450 SCREW, (.375-16 x 2.30) (SPECIAL - 200)
    SCREW, (.375-16 x 2.30) (SPECIAL - 200)
  • 4
    12-25909 WASHER, (.406 x .812 x .065), CYLINDER HEAD SCREW
    WASHER, (.406 x .812 x .065), CYLINDER HEAD SCREW
  • 5
    75692 THERMOSTAT
    THERMOSTAT
  • 6
    27-62386001 GASKET, THERMOSTAT
    GASKET, THERMOSTAT
  • 7
    90390A1 COVER KIT, THERMOSTAT
    COVER KIT, THERMOSTAT
  • 8
    10-35386 SCREW, (.312-18 x 1.00), THERMOSTAT COVER
    SCREW, (.312-18 x 1.00), THERMOSTAT COVER
  • 9
    22-687271 FITTING, (.250-18) 90 Degree - Brass, ELBOW - WATER HOSES
    FITTING, (.250-18) 90 Degree - Brass, ELBOW - WATER HOSES
  • 10
    32-77653101 HOSE, (24.500 Inches Bulk), WATER DISTRIBUTION
    HOSE, (24.500 Inches Bulk), WATER DISTRIBUTION
  • 11
    22-68728 FITTING, THERMOSTAT COVER
    FITTING, THERMOSTAT COVER
  • 12
    54-816311T TIE STRAP, (8.00 Inches), WATER HOSES
    TIE STRAP, (8.00 Inches), WATER HOSES
  • 13
    17-63779 PIN, Dowel (.250 x .625)
    PIN, Dowel (.250 x .625)
  • 14
    137151 RETAINER, SENSOR AND SENDER
    RETAINER, SENSOR AND SENDER
  • 15
    10-98257 SCREW, (.312-18 x .500), RETAINER
    SCREW, (.312-18 x .500), RETAINER
  • 16
    10-92160 SCREW, (.250-20 x .750) (175)
    SCREW, (.250-20 x .750) (175)
  • 16
    10-90197 SCREW, (.250-20 x 1.125) (175)
    SCREW, (.250-20 x 1.125) (175)
  • 16
    10-28668 SCREW, (.250-20 x .875), REED BLOCK ATTACHING (200)
    SCREW, (.250-20 x .875), REED BLOCK ATTACHING (200)
  • 17
    27-167371 GASKET, ADAPTOR PLATE
    GASKET, ADAPTOR PLATE
  • 18
    17735A2 ADAPTOR PLATE (175)
    ADAPTOR PLATE (175)
  • 18
    12124A3 PLATE ASSEMBLY (200)
    PLATE ASSEMBLY (200)
  • 19
    961832 REED CLAMP (175)
    REED CLAMP (175)
  • 19
    903911 REED CLAMP (200)
    REED CLAMP (200)
  • 20
    27-146972 GASKET (175)
    GASKET (175)
  • 20
    27-883775 GASKET (200)
    GASKET (200)
  • 21
    75953 REED BLOCK (175)
    REED BLOCK (175)
  • 21
    87692 REED BLOCK (200)
    REED BLOCK (200)
  • 22
    34-75362A1 REED ASSEMBLY (175)
    REED ASSEMBLY (175)
  • 22
    34-19719A1 REED ASSEMBLY (200)
    REED ASSEMBLY (200)
  • 23
    10-28668 SCREW, (.250-20 x .875), ADAPTOR PLATE
    SCREW, (.250-20 x .875), ADAPTOR PLATE
  • 24
    10-823588 SCREW, (8-32 x .187), REEDS TO REED BLOCK
    (QTY. OF 60 ON 175)
    SCREW, (8-32 x .187), REEDS TO REED BLOCK
    (QTY. OF 60 ON 175)
  • 25
    825164A1 DETONATION SENSOR (200)
    DETONATION SENSOR (200)
  • 26
    97465 TEMPERATURE SENDER (STARBOARD)
    TEMPERATURE SENDER (STARBOARD)
  • 27
    13536A6 TEMPERATURE SENSOR (PORT)
    TEMPERATURE SENSOR (PORT)
  • 28
    11-45076 NUT, (#10-32) (200)
    NUT, (#10-32) (200)
  • 29
    54-55098 J CLIP (200)
    J CLIP (200)
  • -
    27-815791A92 GASKET SET
    (200)
    GASKET SET
    (200)
  • -
    27-815791A92 GASKET SET
    (175)
    GASKET SET
    (175)
