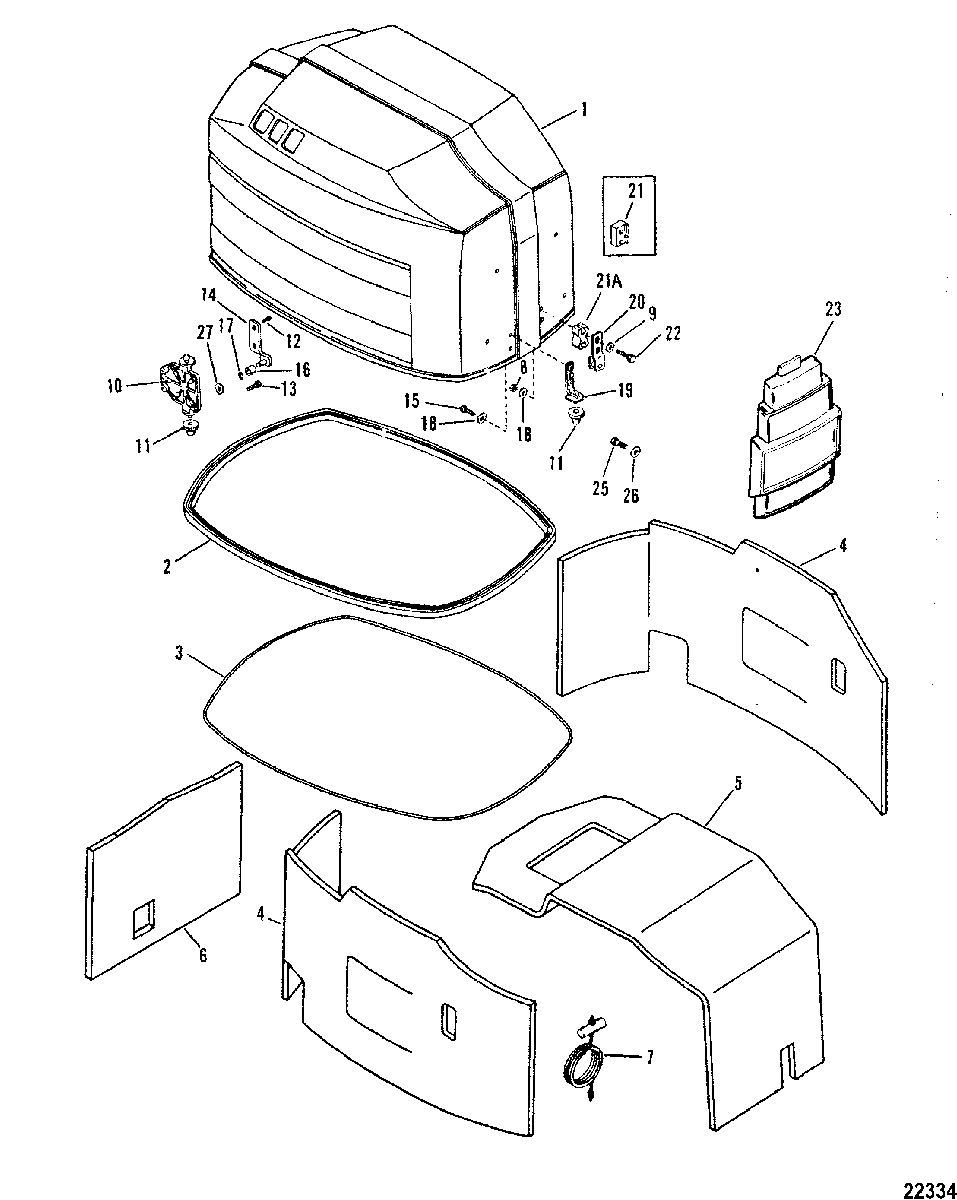

TOP COWL AND FRONT SHIELD для Mercury - V-175XRI (EFI) 0D000750 THRU 0D081999

  • №
    Артикул
    Название
  • 1
    2196-9742T92 TOP COWL ASSEMBLY (BLACK)(Without Decals)
    TOP COWL ASSEMBLY (BLACK)(Without Decals)
  • 1
    2196-9743T10 TOP COWL ASSEMBLY (GRAY)(Without Decals)
    TOP COWL ASSEMBLY (GRAY)(Without Decals)
  • 2
    812784 SEAL
    SEAL
  • 3
    815478 SEAL
    SEAL
  • 4
    815225 SOUND BLANKET (SIDE)
    (USE WITHOUT DEFLECTORS)
    SOUND BLANKET (SIDE)
    (USE WITHOUT DEFLECTORS)
  • 5
    815226 SOUND BLANKET (TOP)
    (USE WITHOUT DEFLECTORS)
    SOUND BLANKET (TOP)
    (USE WITHOUT DEFLECTORS)
  • 4/5
    815225A1 SOUND BLANKET KIT
    (USE W/DEFLECTORS)
    SOUND BLANKET KIT
    (USE W/DEFLECTORS)
  • 6
    815227 SOUND BLANKET, FRONT
    SOUND BLANKET, FRONT
  • 7
    47341A11 ROPE AND HANDLE KIT
    MANUAL STARTING
    ROPE AND HANDLE KIT
    MANUAL STARTING
  • 8
    11-815848 NUT, (.312)
    NUT, (.312)
  • 9
    12-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel
    WASHER, (.323 x .563 x .063) Stainless Steel
  • 10
    184741 BRACKET, REAR
    BRACKET, REAR
  • 11
    25-18506001 GROMMET
    GROMMET
  • 12
    10-28636 SCREW, (.250-20 x .750), REAR BRACKET
    SCREW, (.250-20 x .750), REAR BRACKET
  • 13
    10-816992 SCREW
    SCREW
  • 14
    813096A2 HOOK
    HOOK
  • 15
    10-73286 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 16
    815263 ROLLER
    ROLLER
  • 17
    53-13194 RING, Retaining
    RING, Retaining
  • 18
    12-56720 WASHER, (.330 x .750 x .060)
    WASHER, (.330 x .750 x .060)
  • 19
    187021 LOCATOR
    LOCATOR
  • 20
    893763 BRACKET ASSEMBLY, Latch Roller
    BRACKET ASSEMBLY, Latch Roller
  • 21
    813076A2 SPACER (OLD DESIGN)
    SPACER (OLD DESIGN)
  • 21A
    816838 SPACER
    SPACER
  • 22
    10-31984 SCREW, (.312-18 x 1.375)
    SCREW, (.312-18 x 1.375)
  • 22
    10-69267 SCREW, (.312-18 x 1.750)
    SCREW, (.312-18 x 1.750)
  • 23
    18755A1 FRONT SHIELD ASSEMBLY (BLACK)(Without Decals)
    FRONT SHIELD ASSEMBLY (BLACK)(Without Decals)
  • 23
    18755A2 FRONT SHIELD ASSEMBLY (GRAY)(Without Decals)
    FRONT SHIELD ASSEMBLY (GRAY)(Without Decals)
  • 25
    10-77137 SCREW, (.190-16 x .620)
    SCREW, (.190-16 x .620)
  • 26
    12-56681 WASHER, (.203 x .500 x .032)
    WASHER, (.203 x .500 x .032)
  • 27
    12-36001 WASHER
    WASHER
