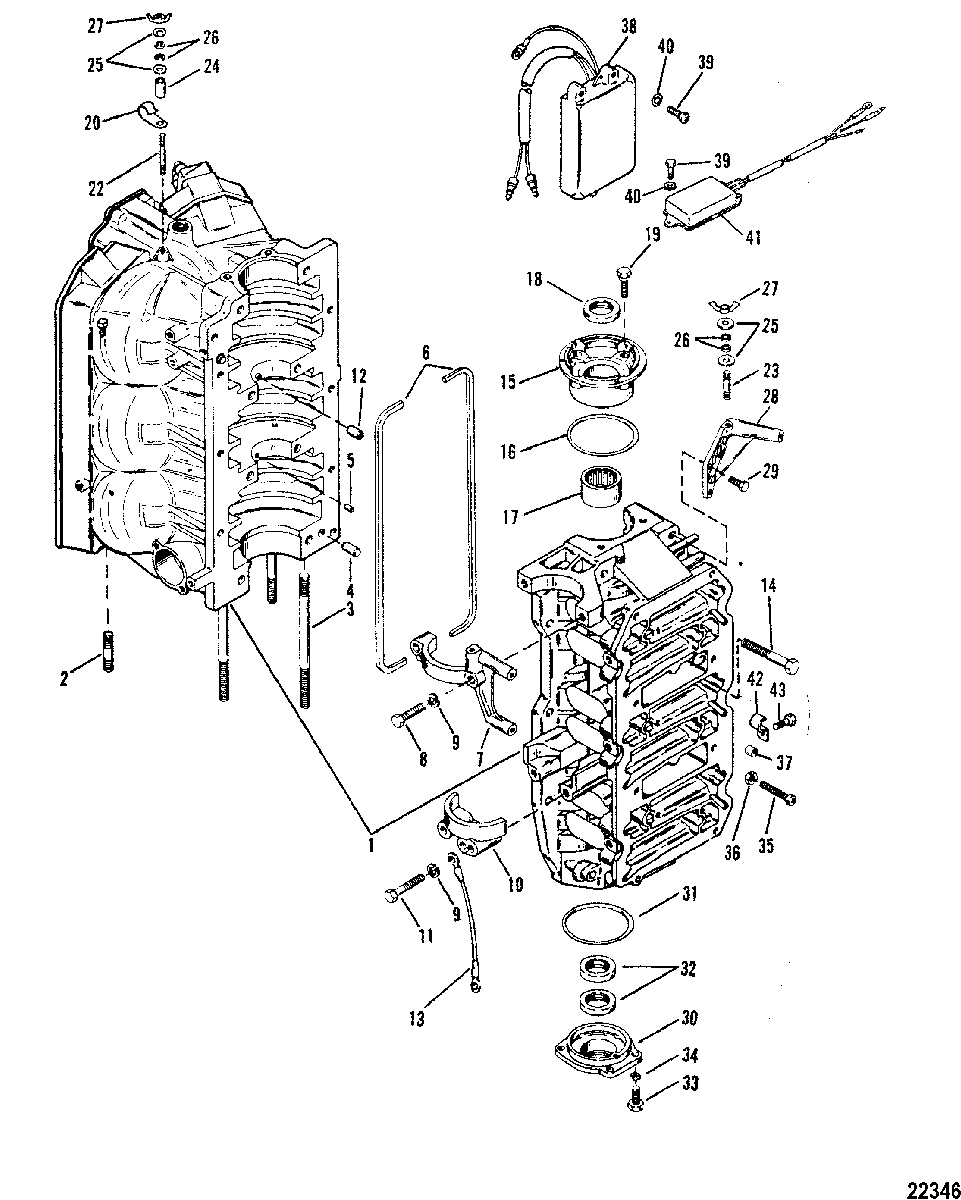

CYLINDER BLOCK AND END CAPS для Mercury - V-175XRI (EFI) 0D000750 THRU 0D081999

  • №
    Артикул
    Название
  • 1
    884-9764T12 CYLINDER BLOCK (175)
    CYLINDER BLOCK (175)
  • 1
    884-9763T6 CYLINDER BLOCK (200)
    CYLINDER BLOCK (200)
  • 2
    16-8M0034455 STUD, POWERHEAD (1-3/4")
    STUD, POWERHEAD (1-3/4")
  • 2
    16-76175 STUD, POWERHEAD (1-7/8")
    STUD, POWERHEAD (1-7/8")
  • 3
    16-670654 STUD, POWERHEAD (5-1/2")
    STUD, POWERHEAD (5-1/2")
  • 3
    16-8M0034454 STUD, POWERHEAD (6-3/4")
    STUD, POWERHEAD (6-3/4")
  • 4
    17-43044 PIN, Dowel, LOCATING
    PIN, Dowel, LOCATING
  • 5
    17-8M0036405 PIN (BEARING RACE)
    PIN (BEARING RACE)
  • 6
    27-11338 GASKET, SEALING
    GASKET, SEALING
  • 7
    8M0088723 COVER, STARTER MOTOR (UPPER)
    COVER, STARTER MOTOR (UPPER)
  • 8
    10-73657 SCREW, (.312-18 x 1.50), COVER TO CRANKCASE
    SCREW, (.312-18 x 1.50), COVER TO CRANKCASE
  • 9
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 10
    76867 COVER, STARTER MOTOR (LOWER)
    COVER, STARTER MOTOR (LOWER)
  • 11
    10-815549 SCREW, (.312-18 x 2), COVER TO CRANKCASE
    SCREW, (.312-18 x 2), COVER TO CRANKCASE
  • 12
    23-99448 BUSHING
    BUSHING
  • 13
    84-88807A20 CABLE ASSEMBLY, COVER
    CABLE ASSEMBLY, COVER
  • 14
    10-66717 SCREW, (.375-16 x 3.250)
    SCREW, (.375-16 x 3.250)
  • 14
    10-74824 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 15
    1159-858521T1 END CAP ASSEMBLY, Upper
    END CAP ASSEMBLY, Upper
  • 16
    25-54029 O-RING, (2.800 x .103), END CAP
    O-RING, (2.800 x .103), END CAP
  • 17
    31-16756A4 BEARING ASSEMBLY, Roller, END CAP
    BEARING ASSEMBLY, Roller, END CAP
  • 18
    26-41953 SEAL, END CAP
    SEAL, END CAP
  • 19
    10-30225 SCREW AND LOCKWASHER, (.312-18 x 1.00)
    SCREW AND LOCKWASHER, (.312-18 x 1.00)
  • 20
    54-63153 J CLIP
    J CLIP
  • 22
    16-15094 STUD, (.190-32 x 1.870)
    STUD, (.190-32 x 1.870)
  • 23
    16-8M0034435 STUD, (#10-32 x 1.00), FLYWHEEL COVER TO BRACKET
    STUD, (#10-32 x 1.00), FLYWHEEL COVER TO BRACKET
  • 24
    23-67269 SPACER, FLYWHEEL COVER STUD
    SPACER, FLYWHEEL COVER STUD
  • 25
    12-49221 WASHER, FLYWHEEL COVER STUD
    WASHER, FLYWHEEL COVER STUD
  • 26
    12-72761 WASHER, (.203 x .562 x .060), FLYWHEEL COVER STUD
    WASHER, (.203 x .562 x .060), FLYWHEEL COVER STUD
  • 27
    11-816874 WING NUT, (#10-32), FLYWHEEL COVER STUD
    WING NUT, (#10-32), FLYWHEEL COVER STUD
  • 28
    422482 BRACKET, FLYWHEEL COVER
    BRACKET, FLYWHEEL COVER
  • 29
    10-49668 SCREW, (.250-20 x .750), BRACKET TO CRANKCASE
    SCREW, (.250-20 x .750), BRACKET TO CRANKCASE
  • 30
    1156-7809T1 END CAP ASSEMBLY, LOWER
    END CAP ASSEMBLY, LOWER
  • 31
    25-62700 O-RING, (3.237 x .103), END CAP
    O-RING, (3.237 x .103), END CAP
  • 32
    26-41953 SEAL, END CAP
    SEAL, END CAP
  • 33
    10-28636 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 34
    13-26992 LOCKWASHER, (.250), LOWER END CAP SCREW
    LOCKWASHER, (.250), LOWER END CAP SCREW
  • 35
    10-64022 SCREW, (.250-20 x 2.125), ADJUSTING - CYLINDER BLOCK
    SCREW, (.250-20 x 2.125), ADJUSTING - CYLINDER BLOCK
  • 36
    11-64015 NUT, (.250-20), JAM - ADJUSTING SCREW
    NUT, (.250-20), JAM - ADJUSTING SCREW
  • 37
    26852 CAP, NYLON - ADJUSTING SCREW
    CAP, NYLON - ADJUSTING SCREW
  • 38
    87076A10 IDLE SPEED CONTROL ASSEMBLY (200)
    IDLE SPEED CONTROL ASSEMBLY (200)
  • 39
    10-690201 SCREW, (#10-32 x .875)
    SCREW, (#10-32 x .875)
  • 40
    12-38833 WASHER
    WASHER
  • 41
    93772A11 ADVANCED MODULE (175)
    ADVANCED MODULE (175)
  • 42
    54-16793 CLAMP (175)
    CLAMP (175)
  • 43
    10-73286 SCREW, (.250-20 x .500) (175)
    SCREW, (.250-20 x .500) (175)
  • -
    812817T90 POWERHEAD, COMPLETE (175)
    POWERHEAD, COMPLETE (175)
  • -
    812827T91 POWERHEAD ASSEMBLY, COMPLETE (200)
    POWERHEAD ASSEMBLY, COMPLETE (200)
  • -
    27-815791A92 GASKET SET
    (200)
    GASKET SET
    (200)
  • -
    27-815791A92 GASKET SET
    (175)
    GASKET SET
    (175)
