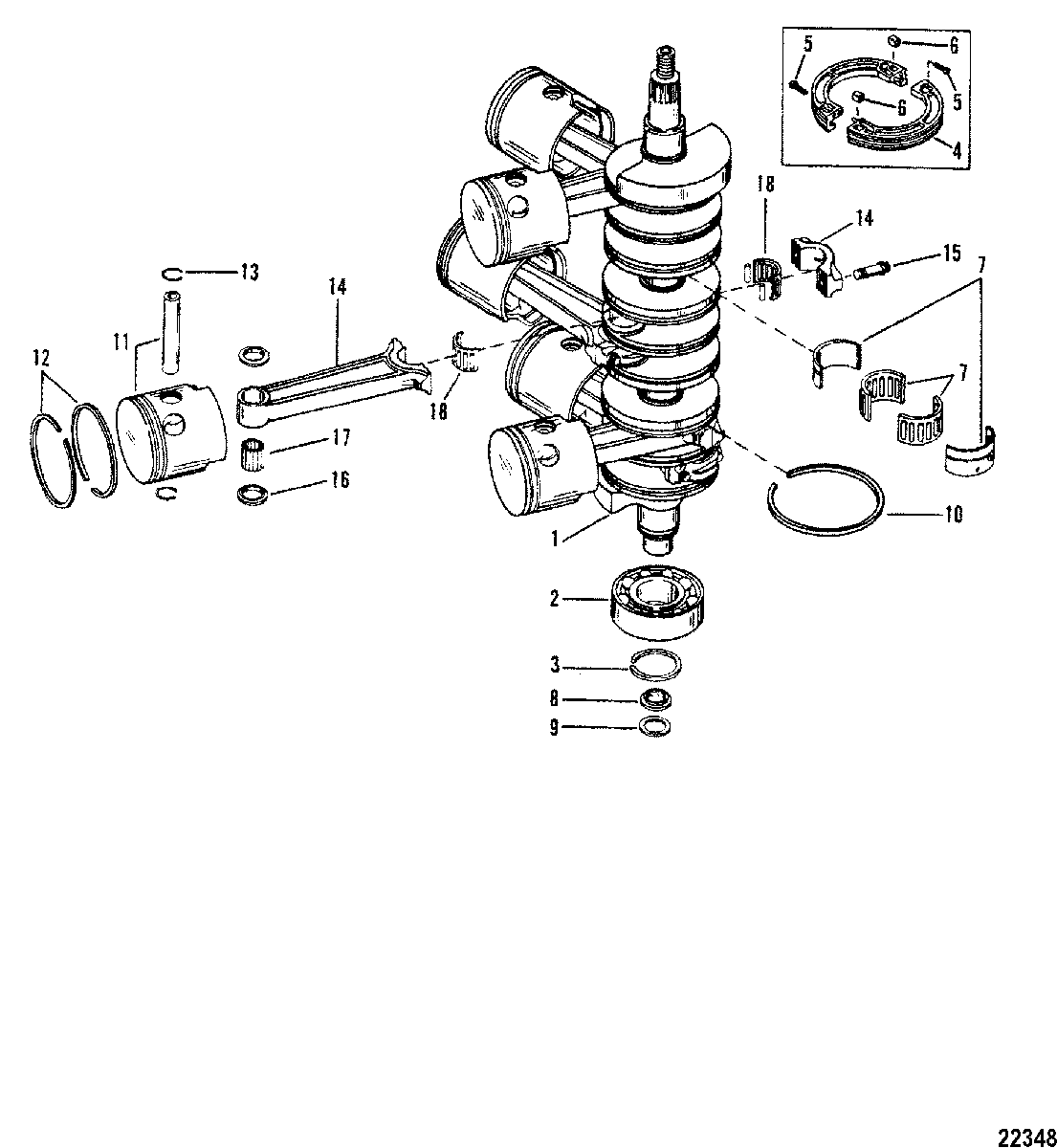

CRANKSHAFT(Conn Rod Forging # is 636-8118) для Mercury - V-175XRI (EFI) 0D000750 THRU 0D081999

№

Артикул

Название
1

455-9536T4 CRANKSHAFT ASSEMBLY

CRANKSHAFT ASSEMBLY

294 510 ₽
2

30-67923T BEARING, Ball (LOWER)

BEARING, Ball (LOWER)

5 390 ₽
3

53-67446 RING

RING

230 ₽
4

43-14513A09 GEAR KIT

GEAR KIT

7 950 ₽
5

10-813073 SCREW, (#6-32 x .620)

SCREW, (#6-32 x .620)

150 ₽
6

11-813134 NUT, (#6-32 Special)

NUT, (#6-32 Special)

440 ₽
7

31-16756A6 BEARING ASSEMBLY, Roller

BEARING ASSEMBLY, Roller

10 750 ₽
8

54196A6 CARRIER ASSEMBLY

CARRIER ASSEMBLY

1 530 ₽
9

65800 PACKING

PACKING

300 ₽
10

39-67377T RING, SEALING (.124 THICK)

RING, SEALING (.124 THICK)

1 140 ₽
11

766-8666T42 PISTON ASSEMBLY (STARBOARD - STANDARD) (175)

PISTON ASSEMBLY (STARBOARD - STANDARD) (175)

25 410 ₽
11

766-8666A43 PISTON ASSEMBLY, (Starboard) (STARBOARD - .015 O.S.) (175)

PISTON ASSEMBLY, (Starboard) (STARBOARD - .015 O.S.) (175)

33 250 ₽
11

766-8667T42 PISTON ASSEMBLY (PORT - STANDARD) (175)

PISTON ASSEMBLY (PORT - STANDARD) (175)

34 210 ₽
11

766-8667A43 PISTON ASSEMBLY, (Port) (PORT - .015 O.S.) (175)

PISTON ASSEMBLY, (Port) (PORT - .015 O.S.) (175)

34 240 ₽
12

39-18487A12 PISTON RING ASSEMBLY (STANDARD) (175)

PISTON RING ASSEMBLY (STANDARD) (175)

75 690 ₽
12

39-815267A4 PISTON RING ASSEMBLY (.015 O.S.) (175)

PISTON RING ASSEMBLY (.015 O.S.) (175)

15 450 ₽
11

785-9738T4 PISTON (STARBOARD - STANDARD) (200)

PISTON (STARBOARD - STANDARD) (200)

15 620 ₽
11

785-9738A5 PISTON (STARBOARD - .015 O.S.) (200)

PISTON (STARBOARD - .015 O.S.) (200)

16 370 ₽
11

785-9737T4 PISTON (PORT - STANDARD) (200)

PISTON (PORT - STANDARD) (200)

14 080 ₽
11

785-9737A5 PISTON (PORT - .015 O.S.) (200)

PISTON (PORT - .015 O.S.) (200)

16 370 ₽
12

39-815515A12 PISTON RING (STANDARD) (200)

PISTON RING (STANDARD) (200)

28 280 ₽
12

39-815268A4 PISTON RING (.015 O.S.) (200)

PISTON RING (.015 O.S.) (200)

16 010 ₽
13

53-857196 RING, Lock

RING, Lock

100 ₽
14

636-8119A6 CONNECTING ROD ASSEMBLY

CONNECTING ROD ASSEMBLY

41 150 ₽
15

10-93886 SCREW, (.312-28 x .875)

SCREW, (.312-28 x .875)

460 ₽
16

12-8M0032839 WASHER

WASHER

960 ₽
17

29-67483 BEARING, Needle

BEARING, Needle

50 ₽
18

31-8M0045428 BEARING KIT

BEARING KIT

7 260 ₽
-

27-815791A92 GASKET SET
(200)

GASKET SET
(200)

20 840 ₽
-

27-815791A92 GASKET SET
(175)

GASKET SET
(175)

20 840 ₽
