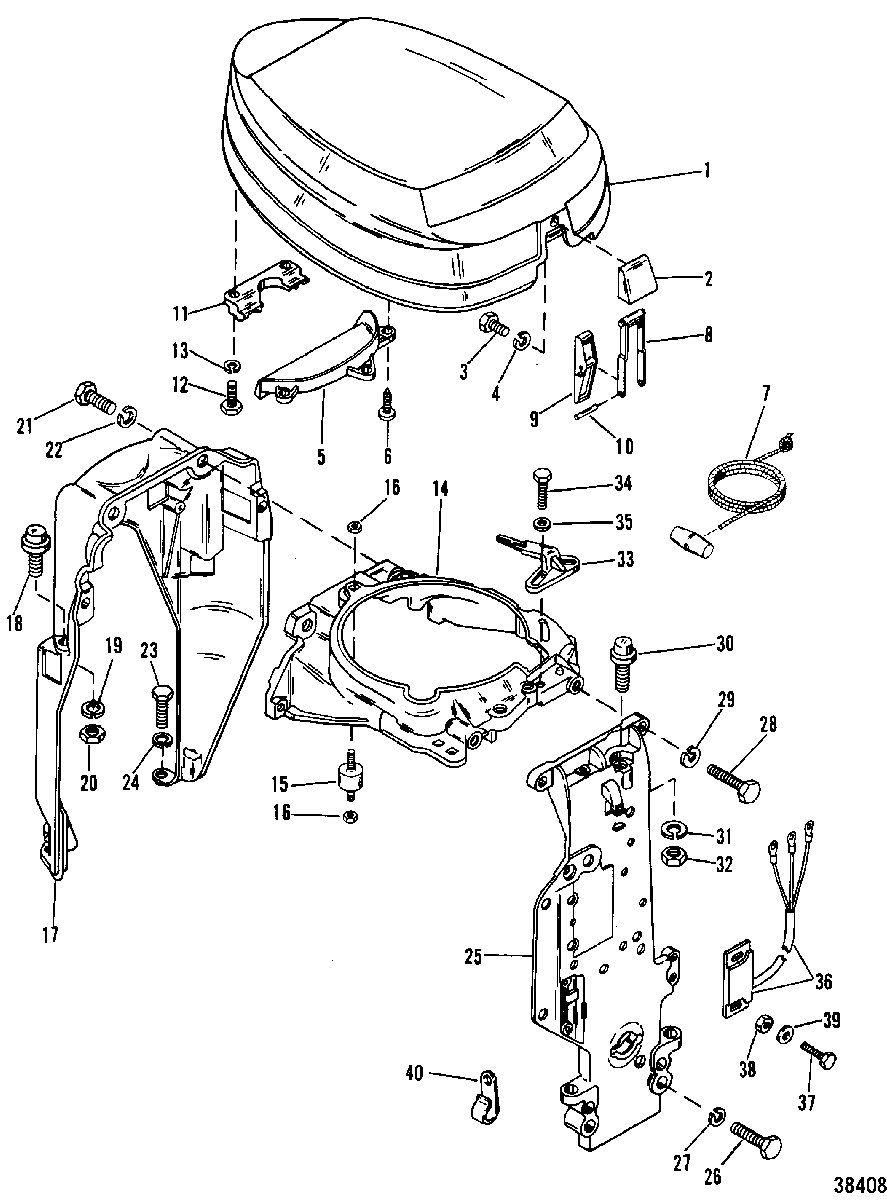

TOP COWL AND SUPPORT BRACKETS для Mercury - 90 (6 CYL.) 7208848 & Up

  • №
    Артикул
    Название
  • 1
    2114-7934T TOP COWL ASSEMBLY
    (BLACK)
    TOP COWL ASSEMBLY
    (BLACK)
  • 1
    2162-6392T6 TOP COWL ASSEMBLY
    (GRAY)
    TOP COWL ASSEMBLY
    (GRAY)
  • 2
    93122A1 RETAINER ASSEMBLY
    (BLACK)
    RETAINER ASSEMBLY
    (BLACK)
  • 2
    76440 RETAINER ASSEMBLY
    (GRAY)
    RETAINER ASSEMBLY
    (GRAY)
  • 3
    10-53167T SCREW, (.312-18 x .880)
    (BLACK)
    SCREW, (.312-18 x .880)
    (BLACK)
  • 3
    10-25299 SCREW, (.312-18 x .75)
    (GRAY)
    SCREW, (.312-18 x .75)
    (GRAY)
  • 4
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 5
    76370 SHIELD, REAR
    (BLACK)
    SHIELD, REAR
    (BLACK)
  • 5
    76433 SHIELD, REAR
    (GRAY)
    SHIELD, REAR
    (GRAY)
  • 6
    10-48409 SCREW, (#10-16 x .625) Stainless Steel, SHIELD TO TOP COWL
    SCREW, (#10-16 x .625) Stainless Steel, SHIELD TO TOP COWL
  • 7
    47341A11 ROPE AND HANDLE KIT, Manual/Emergency Start, STARTER (FOR MANUAL STARTING ONLY)
    ROPE AND HANDLE KIT, Manual/Emergency Start, STARTER (FOR MANUAL STARTING ONLY)
  • 8
    52739 HINGE, COWL LATCH - TOP COWL
    HINGE, COWL LATCH - TOP COWL
  • 9
    94918F1 LEVER, COWL LATCH HINGE
    LEVER, COWL LATCH HINGE
  • 10
    17-58998 PIN, COWL LATCH LEVER TO HINGE
    PIN, COWL LATCH LEVER TO HINGE
  • 11
    55455 HOOK, TOP COWL LATCH - REAR
    HOOK, TOP COWL LATCH - REAR
  • 12
    10-22956 SCREW, (.250-28 x .880), REAR HOOK TO TOP COWL
    SCREW, (.250-28 x .880), REAR HOOK TO TOP COWL
  • 13
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 14
    79897A4 FRAME, TOP COWL SUPPORT
    FRAME, TOP COWL SUPPORT
  • 15
    90435 MOUNT, RUBBER - TOP COWL FRAME
    MOUNT, RUBBER - TOP COWL FRAME
  • 15
    46096 MOUNT, RUBBER - TOP COWL FRAME
    (HEAVY DUTY)
    MOUNT, RUBBER - TOP COWL FRAME
    (HEAVY DUTY)
  • 16
    11-20184 NUT, (1/4-28X7/32), RUBBER MOUNT
    NUT, (1/4-28X7/32), RUBBER MOUNT
  • 17
    86472 BRACKET, TOP COWL SUPPORT - REAR
    BRACKET, TOP COWL SUPPORT - REAR
  • 18
    31014 MOUNT, RUBBER - REAR SUPPORT BRACKET
    MOUNT, RUBBER - REAR SUPPORT BRACKET
  • 19
    13-26992 LOCKWASHER, (.250) Stainless Steel, RUBBER MOUNT
    LOCKWASHER, (.250) Stainless Steel, RUBBER MOUNT
  • 20
    11-29598 NUT, (.250-28) Stainless Steel
    NUT, (.250-28) Stainless Steel
  • 21
    10-37562 SCREW, (.312-18 x 1.00) Stainless Steel, REAR BRACKET TO FRAME
    SCREW, (.312-18 x 1.00) Stainless Steel, REAR BRACKET TO FRAME
  • 22
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 23
    10-37562 SCREW, (.312-18 x 1.00) Stainless Steel, REAR BRACKET TO BOTTOM COWL
    SCREW, (.312-18 x 1.00) Stainless Steel, REAR BRACKET TO BOTTOM COWL
  • 24
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 25
    42706A1 BRACKET ASSEMBLY, TOP COWL - FRONT
    BRACKET ASSEMBLY, TOP COWL - FRONT
  • 26
    10-60411 SCREW, (1.25), FRONT BRACKET TO BOTTOM COWL
    SCREW, (1.25), FRONT BRACKET TO BOTTOM COWL
  • 27
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 28
    10-60411 SCREW, (1.25), FRONT BRACKET TO TOP COWL FRAME
    SCREW, (1.25), FRONT BRACKET TO TOP COWL FRAME
  • 29
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 30
    37640 MOUNT, RUBBER - FRONT SUPPORT BRACKET
    MOUNT, RUBBER - FRONT SUPPORT BRACKET
  • 31
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 32
    11-28770 NUT, (.312-24) Stainless Steel
    NUT, (.312-24) Stainless Steel
  • 33
    87991 POINTER, TIMING
    POINTER, TIMING
  • 34
    10-28636 SCREW, (.250-20 x .750), TIMING POINTER
    SCREW, (.250-20 x .750), TIMING POINTER
  • 35
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 36
    87076A4 IDLE SPEED CONTROL ASSEMBLY
    (115)
    IDLE SPEED CONTROL ASSEMBLY
    (115)
  • 37
    10-24637 SCREW, (#10-32 x .875), IDLE SPEED CONTROL ATTACHING
    (115)
    SCREW, (#10-32 x .875), IDLE SPEED CONTROL ATTACHING
    (115)
  • 38
    11-20110 NUT, (#10-32)
    (115)
    NUT, (#10-32)
    (115)
  • 39
    12-38833 WASHER
    (115)
    WASHER
    (115)
  • 40
    54-47483 J CLIP, FRONT COWL SUPPORT
    J CLIP, FRONT COWL SUPPORT
