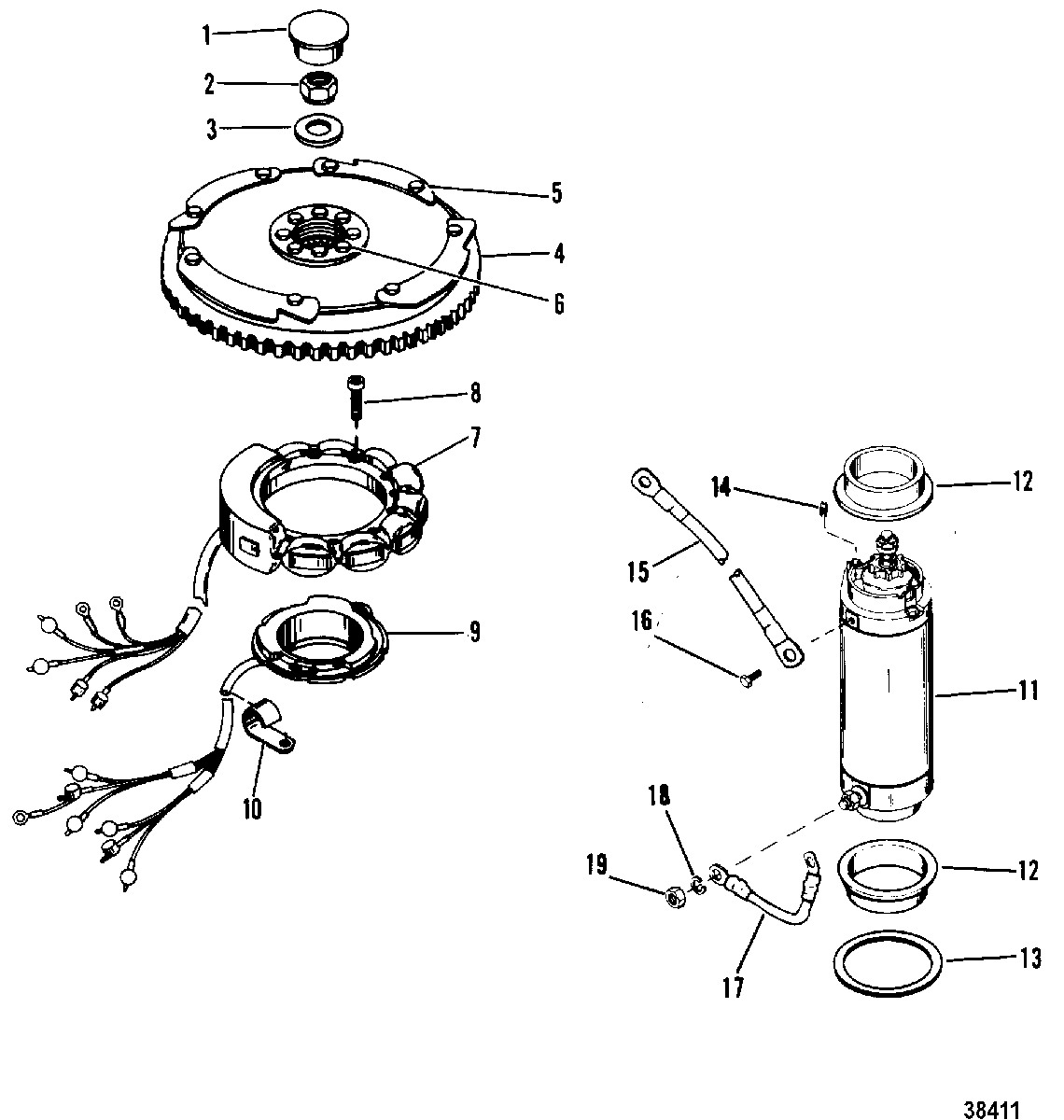

FLYWHEEL, STARTER MOTOR AND STATOR для Mercury - 90 (6 CYL.) 7208848 & Up
-
№АртикулНазвание
-
119-45907 PLUG, Yellow, FLYWHEELPLUG, Yellow, FLYWHEEL
-
211-52901 NUT, (.625-18), FLYWHEELNUT, (.625-18), FLYWHEEL
-
312-33001 WASHER, (.641 x 1.250 x .190), FLYWHEELWASHER, (.641 x 1.250 x .190), FLYWHEEL
-
4248-8722A7 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
510-32417 SCREW, (.250-28 x .625), FLYWHEEL PLATESCREW, (.250-28 x .625), FLYWHEEL PLATE
-
610-68997 SCREW, (.312-24 x .750), FLYWHEEL HUBSCREW, (.312-24 x .750), FLYWHEEL HUB
-
7398-5454A17 STATOR ASSEMBLYSTATOR ASSEMBLY
-
810-75840 SCREW, (#10-24 x .880), STATORSCREW, (#10-24 x .880), STATOR
-
996455A9 PLATE ASSEMBLY, TriggerPLATE ASSEMBLY, Trigger
-
1054-61001 J CLIP, TRIGGER HARNESSJ CLIP, TRIGGER HARNESS
-
1150-898265010 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
1223-8M0034918 COLLAR, STARTER MOTORCOLLAR, STARTER MOTOR
-
1323-56774 SPACER, STARTER MOTORSPACER, STARTER MOTOR
-
148M0043376 STOP, RUBBER - STARTER MOTORSTOP, RUBBER - STARTER MOTOR
-
1584-93388A1 CABLE ASSEMBLY, (6.00 Inches) Black, PLATE TO STARTER MOTORCABLE ASSEMBLY, (6.00 Inches) Black, PLATE TO STARTER MOTOR
-
1610-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, CABLE TO STARTER MOTORSCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, CABLE TO STARTER MOTOR
-
1784-93389A6 CABLE ASSEMBLY, SOLENOID TO STARTER MOTOR (YELLOW)CABLE ASSEMBLY, SOLENOID TO STARTER MOTOR (YELLOW)
-
1813-26992 LOCKWASHER, (.250) Stainless Steel, STARTER MOTOR TERMINALLOCKWASHER, (.250) Stainless Steel, STARTER MOTOR TERMINAL
-
1911-64015 NUT, (.250-20), STARTER MOTOR TERMINALNUT, (.250-20), STARTER MOTOR TERMINAL
