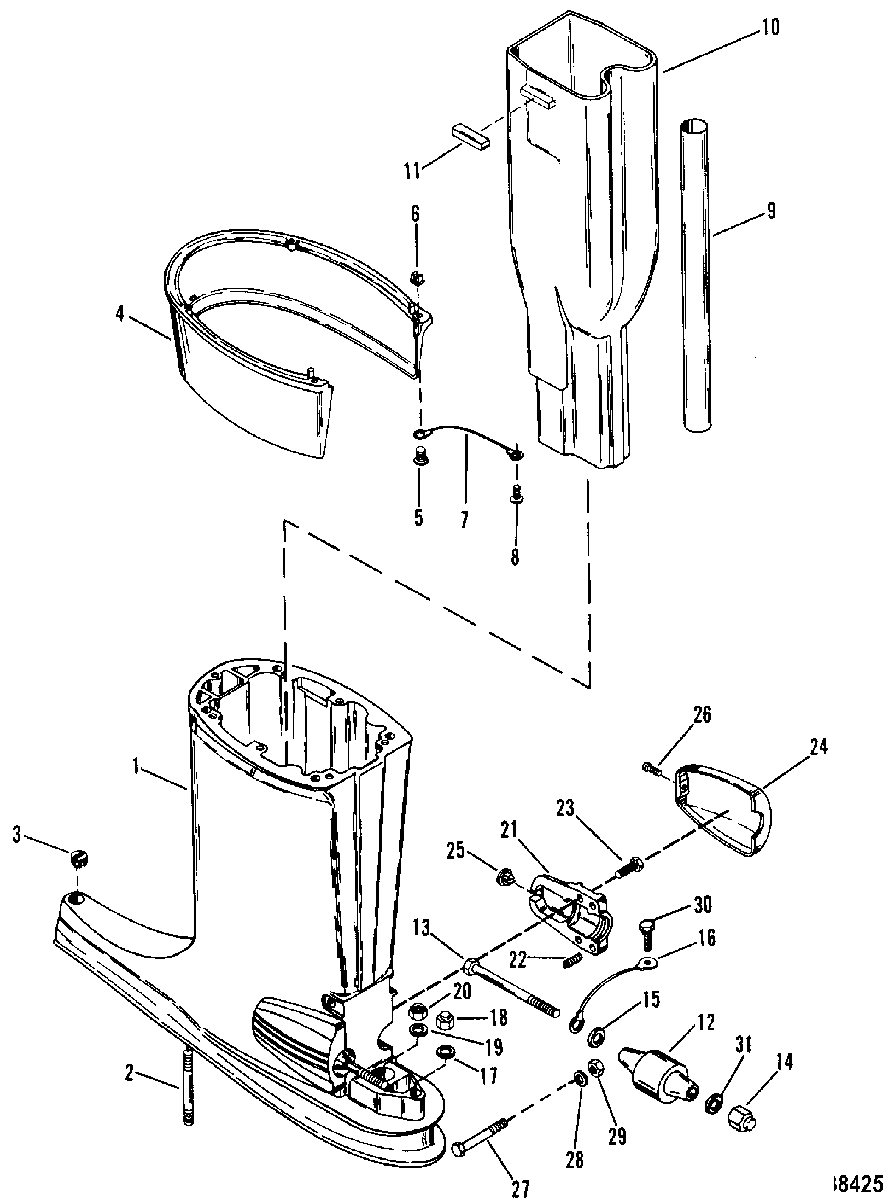

DRIVESHAFT HOUSING ASSEMBLY для Mercury - 90 (6 CYL.) 7208848 & Up

  • №
    Артикул
    Название
  • 1
    1573-5239A4 HOUSING ASSEMBLY, Driveshaft - Mercury
    HOUSING ASSEMBLY, Driveshaft - Mercury
  • 1
    1573-5239A51 HOUSING ASSEMBLY, Driveshaft - Mariner
    HOUSING ASSEMBLY, Driveshaft - Mariner
  • 2
    16-56295 STUD, (.437 x 2.69)
    STUD, (.437 x 2.69)
  • 3
    19-64649 PLUG, PLASTIC - TRIM TAB SCREW HOLE
    PLUG, PLASTIC - TRIM TAB SCREW HOLE
  • 4
    37417 COVER, TRIM
    (MERCURY)
    COVER, TRIM
    (MERCURY)
  • 4
    37417F2 COVER, TRIM
    (MARINER)
    COVER, TRIM
    (MARINER)
  • 5
    10-57807 SCREW, (#10-16 x .750) Stainless Steel
    SCREW, (#10-16 x .750) Stainless Steel
  • 6
    25-8M0079730 GROMMET, TRIM COVER SCREW
    GROMMET, TRIM COVER SCREW
  • 7
    84-88238T01 CABLE ASSEMBLY, TRIM COVER SCREW
    CABLE ASSEMBLY, TRIM COVER SCREW
  • 8
    10-62568 SCREW, (#10-16 x .375), GROUND STRAP ATTACHING
    SCREW, (#10-16 x .375), GROUND STRAP ATTACHING
  • 9
    32-60897 TUBE, WATER INLET
    (LONG SHAFT)
    TUBE, WATER INLET
    (LONG SHAFT)
  • 9
    32-77121 TUBE, WATER INLET
    (EXTRA LONG SHAFT)
    TUBE, WATER INLET
    (EXTRA LONG SHAFT)
  • 10
    78184T TUBE, EXHAUST
    (LONG SHAFT)
    TUBE, EXHAUST
    (LONG SHAFT)
  • 11
    65638 BOOT, EXHAUST TUBE
    BOOT, EXHAUST TUBE
  • 12
    75299 MOUNT, RUBBER - LOWER
    (LONG SHAFT)
    MOUNT, RUBBER - LOWER
    (LONG SHAFT)
  • 13
    10-43426 SCREW, UPPER MOUNT
    SCREW, UPPER MOUNT
  • 14
    11-25096 NUT, MOUNT SCREW
    NUT, MOUNT SCREW
  • 15
    12-30119 WASHER, (.875 Inch Outside Diameter), UPPER MOUNT SCREW
    WASHER, (.875 Inch Outside Diameter), UPPER MOUNT SCREW
  • 16
    88238A10 CABLE ASSEMBLY, Ground
    CABLE ASSEMBLY, Ground
  • 17
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel, GEAR HOUSING STUDS
    WASHER, (.453 x .812 x .105) Stainless Steel, GEAR HOUSING STUDS
  • 18
    11-29489 NUT, GEAR HOUSING STUDS
    NUT, GEAR HOUSING STUDS
  • 19
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel, GEAR HOUSING STUDS
    WASHER, (.453 x .812 x .105) Stainless Steel, GEAR HOUSING STUDS
  • 20
    11-34933 NUT, (.437-20) Stainless Steel, GEAR HOUSING
    NUT, (.437-20) Stainless Steel, GEAR HOUSING
  • 21
    35608 CLAMP, LOWER MOUNT TO DRIVESHAFT HOUSING
    CLAMP, LOWER MOUNT TO DRIVESHAFT HOUSING
  • 22
    24-35522 SPRING, TENSION - LOWER MOUNT CLAMP
    SPRING, TENSION - LOWER MOUNT CLAMP
  • 23
    10-29256 SCREW, (.312-18 x .875)
    SCREW, (.312-18 x .875)
  • 24
    35474T COVER, LOWER MOUNT CLAMP
    (BLACK)
    COVER, LOWER MOUNT CLAMP
    (BLACK)
  • 24
    35474F2 COVER, Lower Mount Clamp
    (GRAY)
    COVER, Lower Mount Clamp
    (GRAY)
  • 25
    11-35521 NUT, LOWER MOUNT CLAMP COVER
    NUT, LOWER MOUNT CLAMP COVER
  • 26
    10-87884 SCREW, (#12-14 x .920)
    SCREW, (#12-14 x .920)
  • 27
    10-28200 SCREW, (.375-24 x 2.875), DRIVESHAFT HOUSING
    EARLY MODELS
    SCREW, (.375-24 x 2.875), DRIVESHAFT HOUSING
    EARLY MODELS
  • 28
    12-34714 WASHER, HOUSING SCREW
    EARLY MODELS
    WASHER, HOUSING SCREW
    EARLY MODELS
  • 29
    11-25269 NUT, (.375-24)
    EARLY MODELS
    NUT, (.375-24)
    EARLY MODELS
  • 30
    10-41508 SCREW, (.250-20 x .500) Stainless Steel, GROUND WIRE
    SCREW, (.250-20 x .500) Stainless Steel, GROUND WIRE
  • 31
    12-49339 WASHER, (.8125), LOWER MOUNT
    WASHER, (.8125), LOWER MOUNT
  • -
    77120T SPACER
    (BLACK)(EXTRA LONG SHAFT)
    SPACER
    (BLACK)(EXTRA LONG SHAFT)
  • -
    77120T6 SPACER
    (GRAY)(EXTRA LONG SHAFT)
    SPACER
    (GRAY)(EXTRA LONG SHAFT)
  • -
    17-8M0084726 PIN, Dowel (.187 x .530), SPACER
    (EXTRA LONG SHAFT)
    PIN, Dowel (.187 x .530), SPACER
    (EXTRA LONG SHAFT)
