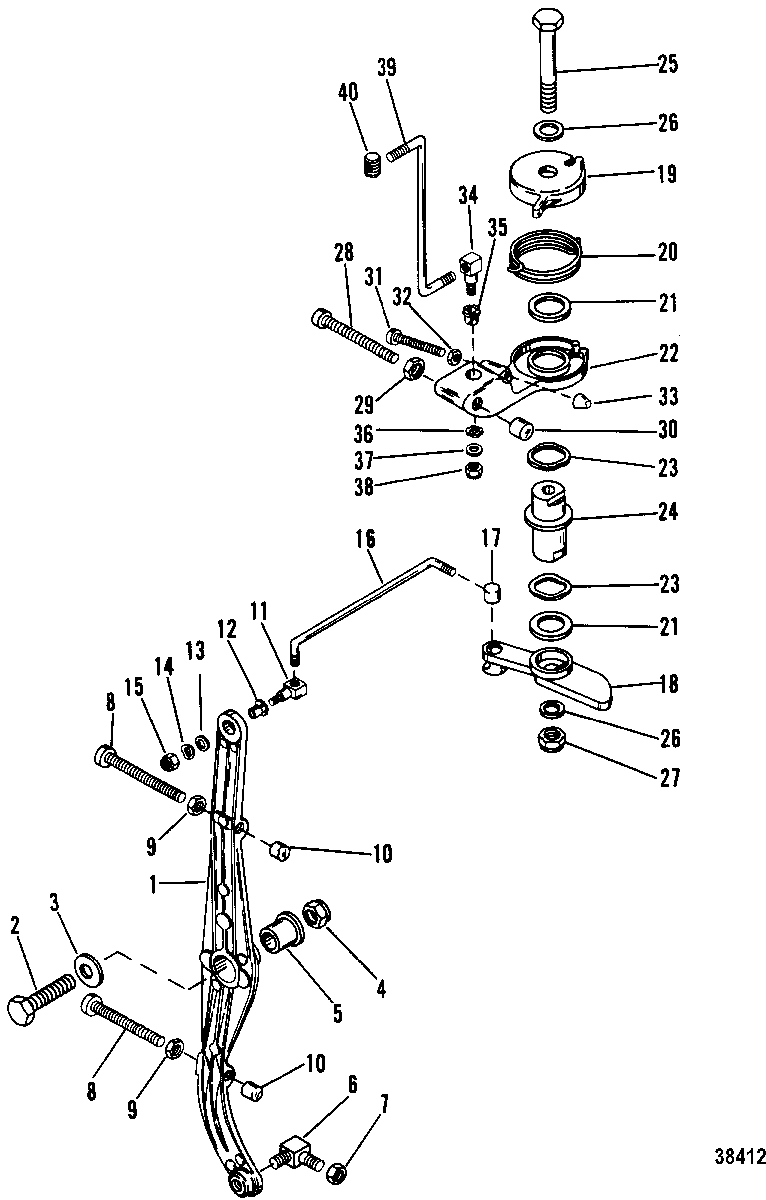

THROTTLE LEVER AND LINK RODS для Mercury - 90 (6 CYL.) 7208848 & Up

  • №
    Артикул
    Название
  • 1
    79900 LEVER, THROTTLE
    LEVER, THROTTLE
  • 2
    10-31830 BOLT, (.375-24 x 1.75)
    (USE WITH NUT)
    BOLT, (.375-24 x 1.75)
    (USE WITH NUT)
  • 2
    10-818165 SCREW, (.375-16 x 1.75)
    (USE W/O NUT)
    SCREW, (.375-16 x 1.75)
    (USE W/O NUT)
  • 3
    12-8M0042641 WASHER, (.390 x 1.00 x .06)
    (USE WITH NUT)
    WASHER, (.390 x 1.00 x .06)
    (USE WITH NUT)
  • 3
    12-46765 WASHER
    (USE W/O NUT)
    WASHER
    (USE W/O NUT)
  • 4
    11-8M0042636 NUT, (.375-24)
    NUT, (.375-24)
  • 5
    23-45818 BUSHING, THROTTLE LEVER SCREW
    BUSHING, THROTTLE LEVER SCREW
  • 6
    37587 SWIVEL, THROTTLE LEVER TO THROTTLE CABLE
    SWIVEL, THROTTLE LEVER TO THROTTLE CABLE
  • 7
    11-20184 NUT, (1/4-28X7/32), THROTTLE CABLE TO SWIVEL
    NUT, (1/4-28X7/32), THROTTLE CABLE TO SWIVEL
  • 8
    10-75168 SCREW, ADJUSTING - THROTTLE LEVER
    SCREW, ADJUSTING - THROTTLE LEVER
  • 9
    11-29598 NUT, (.250-28) Stainless Steel, ADJUSTING SCREW
    NUT, (.250-28) Stainless Steel, ADJUSTING SCREW
  • 10
    52023 CAP, NYLON - ADJUSTING SCREW
    CAP, NYLON - ADJUSTING SCREW
  • 11
    77013A1 SWIVEL, THROTTLE LEVER
    SWIVEL, THROTTLE LEVER
  • 12
    23-26856 BUSHING, SWIVEL
    BUSHING, SWIVEL
  • 13
    12-73288 WASHER, SWIVEL
    WASHER, SWIVEL
  • 14
    13-29402 WAVE WASHER, SWIVEL
    WAVE WASHER, SWIVEL
  • 15
    11-45774 NUT, SWIVEL TO THROTTLE LEVER
    NUT, SWIVEL TO THROTTLE LEVER
  • 16
    85300 LINK ROD, THROTTLE
    LINK ROD, THROTTLE
  • 17
    23-74213 BARREL, LINK ROD TO THROTTLE CAM
    BARREL, LINK ROD TO THROTTLE CAM
  • 18
    85441 CAM, Throttle
    (90)
    CAM, Throttle
    (90)
  • 18
    88754 CAM, Throttle
    (115)
    CAM, Throttle
    (115)
  • 19
    85082 HOUSING, THROTTLE - UPPER
    HOUSING, THROTTLE - UPPER
  • 20
    24-95721 SPRING, TORSION - SHAFT
    SPRING, TORSION - SHAFT
  • 21
    12-85303 WASHER, PLASTIC - THROTTLE CAM
    WASHER, PLASTIC - THROTTLE CAM
  • 22
    79903F1 HOUSING, THROTTLE - LOWER
    HOUSING, THROTTLE - LOWER
  • 23
    13-86498 WAVE WASHER, SHAFT
    WAVE WASHER, SHAFT
  • 24
    87937 SHAFT, THROTTLE AND SPARK ADVANCE
    SHAFT, THROTTLE AND SPARK ADVANCE
  • 25
    10-28239 SCREW, (.250-20 x 2.50), THROTTLE HOUSING
    SCREW, (.250-20 x 2.50), THROTTLE HOUSING
  • 26
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel, THROTTLE HOUSING SCREW
    WASHER, (.2656 x .625 x .0625) Stainless Steel, THROTTLE HOUSING SCREW
  • 27
    11-8267088 NUT, (.250-20), THROTTLE HOUSING SCREW
    NUT, (.250-20), THROTTLE HOUSING SCREW
  • 28
    10-75168 SCREW, ADJUSTING - LOWER HOUSING (2-1/4")
    SCREW, ADJUSTING - LOWER HOUSING (2-1/4")
  • 29
    11-29598 NUT, (.250-28) Stainless Steel, ADJUSTING SCREW
    NUT, (.250-28) Stainless Steel, ADJUSTING SCREW
  • 30
    52023 CAP, NYLON - ADJUSTING SCREW
    CAP, NYLON - ADJUSTING SCREW
  • 31
    10-60464 SCREW, ADJUSTING - LOWER HOUSING (2-1/8")
    SCREW, ADJUSTING - LOWER HOUSING (2-1/8")
  • 32
    11-68219 NUT, (#10-32) Stainless Steel, ADJUSTING SCREW
    NUT, (#10-32) Stainless Steel, ADJUSTING SCREW
  • 33
    48039 CAP, NYLON - ADJUSTING SCREW
    CAP, NYLON - ADJUSTING SCREW
  • 34
    77013A1 SWIVEL, SPARK LINK
    SWIVEL, SPARK LINK
  • 35
    23-26856 BUSHING, SWIVEL
    BUSHING, SWIVEL
  • 36
    13-29402 WAVE WASHER, SWIVEL
    WAVE WASHER, SWIVEL
  • 37
    12-73288 WASHER, SWIVEL
    WASHER, SWIVEL
  • 38
    11-45774 NUT, SWIVEL
    NUT, SWIVEL
  • 39
    85301 SPARK LINK
    SPARK LINK
  • 40
    74897T PIVOT, SPARK LINK TO TRIGGER
    PIVOT, SPARK LINK TO TRIGGER
