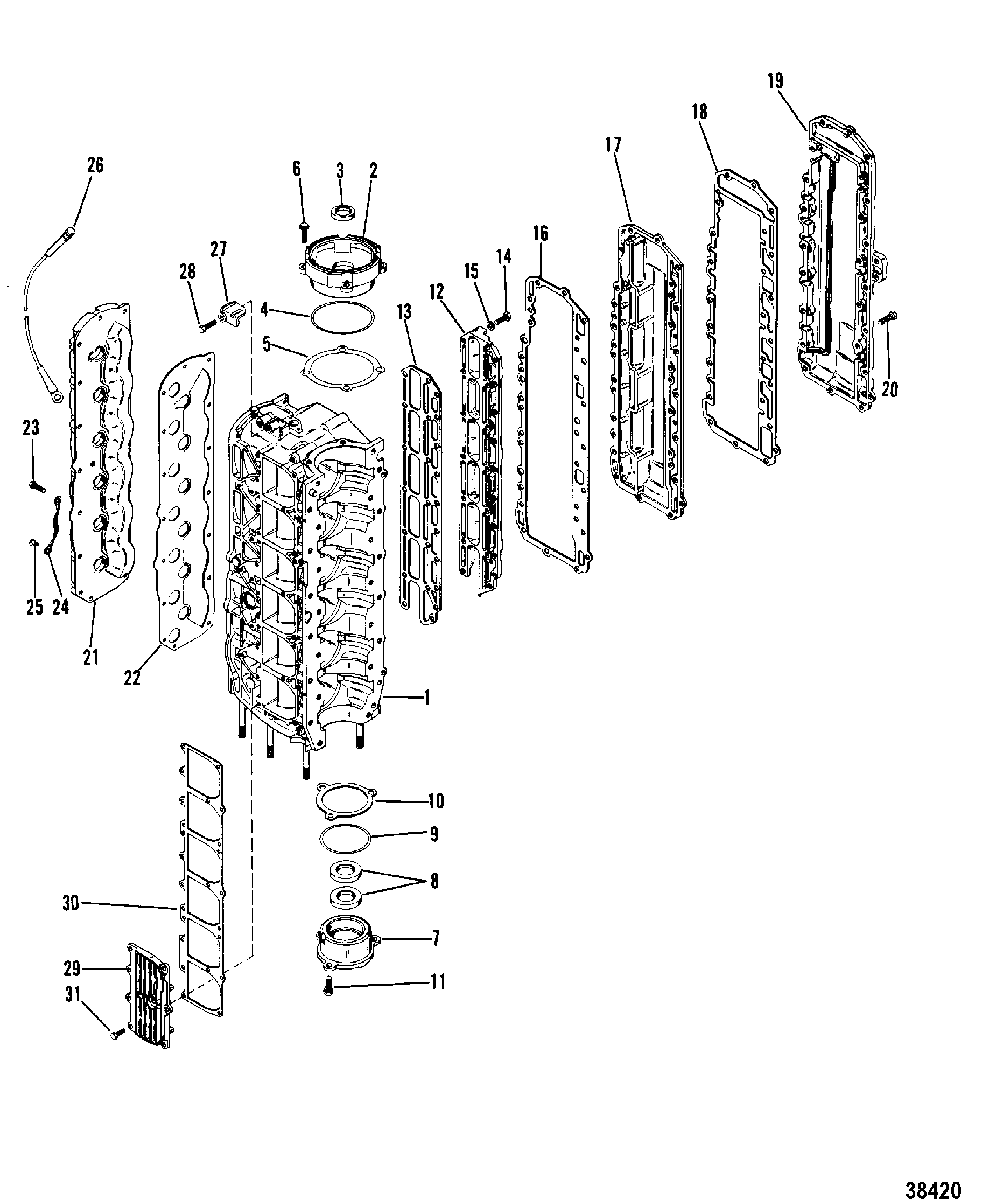

END CAP, MANIFOLD AND EXHAUST COVERS для Mercury - 90 (6 CYL.) 7208848 & Up

  • №
    Артикул
    Название
  • 1
    852-8311A4 CYLINDER BLOCK ASSEMBLY
    (90)
    CYLINDER BLOCK ASSEMBLY
    (90)
  • 1
    852-8310A4 CYLINDER BLOCK ASSEMBLY
    (115)
    CYLINDER BLOCK ASSEMBLY
    (115)
  • 2
    1161-7616A2 END CAP ASSEMBLY
    END CAP ASSEMBLY
  • 3
    26-41953 SEAL, END CAP
    SEAL, END CAP
  • 4
    25-47254 O-RING
    O-RING
  • 5
    15-73644A1 SHIM, END CAP (.006-10)
    SHIM, END CAP (.006-10)
  • 6
    10-812618 SCREW, END CAP (1")
    SCREW, END CAP (1")
  • 7
    1148-5410T1 END CAP ASSEMBLY, LOWER
    END CAP ASSEMBLY, LOWER
  • 8
    26-41953 SEAL, END CAP
    SEAL, END CAP
  • 9
    25-32546 O-RING, END CAP
    O-RING, END CAP
  • 10
    15-20085A1 SHIM SET, END CAP (.005-10)
    SHIM SET, END CAP (.005-10)
  • 11
    10-30225 SCREW AND LOCKWASHER, (.312-18 x 1.00), END CAP
    SCREW AND LOCKWASHER, (.312-18 x 1.00), END CAP
  • 12
    71808 COVER, WATER JACKET
    COVER, WATER JACKET
  • 13
    27-721421 GASKET, WATER JACKET COVER
    GASKET, WATER JACKET COVER
  • 14
    10-53167T SCREW, (.312-18 x .880), WATER JACKET COVER
    SCREW, (.312-18 x .880), WATER JACKET COVER
  • 15
    12-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel
    WASHER, (.323 x .563 x .063) Stainless Steel
  • 16
    27-854952 GASKET, CYLINDER BLOCK TO BAFFLE PLATE
    GASKET, CYLINDER BLOCK TO BAFFLE PLATE
  • 17
    757781 PLATE, Baffle, EXHAUST MANIFOLD
    PLATE, Baffle, EXHAUST MANIFOLD
  • 18
    27-854972 GASKET
    GASKET
  • 19
    99896A1 COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 20
    10-53576 SCREW, (.312-18 x 1.125), MANIFOLD COVER
    SCREW, (.312-18 x 1.125), MANIFOLD COVER
  • 21
    1023-8368A1 COVER, CYLINDER BLOCK
    COVER, CYLINDER BLOCK
  • 22
    27-981853 GASKET, CYLINDER BLOCK COVER
    GASKET, CYLINDER BLOCK COVER
  • 23
    10-76630 SCREW, COVER (1")
    SCREW, COVER (1")
  • 24
    46933A3 STRAP ASEMBLY, Ground
    STRAP ASEMBLY, Ground
  • 25
    10-62568 SCREW, (#10-16 x .375), GROUND STRAP
    SCREW, (#10-16 x .375), GROUND STRAP
  • 26
    87-96829A1 SWITCH ASSEMBLY, Temperature
    SWITCH ASSEMBLY, Temperature
  • 27
    37440 BRACKET, MOUNT SUPPORT
    BRACKET, MOUNT SUPPORT
  • 28
    10-35386 SCREW, (.312-18 x 1.00), BRACKET TO CYLINDER BLOCK
    SCREW, (.312-18 x 1.00), BRACKET TO CYLINDER BLOCK
  • 29
    87872 COVER, TRANSFER PORT
    COVER, TRANSFER PORT
  • 30
    27-856730 GASKET, TRANSFER PORT COVER
    GASKET, TRANSFER PORT COVER
  • 31
    10-28636 SCREW, (.250-20 x .750), TRANSFER PORT COVER
    SCREW, (.250-20 x .750), TRANSFER PORT COVER
  • -
    27-85653A87 GASKET SET
    GASKET SET
