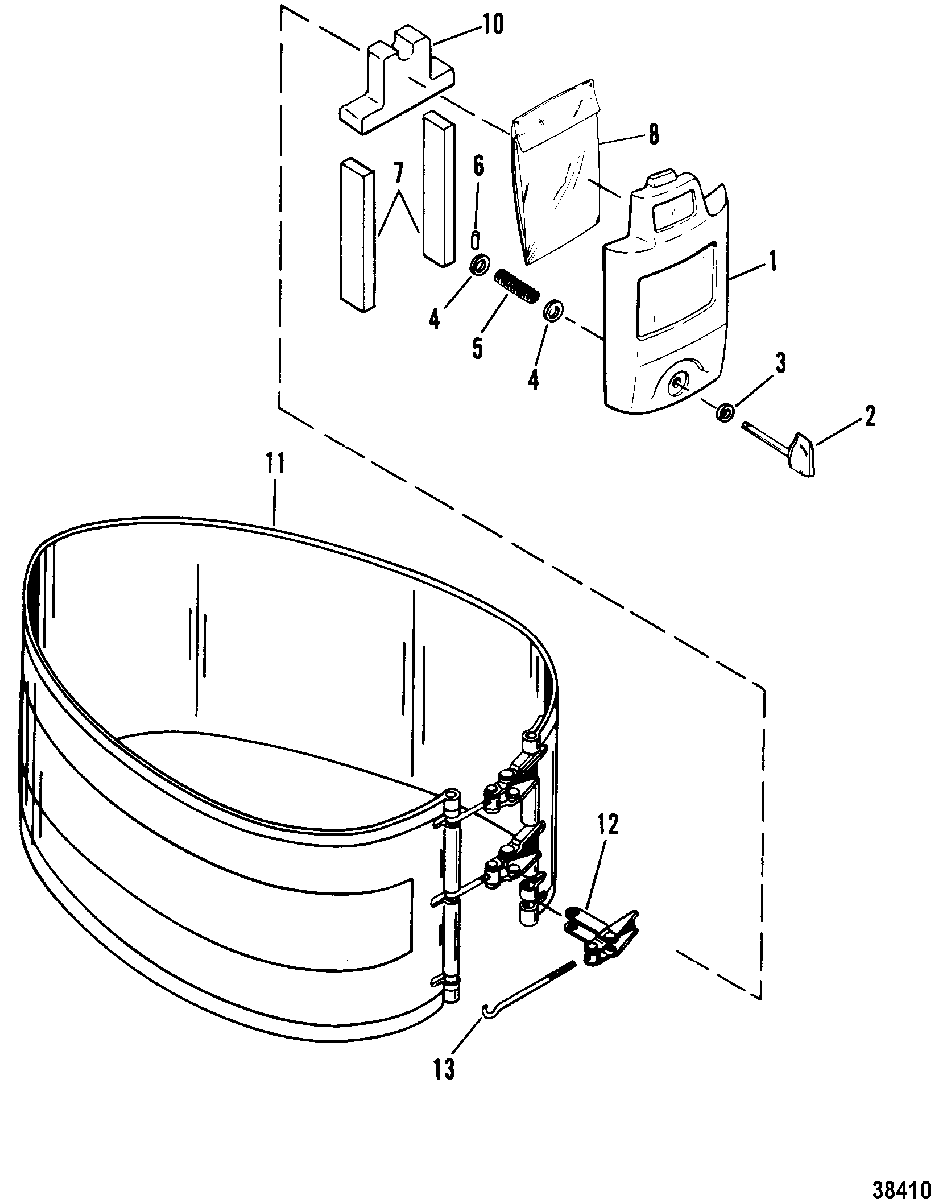

COWLING AND FRONT COVER(GRAY) для Mercury - 90 (6 CYL.) 7208848 & Up
-
№АртикулНазвание
-
12171-6497A7 FRONT COVERFRONT COVER
-
256849 KNOB, FRONT COVERKNOB, FRONT COVER
-
312-30771 WASHER, COVER KNOB (RUBBER)WASHER, COVER KNOB (RUBBER)
-
412-59572 WASHER, COVER KNOB (PLASTIC)WASHER, COVER KNOB (PLASTIC)
-
524-30772 SPRING, TENSION - KNOBSPRING, TENSION - KNOB
-
617-29077 PIN, Roll, TENSION SPRING TO KNOBPIN, Roll, TENSION SPRING TO KNOB
-
777790 STRIP, SOUNGSTRIP, SOUNG
-
838674 BLANKET, STARTER ROPEBLANKET, STARTER ROPE
-
1077544 SEAL, SOUND - TOPSEAL, SOUND - TOP
-
112172-6498A9 WRAP AROUND COWLWRAP AROUND COWL
-
1246785A1 LATCH ASSEMBLY, CowlLATCH ASSEMBLY, Cowl
-
1330413 HOOK, COWL LATCHHOOK, COWL LATCH
Все узлы модели:
- Auto-Blend
- AUTO-BLEND(WITH WARNING HORN)
- BOTTOM COWL AND SHIFT LINKAGE
- CARBURETOR
- CARBURETOR AND ENRICHNER VALVE
- COWLING AND FRONT COVER(BLACK)
- • COWLING AND FRONT COVER(GRAY)
- CRANKSHAFT, PISTONS AND CONNECTING RODS
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVESHAFT HOUSING ASSEMBLY
- END CAP, MANIFOLD AND EXHAUST COVERS
- EXHAUST EXTENSION PLATE
- FLYWHEEL, STARTER MOTOR AND STATOR
- FUEL PUMP AND FUEL LINES(NEW STYLE FUEL PUMP)
- FUEL PUMP AND FUEL LINES(OLD STYLE FUEL PUMP)
- GEAR HOUSING(DRIVESHAFT)
- GEAR HOUSING(PROPELLER SHAFT)
- POWER TRIM COMPONENTS
- Power Trim Pump(Eaton Rectangular Motor)
- Power Trim Pump(Prestolite Round Motor)
- Service/Support Material
- STARTER MOTOR ASSEMBLY
- SWITCH BOX AND STARTER SOLENOID
- SWIVEL BRACKET AND STEERING ARM
- TACHOMETER
- THROTTLE LEVER AND LINK RODS
- TOP COWL AND SUPPORT BRACKETS
- TRANSOM BRACKET
- WIRING HARNESS AND IGNITION COIL
