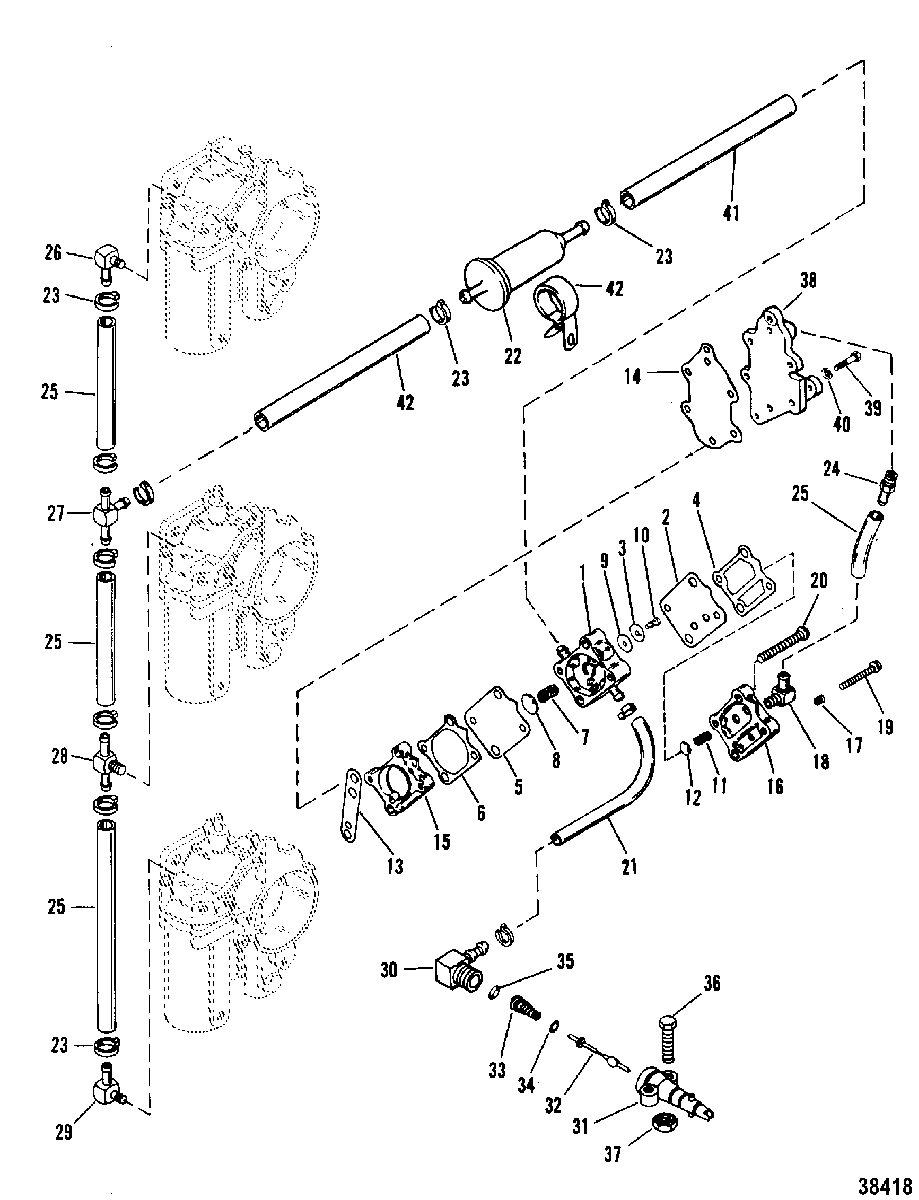

FUEL PUMP AND FUEL LINES(NEW STYLE FUEL PUMP) для Mercury - 90 (6 CYL.) 7208848 & Up
-
№АртикулНазвание
-
114360A78 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
221-857005A1 DIAPHRAGM KITDIAPHRAGM KIT
-
3NSS NOT SOLD SEPARATE, CHECK VALVE-RUBBERNOT SOLD SEPARATE, CHECK VALVE-RUBBER
-
4NSS NOT SOLD SEPARATE, GASKET-BOOSTNOT SOLD SEPARATE, GASKET-BOOST
-
5NSS NOT SOLD SEPARATE, DIAPHRAGMNOT SOLD SEPARATE, DIAPHRAGM
-
6NSS NOT SOLD SEPARATE, GASKET-PULSENOT SOLD SEPARATE, GASKET-PULSE
-
7NSS NOT SOLD SEPARATE, SPRINGNOT SOLD SEPARATE, SPRING
-
8NSS NOT SOLD SEPARATE, CAPNOT SOLD SEPARATE, CAP
-
9NSS NOT SOLD SEPARATE, CHECK VALVENOT SOLD SEPARATE, CHECK VALVE
-
10NSS NOT SOLD SEPARATE, RETAINERNOT SOLD SEPARATE, RETAINER
-
11NSS NOT SOLD SEPARATE, SPRINGNOT SOLD SEPARATE, SPRING
-
12NSS NOT SOLD SEPARATE, CAPNOT SOLD SEPARATE, CAP
-
1327-987691 GASKET, BASEGASKET, BASE
-
14NSS NOT SOLD SEPARATE, GASKET-MOUNTING PLATENOT SOLD SEPARATE, GASKET-MOUNTING PLATE
-
15144303 BASE, FUEL PUMPBASE, FUEL PUMP
-
16987752 PLATE, FUEL PUMPPLATE, FUEL PUMP
-
1722-56800 PLUG, Pipe (.0625-27)PLUG, Pipe (.0625-27)
-
1822-19688 FITTINGFITTING
-
1910-4000310 SCREW, (M5 x 40), FUEL PUMPSCREW, (M5 x 40), FUEL PUMP
-
2010-16452 SCREW, (#12-24 x 2.00), FUEL PUMP TO CRANKCASESCREW, (#12-24 x 2.00), FUEL PUMP TO CRANKCASE
-
2132-8M0108349 TUBINGTUBING
-
2235-816296Q2 FILTER, FuelFILTER, Fuel
-
2354-816311T TIE STRAP, FUEL TUBINGTIE STRAP, FUEL TUBING
-
2422-64705 FITTING, FUEL LINEFITTING, FUEL LINE
-
2532-8M0108355 LINE, (57.00 Inches Bulk)LINE, (57.00 Inches Bulk)
-
2622-19688 FITTING, UPPER CARBURETORFITTING, UPPER CARBURETOR
-
2722-18214 TEE, FUEL LINETEE, FUEL LINE
-
2822-64706001 TEE, CENTER CARBURETORTEE, CENTER CARBURETOR
-
2922-19688 FITTING, LOWER CARBURETORFITTING, LOWER CARBURETOR
-
3022-36221 ELBOW, FUEL LINE TO ADAPTORELBOW, FUEL LINE TO ADAPTOR
-
3130186 ADAPTOR, CHECK UNITADAPTOR, CHECK UNIT
-
3230185Q3 STEM, CHECK UNIT ADAPTORSTEM, CHECK UNIT ADAPTOR
-
3324-30189 SPRING, ADAPTOR STEMSPRING, ADAPTOR STEM
-
3425-16524 O-RING, ADAPTOR STEMO-RING, ADAPTOR STEM
-
3530188 WASHER, ADAPTORWASHER, ADAPTOR
-
3610-36154 SCREW, (.250-28 x 1.380), ADAPTOR TO BOTTOM COWLSCREW, (.250-28 x 1.380), ADAPTOR TO BOTTOM COWL
-
3711-36069 NUT, ADAPTOR SCREWNUT, ADAPTOR SCREW
-
3814439A2 PLATE, MOUNTINGPLATE, MOUNTING
-
3910-20189 SCREW, (.190-32 x .75), PALTE TO CRANKCASESCREW, (.190-32 x .75), PALTE TO CRANKCASE
-
4013-26996 LOCKWASHER, (#10) Stainless Steel, PLATE SCREWLOCKWASHER, (#10) Stainless Steel, PLATE SCREW
-
4132-18176 HOSEHOSE
-
4232-18175 HOSEHOSE
-
-32-18176A1 HOSE KITHOSE KIT
