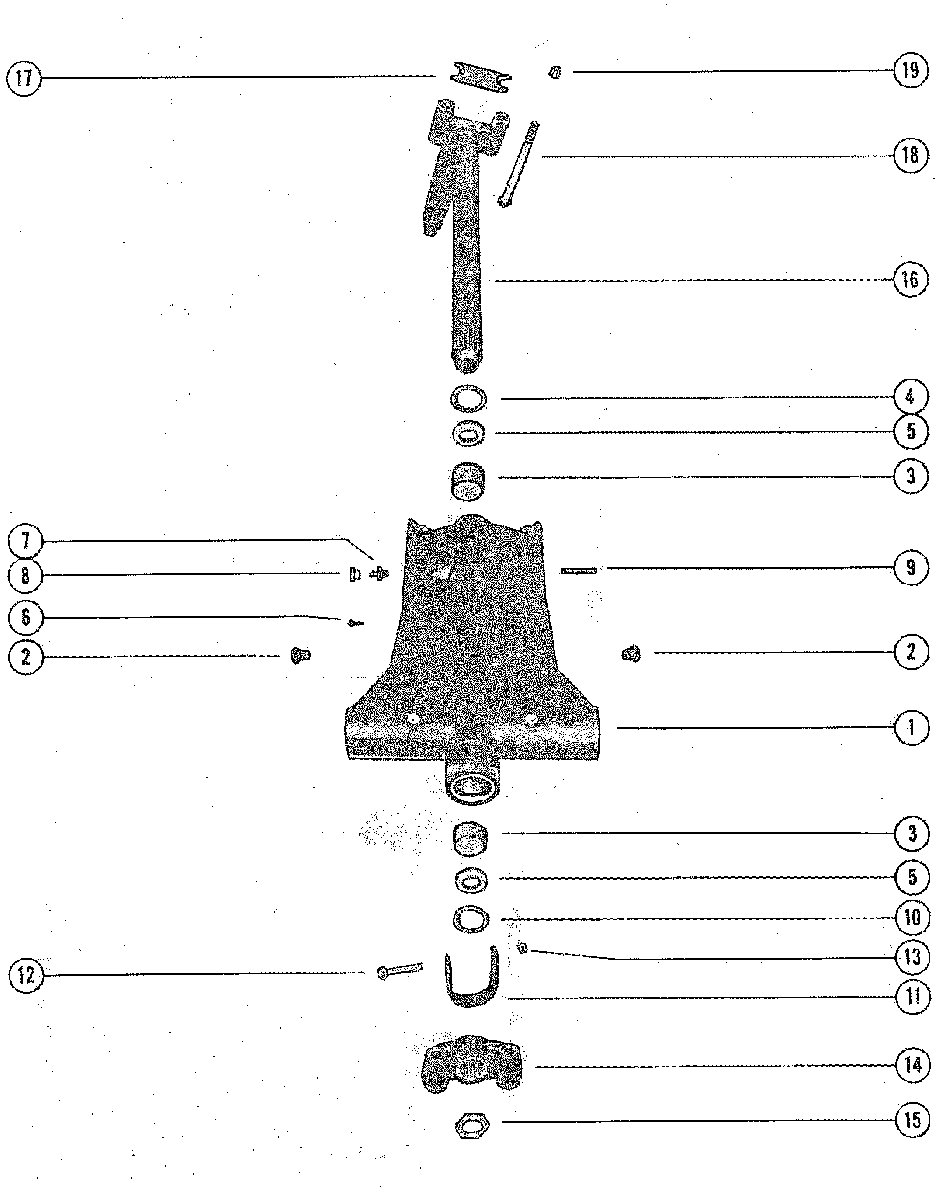

SWIVEL BRACKET ASSEMBLY для Mercury - 850 (4 CYL.) 9011604 THRU 9110013

  • №
    Артикул
    Название
  • 1
    1490-7256A2 SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
    SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
  • 1
    1482-6386A4 SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
    SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
  • 2
    23-69132 BUSHING, REVERSE LOCK PIVOT SHAFT
    UNITED STATES 4092965 AND UP
    AUSTRALIA 8025615 AND UP
    BELGIUM 9069879 AND UP
    CANADA 7044108 AND UP
    BUSHING, REVERSE LOCK PIVOT SHAFT
    UNITED STATES 4092965 AND UP
    AUSTRALIA 8025615 AND UP
    BELGIUM 9069879 AND UP
    CANADA 7044108 AND UP
  • 3
    23-69341 BUSHING , SWIVEL BRACKET
    UNITED STATES 4092965 AND UP
    AUSTRALIA 8025615 AND UP
    BELGIUM 9069879 AND UP
    CANADA 7044108 AND UP
    BUSHING , SWIVEL BRACKET
    UNITED STATES 4092965 AND UP
    AUSTRALIA 8025615 AND UP
    BELGIUM 9069879 AND UP
    CANADA 7044108 AND UP
  • 4
    12-69342 WASHER, SWIVEL PIN - UPPER
    UNITED STATES 4092965 AND UP
    AUSTRALIA 8025615 AND UP
    BELGIUM 9069879 AND UP
    CANADA 7044108 AND UP
    WASHER, SWIVEL PIN - UPPER
    UNITED STATES 4092965 AND UP
    AUSTRALIA 8025615 AND UP
    BELGIUM 9069879 AND UP
    CANADA 7044108 AND UP
  • 5
    26-37448 OIL SEAL, SWIVEL BRACKET
    OIL SEAL, SWIVEL BRACKET
  • 6
    10-47828 SCREW, DRIVE - SWIVEL BRACKET
    SCREW, DRIVE - SWIVEL BRACKET
  • 7
    22-69059 FITTING, GREASE
    FITTING, GREASE
  • 8
    19-77633Q LUBRICAP, SWIVEL BRACKET GREASE FITTING
    LUBRICAP, SWIVEL BRACKET GREASE FITTING
  • 9
    17-25598 PIN, REVERSE LOCK SPRING ATTACHING
    PIN, REVERSE LOCK SPRING ATTACHING
  • 10
    12-37429 WASHER, SWIVEL PIN - LOWER
    WASHER, SWIVEL PIN - LOWER
  • 11
    28205T STRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKET
    STRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKET
  • 12
    10-28200 SCREW, STRAP STOP TO DRIVE SHAFT HOUSING (2 7/8")
    SCREW, STRAP STOP TO DRIVE SHAFT HOUSING (2 7/8")
  • 13
    11-25269 NUT, STRAP STOP FASTENING SCREW
    NUT, STRAP STOP FASTENING SCREW
  • 14
    73984T YOKE, BOTTOM
    YOKE, BOTTOM
  • 15
    11-37424 NUT, SWIVEL PIN RETAINING
    NUT, SWIVEL PIN RETAINING
  • 16
    17-49841A1 SWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT)
    SWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT)
  • 16
    17-49840A1 SWIVEL PIN AND STEERING ARM ASSEMBLY (LONG SHAFT)
    SWIVEL PIN AND STEERING ARM ASSEMBLY (LONG SHAFT)
  • 17
    28203 BUMPER, STEERING ARM
    BUMPER, STEERING ARM
  • 18
    10-49554 BOLT, STEERING ARM TO UPPER MOUNT (5 7/8")
    BOLT, STEERING ARM TO UPPER MOUNT (5 7/8")
  • 19
    11-34933 NUT, STEERING ARM BOLT FASTENING
    NUT, STEERING ARM BOLT FASTENING
