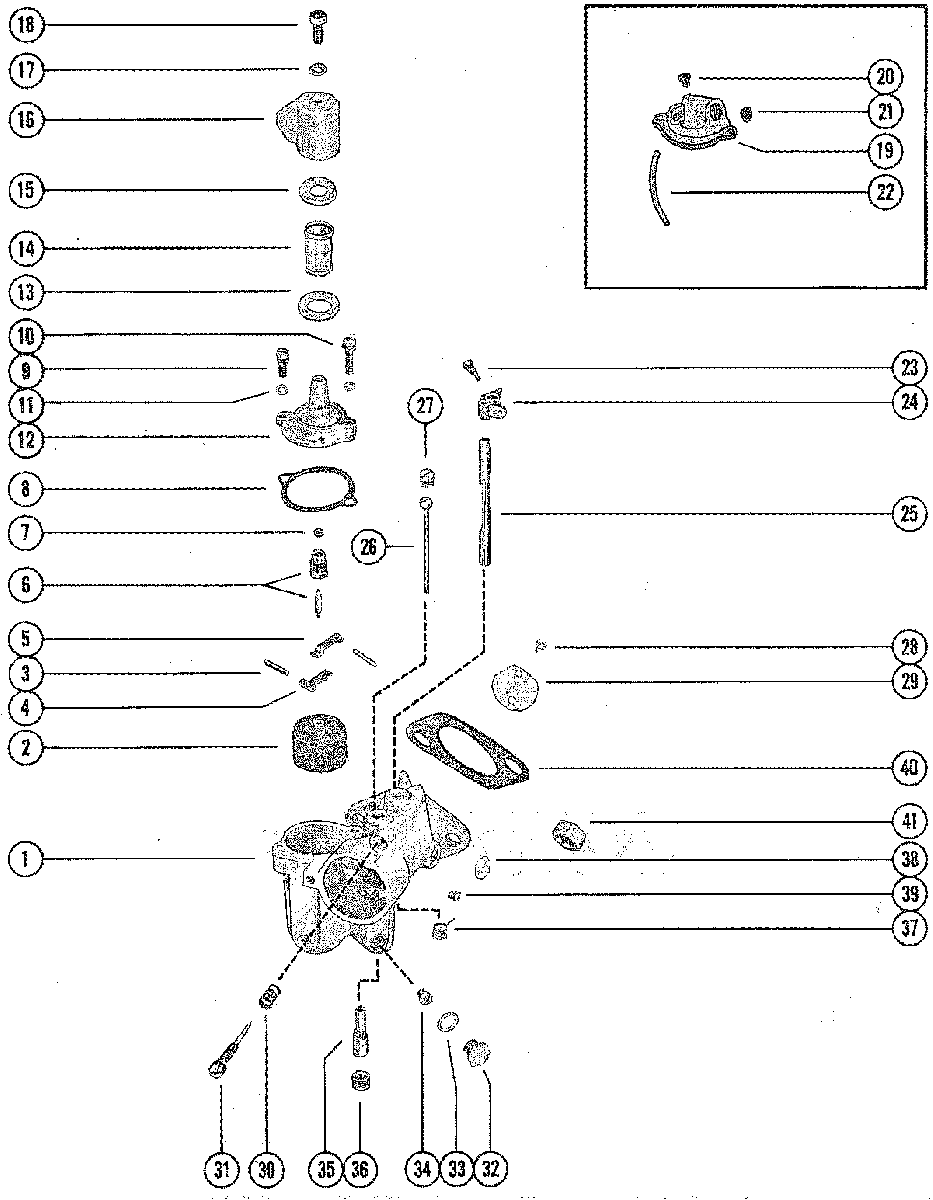

CARBURETOR ASSEMBLY для Mercury - 850 (4 CYL.) 9011604 THRU 9110013

  • №
    Артикул
    Название
  • 1
    1352-4510A27 CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    0 ₽
  • 1
    1352-4510A30 CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 3865695 THRU 4092964
    AUSTRALIA 8017140 THRU 8025614
    BELGIUM 9053364 THRU 9069878
    CANADA 7033028 THRU 7044107
    CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 3865695 THRU 4092964
    AUSTRALIA 8017140 THRU 8025614
    BELGIUM 9053364 THRU 9069878
    CANADA 7033028 THRU 7044107
    0 ₽
  • 1
    1368-5688A4 CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 4092965 AND UP
    AUSTRALIA 8025615 AND UP
    BELGIUM 9069879 AND UP
    CANADA 7044108 AND UP
    CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 4092965 AND UP
    AUSTRALIA 8025615 AND UP
    BELGIUM 9069879 AND UP
    CANADA 7044108 AND UP
    0 ₽
  • 2
    1395-8673 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
    1 490 ₽
  • 3
    90-8M0143356 PIN, FLOAT LEVER PINION
    PIN, FLOAT LEVER PINION
    0 ₽
  • 4
    90-8M0143356 LEVER, FLOAT (LOWER)
    LEVER, FLOAT (LOWER)
    0 ₽
  • 5
    90-8M0143356 LEVER, FLOAT (UPPER)
    LEVER, FLOAT (UPPER)
    0 ₽
  • 6
    1395-83181 INLET NEEDLE, SEAT AND GASKET
    INLET NEEDLE, SEAT AND GASKET
    1 130 ₽
  • 7
    90-8M0143356 GASKET, INLET SEAT
    GASKET, INLET SEAT
    0 ₽
  • 8
    90-8M0143356 GASKET, FLOAT BOWL COVER
    GASKET, FLOAT BOWL COVER
    0 ₽
  • 9
    10-52195 SCREW, FLOAT BOWL COVER (SHORT)
    SCREW, FLOAT BOWL COVER (SHORT)
    0 ₽
  • 10
    10-52196 SCREW, FLOAT BOWL COVER (LONG)
    SCREW, FLOAT BOWL COVER (LONG)
    0 ₽
  • 11
    13-26995 LOCKWASHER, FLOAT BOWL COVER SCREW
    LOCKWASHER, FLOAT BOWL COVER SCREW
    60 ₽
  • 12
    1399-4559 COVER, FLOAT BOWL
    UNITED STATES 4092964 AND BELOW
    AUSTRALIA 8025614 AND BELOW
    BELGIUM 9069878 AND BELOW
    CANADA 7044107 AND BELOW
    COVER, FLOAT BOWL
    UNITED STATES 4092964 AND BELOW
    AUSTRALIA 8025614 AND BELOW
    BELGIUM 9069878 AND BELOW
    CANADA 7044107 AND BELOW
    0 ₽
  • 13
    27-25851 GASKET, STRAINER COVER (LARGE)
    UNITED STATES 4092964 AND BELOW
    AUSTRALIA 8025614 AND BELOW
    BELGIUM 9069878 AND BELOW
    CANADA 7044107 AND BELOW
    GASKET, STRAINER COVER (LARGE)
    UNITED STATES 4092964 AND BELOW
    AUSTRALIA 8025614 AND BELOW
    BELGIUM 9069878 AND BELOW
    CANADA 7044107 AND BELOW
    100 ₽
  • 14
    1399-3938 SCREEN, FILTER
    UNITED STATES 4092964 AND BELOW
    AUSTRALIA 8025614 AND BELOW
    BELGIUM 9069878 AND BELOW
    CANADA 7044107 AND BELOW
    SCREEN, FILTER
    UNITED STATES 4092964 AND BELOW
    AUSTRALIA 8025614 AND BELOW
    BELGIUM 9069878 AND BELOW
    CANADA 7044107 AND BELOW
    0 ₽
  • 15
    27-25849 GASKET, STRAINER COVER (SMALL)
    UNITED STATES 4092964 AND BELOW
    AUSTRALIA 8025614 AND BELOW
    BELGIUM 9069878 AND BELOW
    CANADA 7044107 AND BELOW
    GASKET, STRAINER COVER (SMALL)
    UNITED STATES 4092964 AND BELOW
    AUSTRALIA 8025614 AND BELOW
    BELGIUM 9069878 AND BELOW
    CANADA 7044107 AND BELOW
    90 ₽
  • 16
    1399-4791A1 COVER, STRAINER (UPPER CARBURETOR)
    UNITED STATES 4092964 AND BELOW
    AUSTRALIA 8025614 AND BELOW
    BELGIUM 9069878 AND BELOW
    CANADA 7044107 AND BELOW
    COVER, STRAINER (UPPER CARBURETOR)
    UNITED STATES 4092964 AND BELOW
    AUSTRALIA 8025614 AND BELOW
    BELGIUM 9069878 AND BELOW
    CANADA 7044107 AND BELOW
    0 ₽
  • 16
    1399-4791A1 COVER, STRAINER (LOWER CARBURETOR)
    UNITED STATES 4092964 AND BELOW
    AUSTRALIA 8025614 AND BELOW
    BELGIUM 9069878 AND BELOW
    CANADA 7044107 AND BELOW
    COVER, STRAINER (LOWER CARBURETOR)
    UNITED STATES 4092964 AND BELOW
    AUSTRALIA 8025614 AND BELOW
    BELGIUM 9069878 AND BELOW
    CANADA 7044107 AND BELOW
    0 ₽
  • 17
    90-8M0143356 GASKET, STRAINER COVER SCREW
    UNITED STATES 4092964 AND BELOW
    AUSTRALIA 8025614 AND BELOW
    BELGIUM 9069878 AND BELOW
    CANADA 7044107 AND BELOW
    GASKET, STRAINER COVER SCREW
    UNITED STATES 4092964 AND BELOW
    AUSTRALIA 8025614 AND BELOW
    BELGIUM 9069878 AND BELOW
    CANADA 7044107 AND BELOW
    0 ₽
  • 18
    10-25822 SCREW, STRAINER COVER FASTENING
    UNITED STATES 4092964 AND BELOW
    AUSTRALIA 8025614 AND BELOW
    BELGIUM 9069878 AND BELOW
    CANADA 7044107 AND BELOW
    SCREW, STRAINER COVER FASTENING
    UNITED STATES 4092964 AND BELOW
    AUSTRALIA 8025614 AND BELOW
    BELGIUM 9069878 AND BELOW
    CANADA 7044107 AND BELOW
    0 ₽
  • 19
    1395-5680 COVER, FLOAT BOWL
    UNITED STATES 4092965 AND UP
    AUSTRALIA 8025615 AND UP
    BELGIUM 9069879 AND UP
    CANADA 7044108 AND UP
    COVER, FLOAT BOWL
    UNITED STATES 4092965 AND UP
    AUSTRALIA 8025615 AND UP
    BELGIUM 9069879 AND UP
    CANADA 7044108 AND UP
    0 ₽
  • 20
    1395-5733 JET, BOWL VENT
    UNITED STATES 4092965 AND UP
    AUSTRALIA 8025615 AND UP
    BELGIUM 9069879 AND UP
    CANADA 7044108 AND UP
    JET, BOWL VENT
    UNITED STATES 4092965 AND UP
    AUSTRALIA 8025615 AND UP
    BELGIUM 9069879 AND UP
    CANADA 7044108 AND UP
    610 ₽
  • 21
    1395-4805 SCREEN, FILTER
    UNITED STATES 4092965 AND UP
    AUSTRALIA 8025615 AND UP
    BELGIUM 9069879 AND UP
    CANADA 7044108 AND UP
    SCREEN, FILTER
    UNITED STATES 4092965 AND UP
    AUSTRALIA 8025615 AND UP
    BELGIUM 9069879 AND UP
    CANADA 7044108 AND UP
    0 ₽
  • 22
    32-892024122 HOSE, ECONOMIZER
    UNITED STATES 4092965 AND UP
    AUSTRALIA 8025615 AND UP
    BELGIUM 9069879 AND UP
    CANADA 7044108 AND UP
    HOSE, ECONOMIZER
    UNITED STATES 4092965 AND UP
    AUSTRALIA 8025615 AND UP
    BELGIUM 9069879 AND UP
    CANADA 7044108 AND UP
    4 230 ₽
  • 23
    1395-6027 SCREW, THROTTLE STOP LEVER
    SCREW, THROTTLE STOP LEVER
    250 ₽
  • 24
    8146791 LEVER, THROTTLE STOP (SEE NOTE BOTTOM)
    LEVER, THROTTLE STOP (SEE NOTE BOTTOM)
    0 ₽
  • 25
    1395-7942 SHAFT, THROTTLE
    SHAFT, THROTTLE
    0 ₽
  • 26
    90-8M0143356 TUBE, IDLE
    TUBE, IDLE
    0 ₽
  • 27
    1395-4540 SCREW, BODY (IDLE TUBE)
    SCREW, BODY (IDLE TUBE)
    650 ₽
  • 28
    90-8M0143356 SCREW AND LOCKWASHER, THROTTLE SHUTTER
    SCREW AND LOCKWASHER, THROTTLE SHUTTER
    0 ₽
  • 29
    1395-9017 SHUTTER, THROTTLE
    SHUTTER, THROTTLE
    0 ₽
  • 30
    90-8M0143356 SPRING, IDLE ADJUSTMENT SCREW
    SPRING, IDLE ADJUSTMENT SCREW
    0 ₽
  • 31
    1399-3515 SCREW, IDLE ADJUSTMENTS
    SCREW, IDLE ADJUSTMENTS
    0 ₽
  • 32
    1395-4541 SCREW, PLUG - MAIN FUEL JET CHANNEL
    SCREW, PLUG - MAIN FUEL JET CHANNEL
    1 180 ₽
  • 33
    90-8M0143356 GASKET, JET CHANNEL PLUG SCREW
    GASKET, JET CHANNEL PLUG SCREW
    0 ₽
  • 34
    1399-3518 JET, MAIN FUEL (.082)
    JET, MAIN FUEL (.082)
    630 ₽
  • 34
    1395-6201 JET, MAIN FUEL (.080) - STANDARD
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    JET, MAIN FUEL (.080) - STANDARD
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    720 ₽
  • 34
    1399-3520 JET, MAIN FUEL (.0785)
    JET, MAIN FUEL (.0785)
    0 ₽
  • 34
    1399-3796 JET, MAIN FUEL (.076) - STANDARD
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
    JET, MAIN FUEL (.076) - STANDARD
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
    600 ₽
  • 35
    90-8M0143356 NOZZLE, MAIN
    NOZZLE, MAIN
    0 ₽
  • 36
    1395-4542 SCREW, PLUG - MAIN NOZZLE
    SCREW, PLUG - MAIN NOZZLE
    0 ₽
  • 37
    90-8M0143356 SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR)
    SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR)
    0 ₽
  • 37
    90-8M0143356 SPRING, THROTTLE SHAFT RETURN (LOWER CARBURETOR)
    SPRING, THROTTLE SHAFT RETURN (LOWER CARBURETOR)
    0 ₽
  • 38
    90-8M0143356 WELCH PLUG, BODY CHANNEL
    WELCH PLUG, BODY CHANNEL
    0 ₽
  • 39
    1395-4543 SCREW, BODY CHANNEL
    SCREW, BODY CHANNEL
    0 ₽
  • 39
    1395-879194024 GASKET AND PACKING SET (1 PER CARBURETOR)
    UNITED STATES 4092964 AND BELOW
    AUSTRALIA 8025614 AND BELOW
    BELGIUM 9069878 AND BELOW
    CANADA 7044107 AND BELOW
    GASKET AND PACKING SET (1 PER CARBURETOR)
    UNITED STATES 4092964 AND BELOW
    AUSTRALIA 8025614 AND BELOW
    BELGIUM 9069878 AND BELOW
    CANADA 7044107 AND BELOW
    640 ₽
  • 39
    1395-879194024 GASKET AND PACKING SET (1 PER CARBURETOR)
    UNITED STATES 4092965 AND UP
    AUSTRALIA 8025615 AND UP
    BELGIUM 9069879 AND UP
    CANADA 7044108 AND UP
    GASKET AND PACKING SET (1 PER CARBURETOR)
    UNITED STATES 4092965 AND UP
    AUSTRALIA 8025615 AND UP
    BELGIUM 9069879 AND UP
    CANADA 7044108 AND UP
    640 ₽
  • 39
    1395-51091 REPAIR PARTS KIT (1 PER CARBURETOR)
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    REPAIR PARTS KIT (1 PER CARBURETOR)
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    6 790 ₽
  • 39
    1395-51091 REPAIR PARTS KIT (1 PER CARBURETOR)
    UNITED STATES 3865695 THRU 4092964
    AUSTRALIA 8017140 THRU 8025614
    BELGIUM 9053364 THRU 9069878
    CANADA 7033028 THRU 7044107
    REPAIR PARTS KIT (1 PER CARBURETOR)
    UNITED STATES 3865695 THRU 4092964
    AUSTRALIA 8017140 THRU 8025614
    BELGIUM 9053364 THRU 9069878
    CANADA 7033028 THRU 7044107
    6 790 ₽
  • 39
    1395-51091 REPAIR PARTS KIT (1 PER CARBURETOR)
    UNITED STATES 4092965 AND UP
    AUSTRALIA 8025615 AND UP
    BELGIUM 9069879 AND UP
    CANADA 7044108 AND UP
    REPAIR PARTS KIT (1 PER CARBURETOR)
    UNITED STATES 4092965 AND UP
    AUSTRALIA 8025615 AND UP
    BELGIUM 9069879 AND UP
    CANADA 7044108 AND UP
    6 790 ₽
  • 40
    27-481641 GASKET, CARBURETOR FLANGE
    (Contents of Carb Repair Kit)
    GASKET, CARBURETOR FLANGE
    (Contents of Carb Repair Kit)
    150 ₽
  • 41
    11-29250 NUT, CARBURETOR MOUNTING STUD
    NUT, CARBURETOR MOUNTING STUD
    180 ₽
