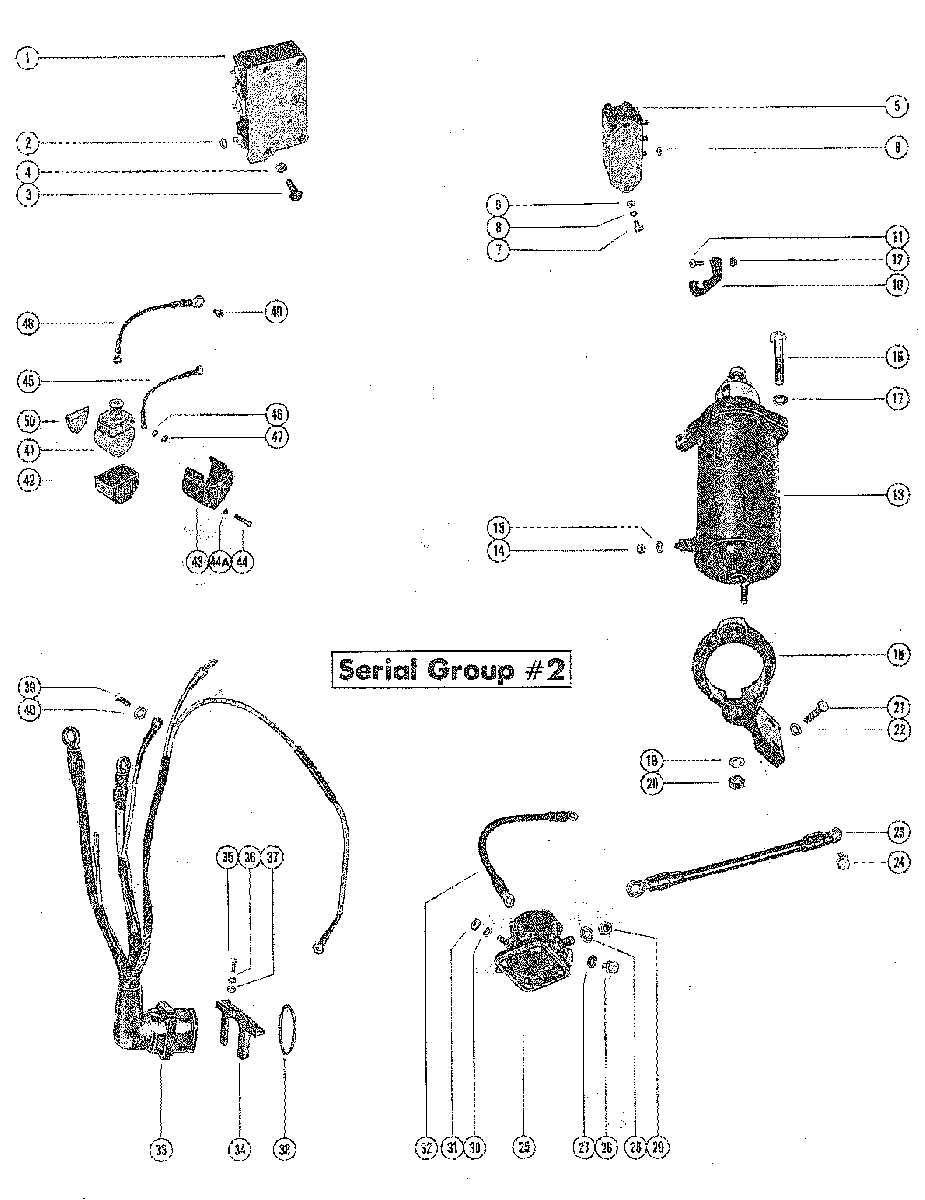

STARTER MOTOR AND WIRING HARNESS (SERIAL GROUP #2) для Mercury - 850 (4 CYL.) 9011604 THRU 9110013
-
№АртикулНазвание
-
1332-2986A27 SWITCH BOX ASSEMBLY, COMPLETESWITCH BOX ASSEMBLY, COMPLETE
-
211-45076 NUT, SWITCH BOX TERMINALNUT, SWITCH BOX TERMINAL
-
310-64279 SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (3/4")SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (3/4")
-
411-20184 NUT, SWITCH BOX TO FRONT SUPPORT BRACKET SCREWNUT, SWITCH BOX TO FRONT SUPPORT BRACKET SCREW
-
58M0058226 RECTIFIER ASSEMBLY, COMPLETERECTIFIER ASSEMBLY, COMPLETE
-
611-45076 NUT, RECTIFIER TERMINALNUT, RECTIFIER TERMINAL
-
710-30405 SCREW, RECTIFIER TO FRONT SUPPORT BRACKET (5/8")SCREW, RECTIFIER TO FRONT SUPPORT BRACKET (5/8")
-
812-30164 WASHER, RECTIFIER MOUNTING SCREWWASHER, RECTIFIER MOUNTING SCREW
-
911-46438 NUT, RECTIFIER MOUNTING SCREWNUT, RECTIFIER MOUNTING SCREW
-
1059757 BRACKET, RETAINER - HIGH TENSION LEADBRACKET, RETAINER - HIGH TENSION LEAD
-
1110-28636 SCREW, RETAINER BRACKET TO FRONT SUPPORT TO BRACKET (3/4")SCREW, RETAINER BRACKET TO FRONT SUPPORT TO BRACKET (3/4")
-
1212-29245 WASHER, RETAINER BRACKET FASTENING SCREWWASHER, RETAINER BRACKET FASTENING SCREW
-
1350-67341 STARTER MOTOR ASSEMBLY
(FOR BREAKDOWN, SEE ACCESSORY SECTIONSTARTER MOTOR ASSEMBLY
(FOR BREAKDOWN, SEE ACCESSORY SECTION -
1411-64015 NUT, STARTER MOTOR TERMINALNUT, STARTER MOTOR TERMINAL
-
1513-26992 LOCKWASHER, STARTER MOTOR TERMINALLOCKWASHER, STARTER MOTOR TERMINAL
-
1610-73657 SCREW, STARTER MOTOR TO CRANKCASE FLANGE (1 1/2")SCREW, STARTER MOTOR TO CRANKCASE FLANGE (1 1/2")
-
1610-31984 SCREW, STARTER MOTOR TO CRANKCASE FLANGE (1 3/8")SCREW, STARTER MOTOR TO CRANKCASE FLANGE (1 3/8")
-
1713-26993 LOCKWASHER, STARTER MOTOR SCREWLOCKWASHER, STARTER MOTOR SCREW
-
1867331 BRACKET, SUPPORT - STARTER MOTORBRACKET, SUPPORT - STARTER MOTOR
-
1913-26992 LOCKWASHER, THRU BOLT - BRACKET TO STARTER MOTORLOCKWASHER, THRU BOLT - BRACKET TO STARTER MOTOR
-
2011-20013 NUT, THRU BOLT - BRACKET TO STARTER MOTORNUT, THRU BOLT - BRACKET TO STARTER MOTOR
-
2110-37562 SCREW, STARTER MOTOR BRACKET TO CRANKCASE (1")SCREW, STARTER MOTOR BRACKET TO CRANKCASE (1")
-
2213-26993 LOCKWASHER, STARTER MOTOR BRACKET FASTENING SCREWLOCKWASHER, STARTER MOTOR BRACKET FASTENING SCREW
-
2384-93389A12 WIRE, STARTER MOTOR TO SUPPORT BRACKETWIRE, STARTER MOTOR TO SUPPORT BRACKET
-
2410-69035 SCREW, GROUND WIRE TO STARTER MOTOR (5/8")SCREW, GROUND WIRE TO STARTER MOTOR (5/8")
-
2589-853654A1 STARTER SOLENOIDSTARTER SOLENOID
-
2610-38601 SCREW, STARTER SOLENOID TO COIL BRACKET (5/8")SCREW, STARTER SOLENOID TO COIL BRACKET (5/8")
-
2713-26992 LOCKWASHER, STARTER SOLENOID MOUNTING SCREWLOCKWASHER, STARTER SOLENOID MOUNTING SCREW
-
2813-26993 LOCKWASHER, SOLENOID TERMINAL (5/16")LOCKWASHER, SOLENOID TERMINAL (5/16")
-
2911-68292 NUT, SOLENOID TERMINAL - INSIDE (5/16")NUT, SOLENOID TERMINAL - INSIDE (5/16")
-
3013-26996 LOCKWASHER, SOLENOID TERMINAL (#10)LOCKWASHER, SOLENOID TERMINAL (#10)
-
3111-68219 NUT, SOLENOID TERMINAL (#10)NUT, SOLENOID TERMINAL (#10)
-
3284-93389A1 CABLE, STARTER SOLENOID TO STARTER MOTORCABLE, STARTER SOLENOID TO STARTER MOTOR
-
3384-66055A1 WIRING HARNESS (INTERNAL)WIRING HARNESS (INTERNAL)
-
3454-76368 CLAMP, WIRING HARNESS TO BOTTOM COWLCLAMP, WIRING HARNESS TO BOTTOM COWL
-
3510-690201 SCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")SCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")
-
3613-26993 LOCKWASHER, WIRING HARNESS CLAMP SCREWLOCKWASHER, WIRING HARNESS CLAMP SCREW
-
3712-30164 WASHER, WIRING HARNESS CLAMP SCREWWASHER, WIRING HARNESS CLAMP SCREW
-
3824-28975 SPRING, GARTER - INTERNAL WIRING HARNESSSPRING, GARTER - INTERNAL WIRING HARNESS
-
3910-98256 SCREW, WIRING HARNESS LEAD TO BOTTOM COWL (1/2")SCREW, WIRING HARNESS LEAD TO BOTTOM COWL (1/2")
-
4013-26992 LOCKWASHER, WIRING HARNESS LEAD SCREWLOCKWASHER, WIRING HARNESS LEAD SCREW
-
41332-4895T2 IGNITION COIL ASSEMBLYIGNITION COIL ASSEMBLY
-
4272015 PAD, RUBBER - IGNITION COILPAD, RUBBER - IGNITION COIL
-
4363195 COVER, IGNITION COILCOVER, IGNITION COIL
-
4410-88856 SCREW, COIL TO CYLINDER BLOCK (2")SCREW, COIL TO CYLINDER BLOCK (2")
-
44A12-30164 WASHER, COIL SCREWWASHER, COIL SCREW
-
4584-60466A1 CABLE ASSEMBLYCABLE ASSEMBLY
-
4613-26996 LOCKWASHER, IGNITION COIL TERMINAL (#10)LOCKWASHER, IGNITION COIL TERMINAL (#10)
-
4711-45076 NUT, IGNITION COIL TERMINAL (#10)NUT, IGNITION COIL TERMINAL (#10)
-
4884-66054A1 CABLE ASSEMBLY, COIL TO SWITCH BOXCABLE ASSEMBLY, COIL TO SWITCH BOX
-
4910-62568 SCREW, IGNITION COIL WIRE TO SWITCH BOX (3/8")SCREW, IGNITION COIL WIRE TO SWITCH BOX (3/8")
-
5069190 PLATE, COIL MOUNTING
UNITED STATES 4092965 AND UP
AUSTRALIA 8025615 AND UP
BELGIUM 9069879 AND UP
CANADA 7044108 AND UPPLATE, COIL MOUNTING
UNITED STATES 4092965 AND UP
AUSTRALIA 8025615 AND UP
BELGIUM 9069879 AND UP
CANADA 7044108 AND UP
