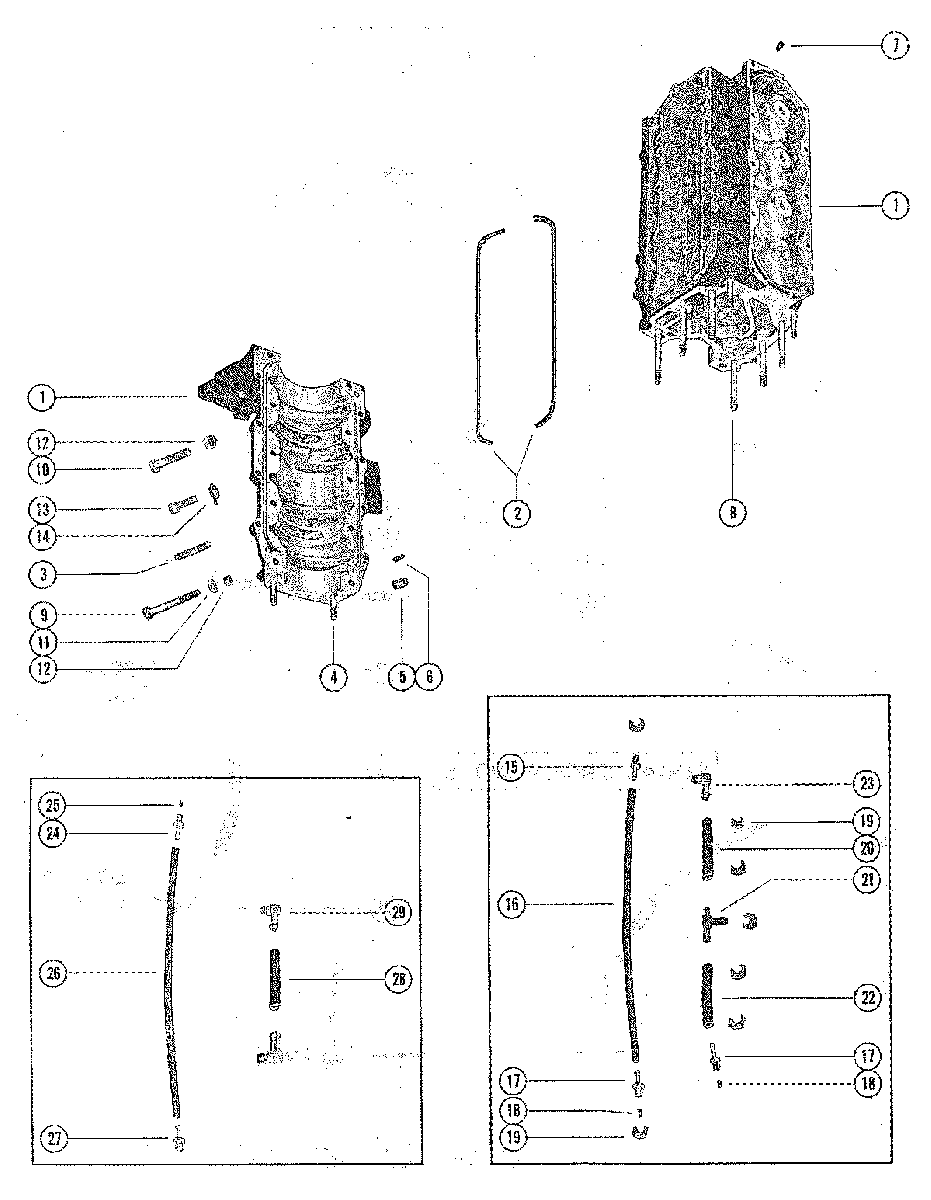

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 850 (4 CYL.) 9011604 THRU 9110013

  • №
    Артикул
    Название
  • 1
    847-5340A4 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    0 ₽
  • 1
    847-5340A4 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
    CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
    0 ₽
  • 2
    27-53650 GASKET, CRANKCASE TO CYLINDER BLOCK
    GASKET, CRANKCASE TO CYLINDER BLOCK
    660 ₽
  • 3
    16-64936 STUD, CARBURETOR MOUNTING (1 3/16")
    STUD, CARBURETOR MOUNTING (1 3/16")
    0 ₽
  • 4
    16-64281 STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 7/8")
    STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 7/8")
    0 ₽
  • 5
    17-43044 PIN, DOWEL - CRANKCASE TO CYLINDER BLOCK
    PIN, DOWEL - CRANKCASE TO CYLINDER BLOCK
    200 ₽
  • 6
    17-63779 PIN, DOWEL - CYLINDER BLOCK TO MAIN BEARING
    PIN, DOWEL - CYLINDER BLOCK TO MAIN BEARING
    290 ₽
  • 7
    66517 RESTRICTOR, CRANKCASE BLEED
    RESTRICTOR, CRANKCASE BLEED
    170 ₽
  • 8
    16-64282 STUD, CYLINDER BLOCK EXHAUST EXTENSION PLATE (4")
    STUD, CYLINDER BLOCK EXHAUST EXTENSION PLATE (4")
    0 ₽
  • 9
    10-53460 SCREW, CRANKCASE TO CYLINDER BLOCK (2 5/8")
    SCREW, CRANKCASE TO CYLINDER BLOCK (2 5/8")
    0 ₽
  • 9
    10-32293 SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4")
    180 ₽
  • 10
    10-69091 SCREW, CRANKCASE TO CYLINDER BLOCK (1 5/8")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1 5/8")
    0 ₽
  • 11
    12-22753 WASHER, CRANKCASE TO CYLINDER BLOCK SCREW (LOWER)
    WASHER, CRANKCASE TO CYLINDER BLOCK SCREW (LOWER)
    230 ₽
  • 12
    11-29250 NUT, CRANKCASE FASTENING SCREW
    NUT, CRANKCASE FASTENING SCREW
    180 ₽
  • 13
    10-20359 SCREW, CENTER MAIN BEARING LOCKING (1")
    SCREW, CENTER MAIN BEARING LOCKING (1")
    140 ₽
  • 14
    14-20091 TAB WASHER, BEARING LOCKING SCREW
    TAB WASHER, BEARING LOCKING SCREW
    140 ₽
  • 15
    22-65367 CONNECTOR, CYLINDER BLEED HOSE - UPPER
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    CONNECTOR, CYLINDER BLEED HOSE - UPPER
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    0 ₽
  • 16
    32-9938779 HOSE, UPPER CYLINDER BLEED (12")
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    HOSE, UPPER CYLINDER BLEED (12")
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    1 070 ₽
  • 17
    21-64871A2 CHECK VALVE ASSEMBLY, BLEED HOSE
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    CHECK VALVE ASSEMBLY, BLEED HOSE
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    0 ₽
  • 18
    21-42657A3 CHECK VALVE ASSEMBLY
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    CHECK VALVE ASSEMBLY
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    460 ₽
  • 19
    54-20387 CLAMP, BLEED HOSE TO CONNECTOR
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    CLAMP, BLEED HOSE TO CONNECTOR
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    2 050 ₽
  • 20
    32-8M0108355 TUBE, BALANCE - MAIN BEARING (6 1/4")
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    TUBE, BALANCE - MAIN BEARING (6 1/4")
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    5 260 ₽
  • 21
    22-130342 TEE, BLEED HOSE TO CYLINDER BLOCK - LOWER
    TEE, BLEED HOSE TO CYLINDER BLOCK - LOWER
    0 ₽
  • 22
    32-9938779 HOSE, CYLINDER BLEED - LOWER (6 1/2")
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    HOSE, CYLINDER BLEED - LOWER (6 1/2")
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    1 070 ₽
  • 23
    22-20781 ELBOW, BALANCE TUBE TO CRANKCASE
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    ELBOW, BALANCE TUBE TO CRANKCASE
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    0 ₽
  • 24
    21-42866 CHECK VALVE ASSEMBLY, BLEED HOSE - TOP
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
    CHECK VALVE ASSEMBLY, BLEED HOSE - TOP
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
    3 820 ₽
  • 25
    21-42657A3 CHECK VALVE ASSEMBLY
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
    CHECK VALVE ASSEMBLY
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
    460 ₽
  • 26
    32-9938779 HOSE, CYLINDER BLEED (15 1/2")
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
    HOSE, CYLINDER BLEED (15 1/2")
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
    1 070 ₽
  • 27
    21-64871A2 CHECK VALVE ASSEMBLY, BLEED HOSE - BOTTOM
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
    CHECK VALVE ASSEMBLY, BLEED HOSE - BOTTOM
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
    0 ₽
  • 28
    32-8M0108355 HOSE ASSEMBLY, BALANCE (6 1/4")
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
    HOSE ASSEMBLY, BALANCE (6 1/4")
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
    5 260 ₽
  • 29
    22-20781 ELBOW, BALANCE
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
    ELBOW, BALANCE
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
    0 ₽
