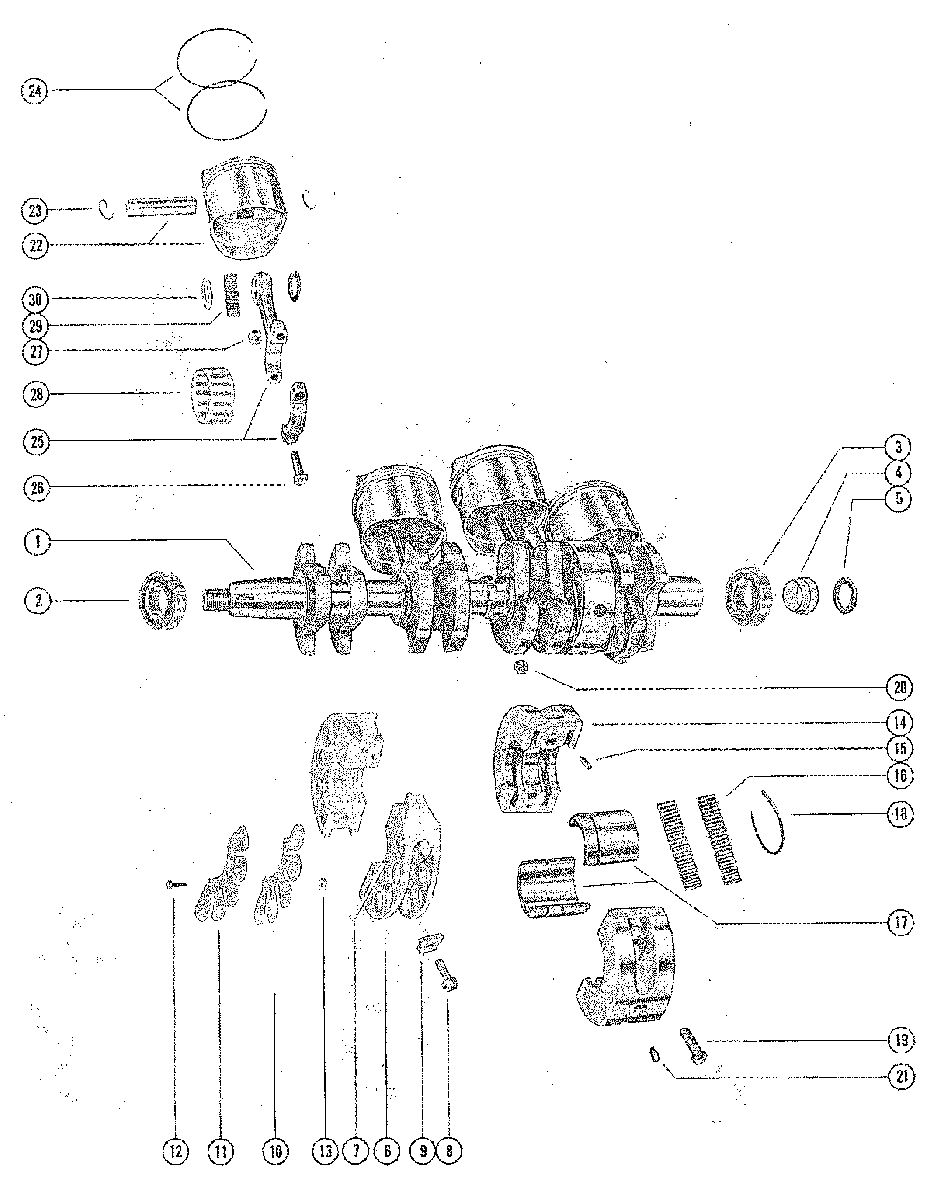

CRANKSHAFT, PISTON AND CONNECTING ROD для Mercury - 850 (4 CYL.) 9011604 THRU 9110013
-
№АртикулНазвание
-
1440-9074A2 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
230-62567T BEARING, BALL - UPPERBEARING, BALL - UPPER
-
330-63742T BEARING, BALL - LOWERBEARING, BALL - LOWER
-
454196A6 CARRIER ASSEMBLY, "O" RINGCARRIER ASSEMBLY, "O" RING
-
565800 PACKING, CARRIERPACKING, CARRIER
-
6540-5266T5 MAIN BEARING ASSEMBLY (VALVE TYPE)
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOWMAIN BEARING ASSEMBLY (VALVE TYPE)
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOW -
6540-5266T5 MAIN BEARING ASSEMBLY (VALVE TYPE)
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UPMAIN BEARING ASSEMBLY (VALVE TYPE)
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UP -
717-20032 DOWEL PIN, MAIN BEARINGDOWEL PIN, MAIN BEARING
-
810-45775 SCREW, MAIN BEARING CLAMPINGSCREW, MAIN BEARING CLAMPING
-
911-45774 NUT, MAIN BEARING CLAMPING SCREWNUT, MAIN BEARING CLAMPING SCREW
-
1034-56007A1 REED SET, MATCHED - MAIN BEARINGREED SET, MATCHED - MAIN BEARING
-
1134-56008 REED STOP, MAIN BEARING REED VALVESREED STOP, MAIN BEARING REED VALVES
-
1210-62204 SCREW, REED STOP MOUNTINGSCREW, REED STOP MOUNTING
-
1311-53153 NUT, REED STOP MOUNTING SCREWNUT, REED STOP MOUNTING SCREW
-
14535-3190A2 CENTER MAIN BEARING ASSEMBLY
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOWCENTER MAIN BEARING ASSEMBLY
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOW -
14535-5397A4 CENTER MAIN BEARING ASSEMBLY
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UPCENTER MAIN BEARING ASSEMBLY
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UP -
1517-20032 DOWEL PIN, CENTER MAIN BEARINGDOWEL PIN, CENTER MAIN BEARING
-
1629-714221 BEARING, NEEDLEBEARING, NEEDLE
-
1726113T RACE, OUTER (PAIR)RACE, OUTER (PAIR)
-
1853-26933 RING, SNAP - OUTER RACE CLAMPINGRING, SNAP - OUTER RACE CLAMPING
-
1910-22968 SCREW, CENTER MAIN BEARING CLAMPINGSCREW, CENTER MAIN BEARING CLAMPING
-
2011-20184 NUT, MAIN BEARING CLAMPING SCREWNUT, MAIN BEARING CLAMPING SCREW
-
2117-47246 DOWEL PIN (STEPPED)DOWEL PIN (STEPPED)
-
22774-9137A12 PISTON AND PISTON PIN ASSEMBLY
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOWPISTON AND PISTON PIN ASSEMBLY
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOW -
22774-9137A12 PISTON AND PISTON PIN ASSEMBLY
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UPPISTON AND PISTON PIN ASSEMBLY
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UP -
2353-857196 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
2439-78816A12 RING, PISTONRING, PISTON
-
25624-8101A3 CONNECTING ROD AND CAP ASSEMBLYCONNECTING ROD AND CAP ASSEMBLY
-
2610-54803 SCREW, CAP TO CONNECTING RODSCREW, CAP TO CONNECTING ROD
-
2711-49091 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
2831-62596A1 BEARING ASSEMBLY, CRANKPINBEARING ASSEMBLY, CRANKPIN
-
2929-47270 BEARING, NEEDLE - PISTON PINBEARING, NEEDLE - PISTON PIN
-
3012-8M0032839 WASHER, NEEDLE LOCATINGWASHER, NEEDLE LOCATING
-
30774-9137A13 PISTON AND PISTON PIN ASSEMBLY (.015)
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOWPISTON AND PISTON PIN ASSEMBLY (.015)
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOW -
30774-9137A13 PISTON AND PISTON PIN ASSEMBLY (.015)
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UPPISTON AND PISTON PIN ASSEMBLY (.015)
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UP -
3039-78811A12 RING, PISTON (.015)RING, PISTON (.015)
