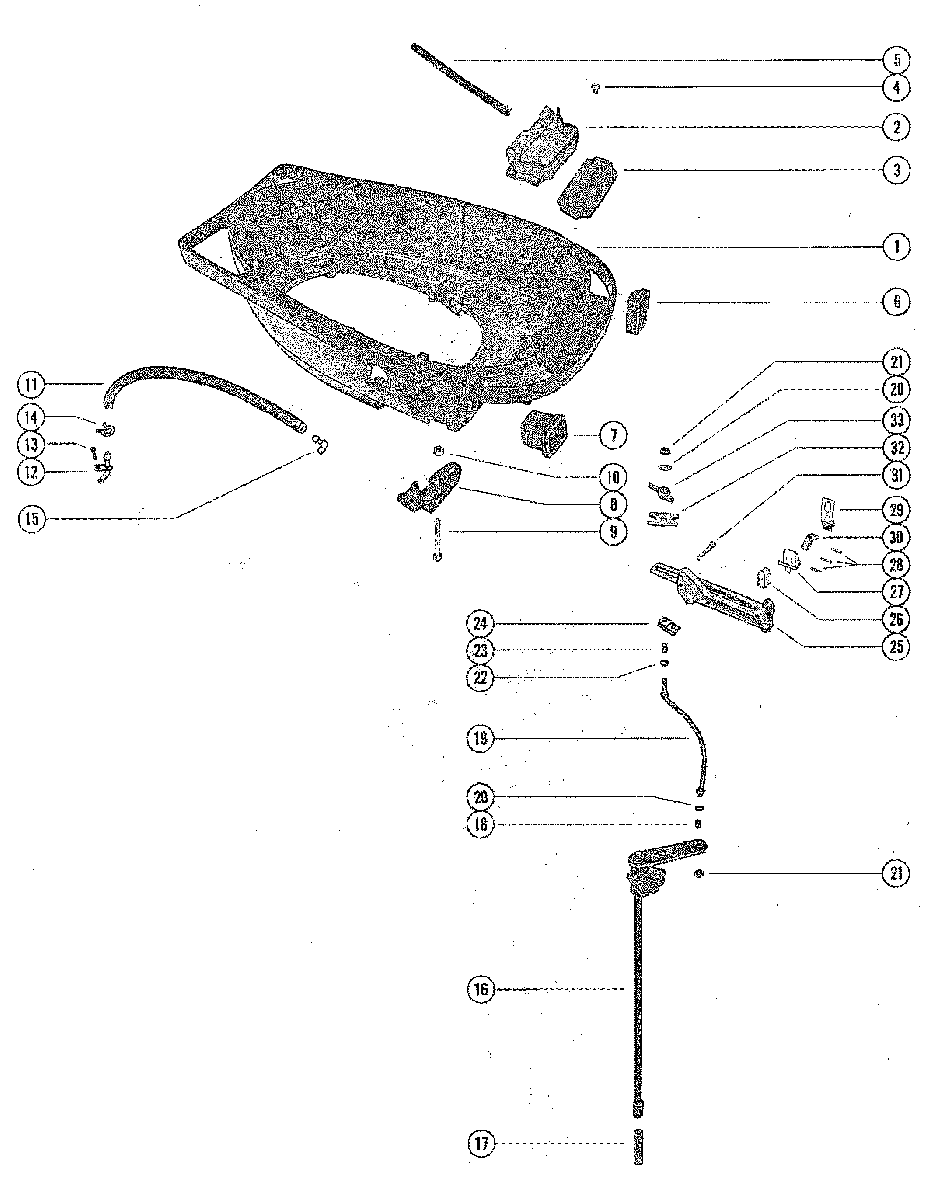

BOTTOM COWL AND SHIFT LINKAGE для Mercury - 850 (4 CYL.) 9011604 THRU 9110013

  • №
    Артикул
    Название
  • 1
    2115-3919 COWL, BOTTOM
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    COWL, BOTTOM
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
  • 1
    2115-8963A1 COWL, BOTTOM
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
    COWL, BOTTOM
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
  • 2
    52862A2 DRIP TRAY ASSEMBLY, BOTTOM COWL
    DRIP TRAY ASSEMBLY, BOTTOM COWL
  • 3
    37940 PAD, SOUND - DRIP TRAY
    PAD, SOUND - DRIP TRAY
  • 4
    10-48408 SCREW, DRIP TRAY TO BOTTOM COWL (1/2")
    SCREW, DRIP TRAY TO BOTTOM COWL (1/2")
  • 5
    32-8M0108355 HOSE, DRIP TRAY TO BOTTOM COWL (8")
    HOSE, DRIP TRAY TO BOTTOM COWL (8")
  • 6
    39616 BOOT, CONTROL CABLES - BOTTOM COWL
    BOOT, CONTROL CABLES - BOTTOM COWL
  • 7
    37637 BOOT, FUEL CONNECTOR - BOTTOM COWL
    BOOT, FUEL CONNECTOR - BOTTOM COWL
  • 8
    37445 SUPPORT, WIRING HARNESS - BOTTOM COWL
    SUPPORT, WIRING HARNESS - BOTTOM COWL
  • 9
    10-88488 SCREW, SUPPORT TO COWL (3 1/4")
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    SCREW, SUPPORT TO COWL (3 1/4")
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
  • 9
    10-69029 SCREW, SUPPORT TO COWL (1 3/4")
    SCREW, SUPPORT TO COWL (1 3/4")
  • 10
    11-826709109 NUT, WIRING HARNESS SUPPORT SCREW
    NUT, WIRING HARNESS SUPPORT SCREW
  • 11
    32-8M0108355 HOSE, TELL TALE - EXH. COVER TO BOTTOM COWL (16" OR 9")
    HOSE, TELL TALE - EXH. COVER TO BOTTOM COWL (16" OR 9")
  • 12
    52889 NOZZLE, TELL TALE HOSE TO BOTTOM COWL
    NOZZLE, TELL TALE HOSE TO BOTTOM COWL
  • 13
    10-48408 SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")
    SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")
  • 14
    54-48123 CLAMP, TELL TALE HOSE TO CONNECTOR AND ELBOW
    CLAMP, TELL TALE HOSE TO CONNECTOR AND ELBOW
  • 15
    22-996642 ELBOW, TELL TALE HOSE TO EXHAUST COVER
    ELBOW, TELL TALE HOSE TO EXHAUST COVER
  • 16
    60304A55 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
    SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
  • 16
    60304A54 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
    SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
  • 17
    93960A1 COUPLING, SHIFT SHAFT
    COUPLING, SHIFT SHAFT
  • 18
    23-26600 BUSHING, SHIFT SHAFT
    BUSHING, SHIFT SHAFT
  • 19
    73402 LINK ROD ASSEMBLY
    LINK ROD ASSEMBLY
  • 20
    12-35462 WASHER, LINK ROD (SHIFT LEVER END)
    WASHER, LINK ROD (SHIFT LEVER END)
  • 21
    11-826709109 NUT, LINK ROD
    NUT, LINK ROD
  • 22
    13-29720 WASHER, WAVE - LINK ROD
    WASHER, WAVE - LINK ROD
  • 23
    24-20099 SPRING, LINK ROD TO GUIDE BLOCK
    SPRING, LINK ROD TO GUIDE BLOCK
  • 24
    37896 GUIDE BLOCK, LINK ROD
    GUIDE BLOCK, LINK ROD
  • 25
    52732A6 BRACKET, ANCHOR - CONTROL CABLES
    BRACKET, ANCHOR - CONTROL CABLES
  • 26
    39519 CAP, BARREL RETAINER - ANCHOR BRACKET
    CAP, BARREL RETAINER - ANCHOR BRACKET
  • 27
    87609A1 LEVER, NYLON - SHIFT CABLE LOCKING
    LEVER, NYLON - SHIFT CABLE LOCKING
  • 28
    17-47175 PIN, LOCKING LEVER AND COVER FASTENING
    PIN, LOCKING LEVER AND COVER FASTENING
  • 29
    39667 COVER, NYLON - SHIFT CABLE
    COVER, NYLON - SHIFT CABLE
  • 30
    87609A1 LINK, LOCKING LEVER TO COVER
    LINK, LOCKING LEVER TO COVER
  • 31
    10-35386 SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1")
    SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1")
  • 32
    52100 WEAR PLATE, LINK ROD
    WEAR PLATE, LINK ROD
  • 33
    8M0036768 LATCH, CONTROL CABLE FASTENING - ANCHOR BRACKET
    LATCH, CONTROL CABLE FASTENING - ANCHOR BRACKET
