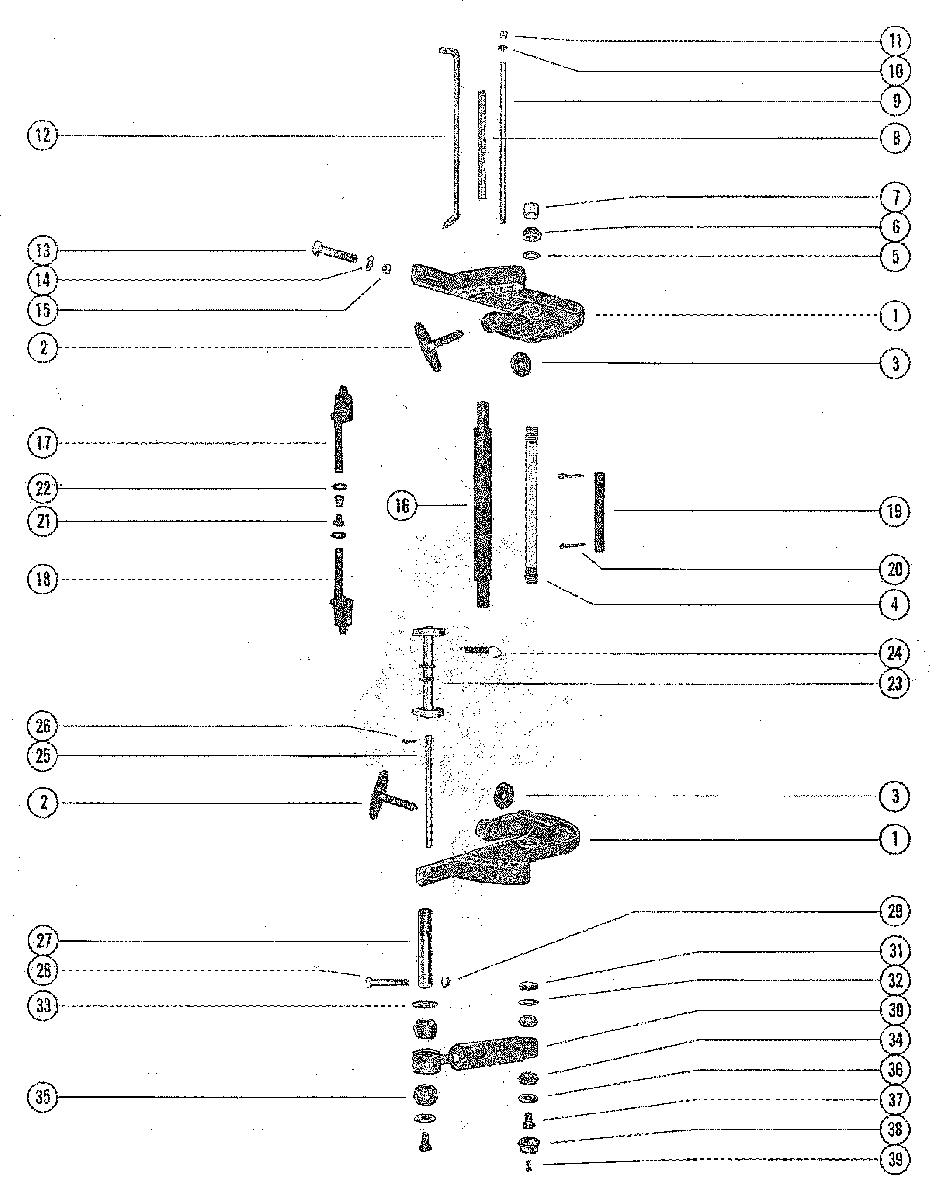

CLAMP BRACKET AND REVERSE LOCK для Mercury - 850 (4 CYL.) 9011604 THRU 9110013
-
№АртикулНазвание
-
11440-8394A1 CLAMP BRACKET ASSEMBLY
UNITED STATES 4092964 AND BELOW
AUSTRALIA 8025614 AND BELOW
BELGIUM 9069878 AND BELOW
CANADA 7044107 AND BELOWCLAMP BRACKET ASSEMBLY
UNITED STATES 4092964 AND BELOW
AUSTRALIA 8025614 AND BELOW
BELGIUM 9069878 AND BELOW
CANADA 7044107 AND BELOW -
228403A3 THUMB SCREW ASSEMBLY
UNITED STATES 4092964 AND BELOW
AUSTRALIA 8025614 AND BELOW
BELGIUM 9069878 AND BELOW
CANADA 7044107 AND BELOWTHUMB SCREW ASSEMBLY
UNITED STATES 4092964 AND BELOW
AUSTRALIA 8025614 AND BELOW
BELGIUM 9069878 AND BELOW
CANADA 7044107 AND BELOW -
312-28404 WASHER, THUMB SCREW
UNITED STATES 4092964 AND BELOW
AUSTRALIA 8025614 AND BELOW
BELGIUM 9069878 AND BELOW
CANADA 7044107 AND BELOWWASHER, THUMB SCREW
UNITED STATES 4092964 AND BELOW
AUSTRALIA 8025614 AND BELOW
BELGIUM 9069878 AND BELOW
CANADA 7044107 AND BELOW -
11440-8394A1 CLAMP BRACKET ASSEMBLY
UNITED STATES 4092965 AND UP
AUSTRALIA 8025615 AND UP
BELGIUM 9069879 AND UP
CANADA 7044108 AND UPCLAMP BRACKET ASSEMBLY
UNITED STATES 4092965 AND UP
AUSTRALIA 8025615 AND UP
BELGIUM 9069879 AND UP
CANADA 7044108 AND UP -
210-78492A1 THUMB SCREW ASSEMBLY
UNITED STATES 4092965 AND UP
AUSTRALIA 8025615 AND UP
BELGIUM 9069879 AND UP
CANADA 7044108 AND UPTHUMB SCREW ASSEMBLY
UNITED STATES 4092965 AND UP
AUSTRALIA 8025615 AND UP
BELGIUM 9069879 AND UP
CANADA 7044108 AND UP -
312-70988 WASHER, THUMB SCREW
UNITED STATES 4092965 AND UP
AUSTRALIA 8025615 AND UP
BELGIUM 9069879 AND UP
CANADA 7044108 AND UPWASHER, THUMB SCREW
UNITED STATES 4092965 AND UP
AUSTRALIA 8025615 AND UP
BELGIUM 9069879 AND UP
CANADA 7044108 AND UP -
48M0041936 TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKETTUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
-
512-52864 WASHER, CLAMP BRACKET TILT TUBEWASHER, CLAMP BRACKET TILT TUBE
-
611-858869 NUT, TILT TUBE FASTENINGNUT, TILT TUBE FASTENING
-
753078 CAP, PLASTIC - TILT TUBECAP, PLASTIC - TILT TUBE
-
823-59624 SPACER, CLAMP BRACKET STUDSPACER, CLAMP BRACKET STUD
-
916-59625 STUD, CLAMP BRACKETSTUD, CLAMP BRACKET
-
1013-26993 LOCKWASHER, CLAMP BRACKET STUDLOCKWASHER, CLAMP BRACKET STUD
-
1111-28770 NUT, CLAMP BRACKET STUDNUT, CLAMP BRACKET STUD
-
1217-8M0026068 TILT LOCK PIN ASSEMBLYTILT LOCK PIN ASSEMBLY
-
1310-68298 BOLT, CLAMP BRACKET TO BOAT TRANSOM (3 1/4")BOLT, CLAMP BRACKET TO BOAT TRANSOM (3 1/4")
-
1412-46765 WASHER, CLAMP BRACKET BOLTWASHER, CLAMP BRACKET BOLT
-
1310-68299 BOLT, CLAMP BRACKET TO TRANSOM (3")BOLT, CLAMP BRACKET TO TRANSOM (3")
-
1412-68300 WASHER, CLAMP BRACKET BOLTWASHER, CLAMP BRACKET BOLT
-
1511-82670912 NUT, CLAMP BRACKET BOLTNUT, CLAMP BRACKET BOLT
-
1655-28416 PIN, UPPER SHOCK MOUNTINGPIN, UPPER SHOCK MOUNTING
-
1776386 TILT LOCK ASSEMBLY, STARBOARDTILT LOCK ASSEMBLY, STARBOARD
-
1876385T TILT LOCK ASSEMBLY, PORTTILT LOCK ASSEMBLY, PORT
-
1947802 TUBE, TILT LOCKTUBE, TILT LOCK
-
2018-47959 COTTER PIN, TILT LOCK TUBECOTTER PIN, TILT LOCK TUBE
-
2123-47803 BUSHING, TILT LOCK TUBEBUSHING, TILT LOCK TUBE
-
2213-69150 WASHER, WAVE - TILT LOCK TUBEWASHER, WAVE - TILT LOCK TUBE
-
2387431 REVERSE LOCK ASSEMBLYREVERSE LOCK ASSEMBLY
-
2424-29821 SPRING, REVERSE LOCK TENSIONSPRING, REVERSE LOCK TENSION
-
2556349 SHAFT, REVERSE LOCK PIVOTSHAFT, REVERSE LOCK PIVOT
-
2618-45882 COTTER PIN, REVERSE LOCK TO SHAFTCOTTER PIN, REVERSE LOCK TO SHAFT
-
2755-696531 PIN, LOWER SHOCK MOUNTING (SHORT SHAFT)PIN, LOWER SHOCK MOUNTING (SHORT SHAFT)
-
2755-28414 PIN, LOWER SHOCK MOUNTING - (LONG SHAFT)PIN, LOWER SHOCK MOUNTING - (LONG SHAFT)
-
2810-21937 SCREW, LOWER SHOCK PIN (2")- (LONG SHAFT)SCREW, LOWER SHOCK PIN (2")- (LONG SHAFT)
-
2911-20184 NUT, LOWER SHOCK PIN SCREW- (LONG SHAFT)NUT, LOWER SHOCK PIN SCREW- (LONG SHAFT)
-
3055-58780A7 SHOCK ABSORBERSHOCK ABSORBER
-
3123-28199 SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKETSPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET
-
3212-28196 WASHER, UPPER BUSHING RETAINER (INNER)WASHER, UPPER BUSHING RETAINER (INNER)
-
3312-59378 WASHER, LOWER BUSHING RETAINER (INNER)WASHER, LOWER BUSHING RETAINER (INNER)
-
3423-32171 BUSHING, RUBBER - SHOCK ABSORBER (UPPER)BUSHING, RUBBER - SHOCK ABSORBER (UPPER)
-
3523-28198 BUSHING, RUBBER - SHOCK ABSORBER (LOWER)BUSHING, RUBBER - SHOCK ABSORBER (LOWER)
-
3612-28421 WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)
-
3710-69375A1 SCREW, UPPER AND LOWER SHOCK MOUNTING PIN (3/4")SCREW, UPPER AND LOWER SHOCK MOUNTING PIN (3/4")
-
3870679 COVER, UPPER AND LOWER SHOCK MOUNTING PINCOVER, UPPER AND LOWER SHOCK MOUNTING PIN
-
3910-37655 SCREW, COVER TO SHOCK MOUNTING SCREWS (1/2")SCREW, COVER TO SHOCK MOUNTING SCREWS (1/2")
