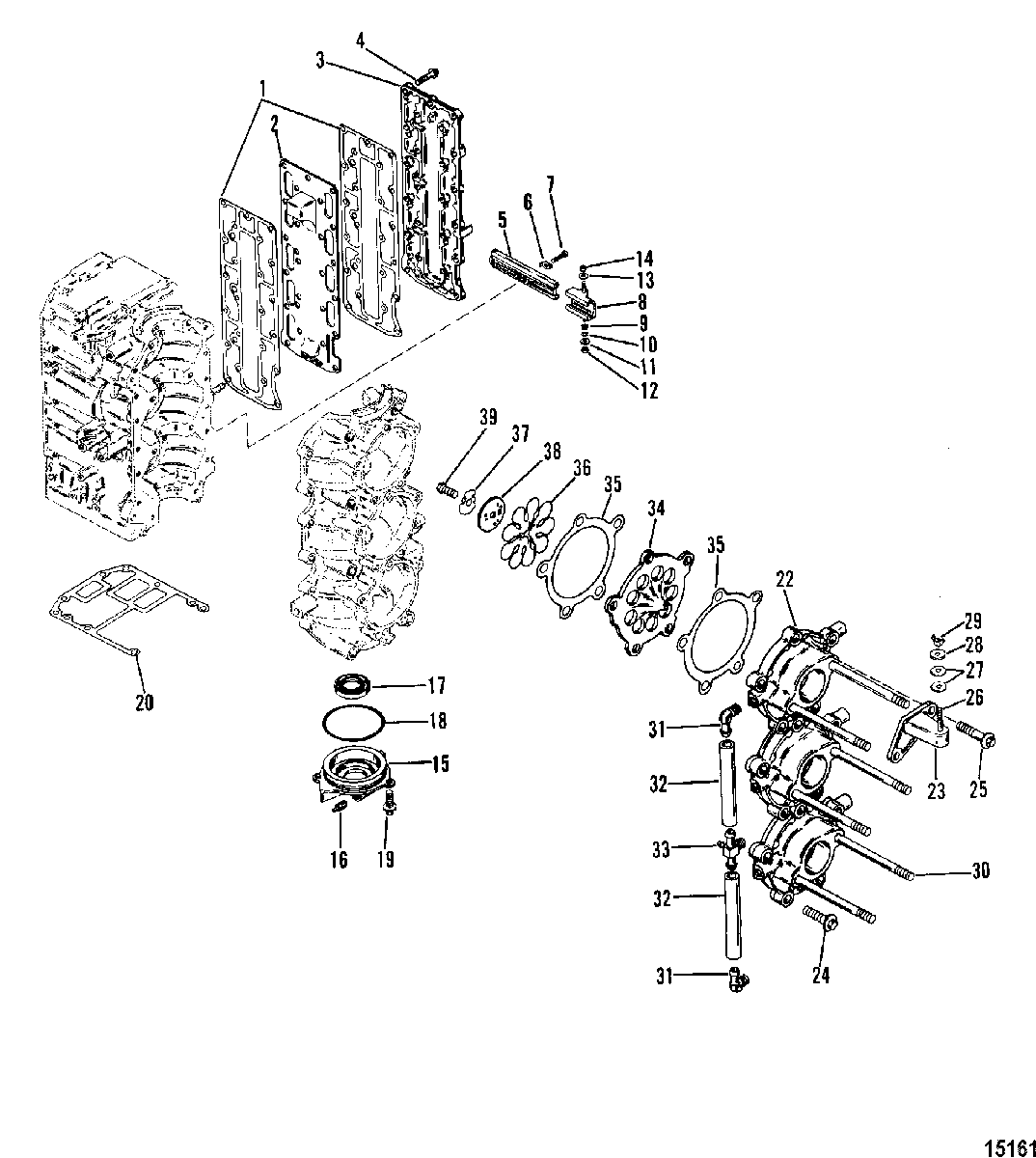

Induction Manifold And Reed Block для Mercury - 75 (3 CYL.) 9589039 THRU 9793576
-
№АртикулНазвание
-
127-43004009 GASKETGASKET
-
242878A2 BAFFLE PLATEBAFFLE PLATE
-
342878A2 COVERCOVER
-
410-82127335 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
542881A1 SHIFT RAILSHIFT RAIL
-
614-42981 TAB WASHERTAB WASHER
-
710-40001134 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
8988851 SLIDESLIDE
-
923-42994 BUSHING, Old DesignBUSHING, Old Design
-
1013-29720 WASHER, Wave, Old DesignWASHER, Wave, Old Design
-
1112-35462 WASHER, (.2656 x .625 x .0625) , Old DesignWASHER, (.2656 x .625 x .0625) , Old Design
-
1211-401386 NUT, (M6)NUT, (M6)
-
1312-35459 WASHERWASHER
-
1411-401386 NUT, (M6)NUT, (M6)
-
151169-858552T2 LOWER END CAP ASSEMBLYLOWER END CAP ASSEMBLY
-
1621-426585 CHECK VALVECHECK VALVE
-
1726-41953 SEALSEAL
-
1825-89224 O-RINGO-RING
-
1910-4010825 SCREW, (M10 x 25)SCREW, (M10 x 25)
-
2027-430075 GASKETGASKET
-
22884296T INDUCTION MANIFOLDINDUCTION MANIFOLD
-
2342923 BRACKETBRACKET
-
2410-82127335 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
2510-81742740 SCREW, (M8 x 40)SCREW, (M8 x 40)
-
2616-8M0045410 STUDSTUD
-
2712-49221 WASHERWASHER
-
2812-56681 WASHER, (.203 x .500 x .032), Old DesignWASHER, (.203 x .500 x .032), Old Design
-
2911-816874 WING NUTWING NUT
-
3016-824470 STUD, (M8 x 1.25)STUD, (M8 x 1.25)
-
3122-996642 ELBOWELBOW
-
3232-8M0108349 TUBINGTUBING
-
3322-432881 TEETEE
-
3442963A11 REED BLOCK ASSEMBLYREED BLOCK ASSEMBLY
-
3527-139376 GASKETGASKET
-
3634-43018A1 REED SETREED SET
-
3714-429821 TAB WASHERTAB WASHER
-
3842924 RETAINERRETAINER
-
3910-4000171 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
-27-43004A99 GASKET SETGASKET SET
-
-13589T93 POWERHEAD ASSEMBLY COMPLETE, 75POWERHEAD ASSEMBLY COMPLETE, 75
-
-13600T93 POWERHEAD ASSEMBLY COMPLETE, 75 CommercialPOWERHEAD ASSEMBLY COMPLETE, 75 Commercial
-
-15081T96 POWERHEAD ASSEMBLY COMPLETE, 90POWERHEAD ASSEMBLY COMPLETE, 90
