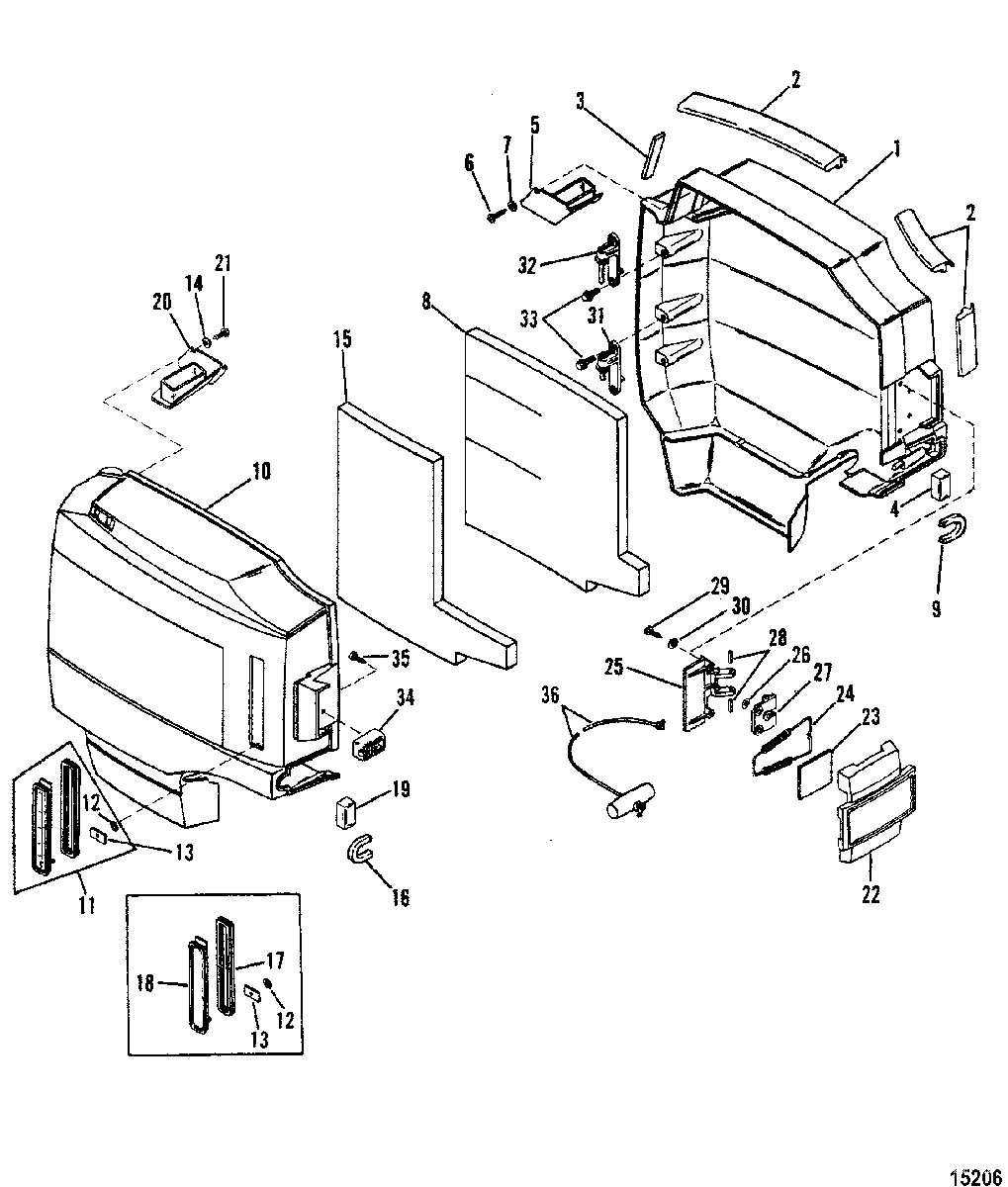

Cowls and Front Cover для Mercury - 75 (3 CYL.) 9589039 THRU 9793576

  • №
    Артикул
    Название
  • 1
    2188-9006A2 COWL ASSEMBLY, Port, Black
    COWL ASSEMBLY, Port, Black
  • 1
    2188-9006A3 COWL ASSEMBLY, Port, Gray
    COWL ASSEMBLY, Port, Gray
  • 2
    429404 SEAL
    SEAL
  • 3
    12401 SEAL, Rear
    SEAL, Rear
  • 4
    90274 SEAL
    SEAL
  • 5
    42958 SHIELD
    SHIELD
  • 6
    10-48409 SCREW, (#10-16 x .625)
    SCREW, (#10-16 x .625)
  • 7
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 8
    435331 SOUND BLANKET
    SOUND BLANKET
  • 9
    193682 SEAL, (4.20 Inch)
    SEAL, (4.20 Inch)
  • 10
    2187-9070A4 COWL ASSEMBLY, Starboard, Black
    COWL ASSEMBLY, Starboard, Black
  • 10
    2187-9070A5 COWL ASSEMBLY, Starboard, Gray
    COWL ASSEMBLY, Starboard, Gray
  • 11
    11315A1 OIL LEVEL GAUGE ASSEMBLY
    OIL LEVEL GAUGE ASSEMBLY
  • 12
    11-113161 NUT
    NUT
  • 13
    113171 RETAINER
    RETAINER
  • 14
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 15
    435342 SOUND BLANKET
    SOUND BLANKET
  • 16
    193682 SEAL, (4.20 Inch)
    SEAL, (4.20 Inch)
  • 17
    42905 GROMMET
    GROMMET
  • 18
    812431 PLUG, Handle Models
    PLUG, Handle Models
  • 19
    26-60297 SEAL
    SEAL
  • 20
    42957 SHIELD
    SHIELD
  • 21
    10-48409 SCREW, (#10-16 x .625)
    SCREW, (#10-16 x .625)
  • 22
    43138A2 COVER ASSEMBLY MERCURY, Black
    COVER ASSEMBLY MERCURY, Black
  • 22
    43138A3 COVER ASSEMBLY MARINER, Gray
    COVER ASSEMBLY MARINER, Gray
  • 23
    12356 BUMPER
    BUMPER
  • 24
    24-17288 SPRING
    SPRING
  • 25
    43137A1 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 26
    11-434181 SPEED NUT
    SPEED NUT
  • 27
    15432 RETAINER
    RETAINER
  • 28
    17-43134 PIN
    PIN
  • 29
    10-48409 SCREW, (#10-16 x .625)
    SCREW, (#10-16 x .625)
  • 30
    12-814806 WASHER, (.344 x .688 x .065)
    WASHER, (.344 x .688 x .065)
  • 31
    879851 BRACKET, Lower
    BRACKET, Lower
  • 32
    879871 BRACKET, Upper
    BRACKET, Upper
  • 33
    10-4010725 SCREW, (M8 x 25)
    SCREW, (M8 x 25)
  • 34
    120811 COWL LATCH
    COWL LATCH
  • 35
    10-48409 SCREW, (#10-16 x .625)
    SCREW, (#10-16 x .625)
  • 36
    47341A11 EMERGENCY STARTER ROPE, Manual Starting
    EMERGENCY STARTER ROPE, Manual Starting
