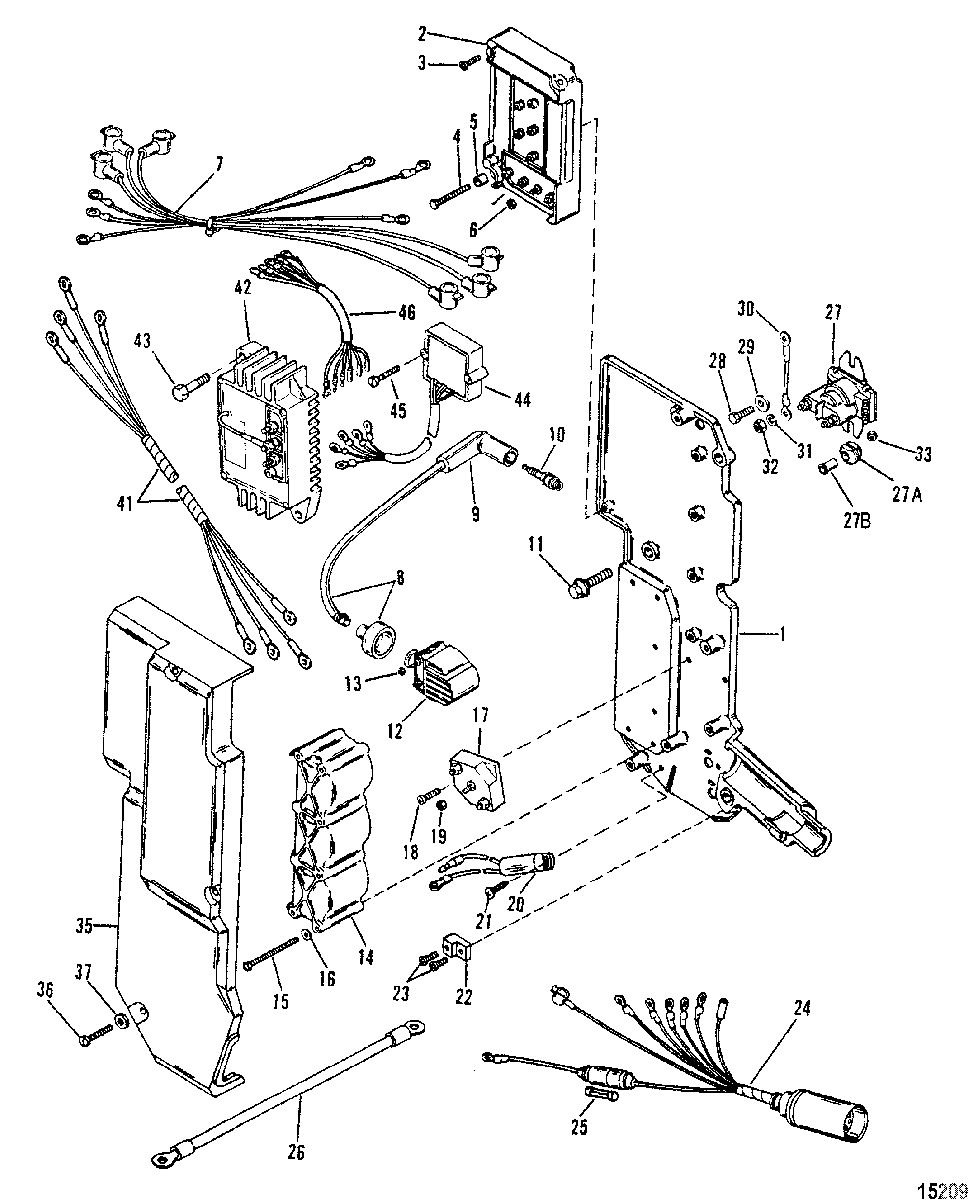

Electrical Components для Mercury - 75 (3 CYL.) 9589039 THRU 9793576

  • №
    Артикул
    Название
  • 1
    42968A23 IGNITION PLATE
    IGNITION PLATE
  • 2
    332-7778A12 SWITCH BOX
    SWITCH BOX
  • 3
    10-69079 SCREW, (#10-16 x .440)
    SCREW, (#10-16 x .440)
  • 4
    10-40007110 SCREW, (M5 X 30)
    SCREW, (M5 X 30)
  • 5
    23-94304 SPACER
    SPACER
  • 6
    11-45076 NUT, (#10-32)
    NUT, (#10-32)
  • 7
    84-41592A4 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 8
    84-813715A7 CABLE
    CABLE
  • 9
    85-63709A1 BOOT KIT
    BOOT KIT
  • 10
    33-97182Q SPARK PLUG
    (NGK #BUHW-2)
    SPARK PLUG
    (NGK #BUHW-2)
  • 10
    33-14103Q SPARK PLUG
    (Belgium/Canada) (NGK #BUZHW-2)
    SPARK PLUG
    (Belgium/Canada) (NGK #BUZHW-2)
  • 11
    10-82155025 SCREW, (M8 x 25)
    SCREW, (M8 x 25)
  • 12
    339-832757A4 IGNITION COIL ASSEMBLY
    IGNITION COIL ASSEMBLY
  • 13
    11-45076 NUT, (#10-32)
    NUT, (#10-32)
  • 14
    43542 COVER
    COVER
  • 15
    10-40007115 SCREW, (M5 X 55)
    SCREW, (M5 X 55)
  • 16
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 17
    17602A1 TERMINAL BLOCK, Black
    TERMINAL BLOCK, Black
  • 17
    17602T02 TERMINAL BLOCK, Gray
    TERMINAL BLOCK, Gray
  • 18
    10-40056107 SCREW, (M5 x 16)
    SCREW, (M5 x 16)
  • 19
    11-45076 NUT, (#10-32)
    NUT, (#10-32)
  • 20
    16731T01 MERCURY SWITCH, Old Design
    MERCURY SWITCH, Old Design
  • 21
    10-40056107 SCREW, (M5 x 16)
    SCREW, (M5 x 16)
  • 22
    86-45915 TERMINAL BLOCK
    TERMINAL BLOCK
  • 23
    10-48408 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 24
    84-41591A7 ENGINE HARNESS
    SN# D252461 & Up
    ENGINE HARNESS
    SN# D252461 & Up
  • 24
    84-41591A3 WIRING HARNESS ASSEMBLY
    SN# D252460 & Below
    WIRING HARNESS ASSEMBLY
    SN# D252460 & Below
  • 24
    84-41591A7 ENGINE HARNESS, Use Without Reference Number 20 And 21
    ENGINE HARNESS, Use Without Reference Number 20 And 21
  • 25
    88-79091 FUSE, (20 Ampere)
    FUSE, (20 Ampere)
  • 26
    84-88439A3 BATTERY CABLE, Positive
    BATTERY CABLE, Positive
  • 26
    84-88439A4 BATTERY CABLE, Negative
    BATTERY CABLE, Negative
  • 27
    89-850187T1 STARTER SOLENOID, ( 8-32 .250-20 Terminals)
    STARTER SOLENOID, ( 8-32 .250-20 Terminals)
  • 27A
    25-818967 GROMMET
    GROMMET
  • 27B
    23-818968 BUSHING
    BUSHING
  • 28
    10-40011109 SCREW, (M5 x 25)
    SCREW, (M5 x 25)
  • 29
    12-4002314 WASHER
    WASHER
  • 30
    84-88807A6 WIRE, (3.50 Inches) Black, Quantity Of Three On Power Trim
    WIRE, (3.50 Inches) Black, Quantity Of Three On Power Trim
  • 31
    13-26992 LOCKWASHER, (.250)
    LOCKWASHER, (.250)
  • 32
    11-64015 NUT, ( #8-32)
    NUT, ( #8-32)
  • 33
    11-26419 NUT, (#8-32)
    NUT, (#8-32)
  • 34
    134731 FUSE HOLDER, Old Design
    FUSE HOLDER, Old Design
  • 35
    124174 COVER
    COVER
  • 36
    10-40007114 SCREW, (50 MM)
    SCREW, (50 MM)
  • 37
    12-89302 WASHER, (.203 x .406 x .040), Use Where Applicable
    WASHER, (.203 x .406 x .040), Use Where Applicable
  • 41
    84-12201A2 HARNESS ASSEMBLY
    (Use With Black Terminal Block)
    HARNESS ASSEMBLY
    (Use With Black Terminal Block)
  • 42
    815279A2 VOLTAGE REGULATOR
    (Use With Black Terminal Block)
    VOLTAGE REGULATOR
    (Use With Black Terminal Block)
  • 43
    10-4010630 SCREW, (M6 x 30)
    (Use With Black Terminal Block)
    SCREW, (M6 x 30)
    (Use With Black Terminal Block)
  • 44
    8M0084173 VOLTAGE REGULATOR
    (Two Female/Three Male Terminals)
    VOLTAGE REGULATOR
    (Two Female/Three Male Terminals)
  • 44
    815279A2 VOLTAGE REGULATOR, Five Ring Terminals
    VOLTAGE REGULATOR, Five Ring Terminals
  • 45
    10-4010635 SCREW, (M6 x 35)
    SCREW, (M6 x 35)
  • 46
    84-821546A3 HARNESS
    (Use With 815279--3 Voltage Regulator)
    HARNESS
    (Use With 815279--3 Voltage Regulator)
