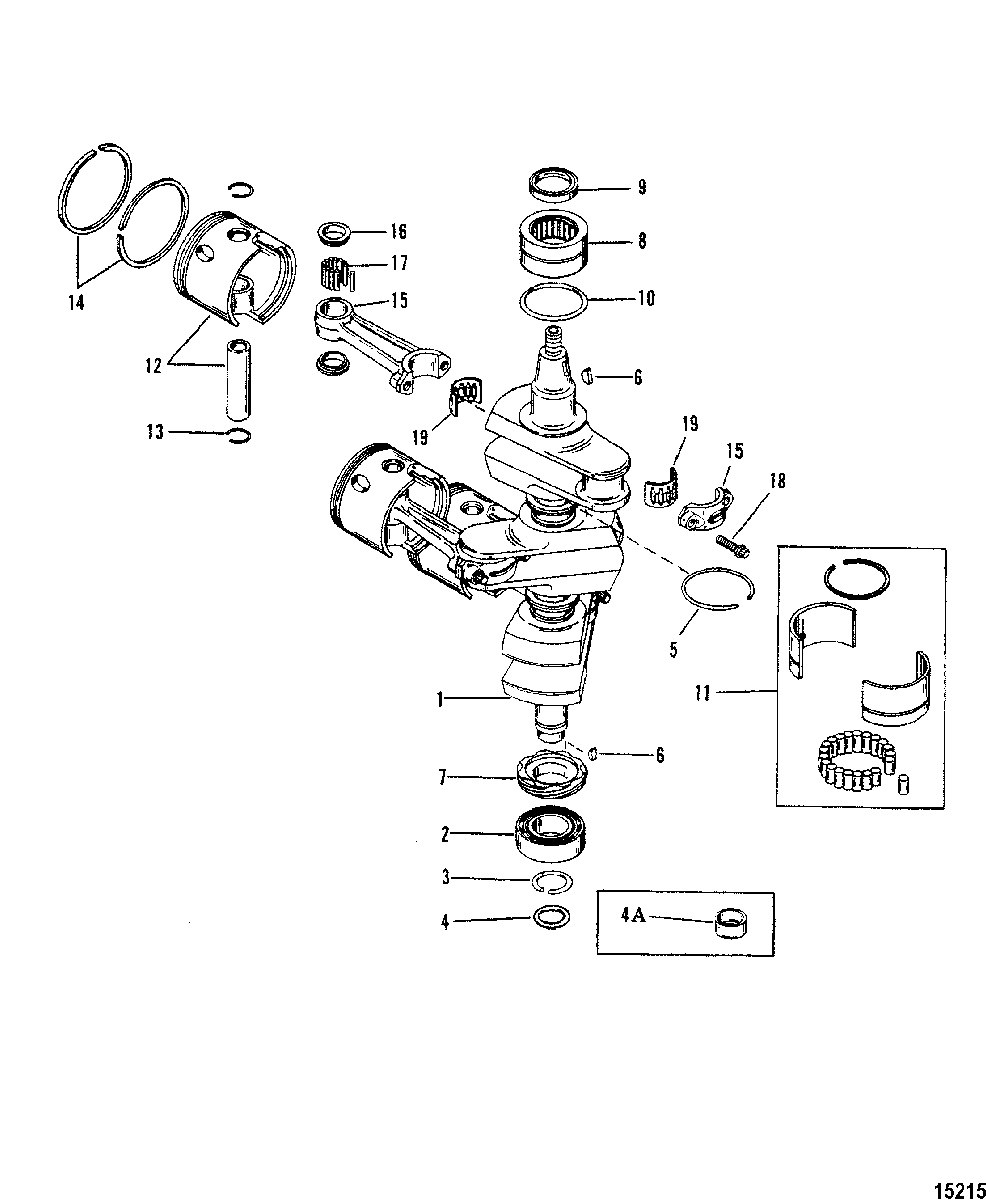

Crankshaft, Pistons And Connecting Rods (#638-8532-1) для Mercury - 75 (3 CYL.) 9589039 THRU 9793576

  • №
    Артикул
    Название
  • 1
    472-9001T3 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    30-43011T BALL BEARING, Lower
    BALL BEARING, Lower
  • 3
    53-93412 RETAINING RING, Old Design
    RETAINING RING, Old Design
  • 4
    25-35126 O-RING
    O-RING
  • 4A
    786611 WEAR SLEEVE
    WEAR SLEEVE
  • 5
    39-42079A4 RING ASSEMBLY
    RING ASSEMBLY
  • 6
    28-91800 KEY, Woodruff
    KEY, Woodruff
  • 7
    43-43019A1 DRIVER GEAR
    DRIVER GEAR
  • 8
    31-43013T3 ROLLER BEARING ASSEMBLY, Upper
    ROLLER BEARING ASSEMBLY, Upper
  • 9
    26-43993 SEAL, Oil
    SEAL, Oil
  • 10
    25-823683 O-RING
    O-RING
  • 11
    42943A1 ROLLER BEARING ASSEMBLY
    ROLLER BEARING ASSEMBLY
  • 12
    777-9009T13 PISTON ASSEMBLY
    (Standard)
    PISTON ASSEMBLY
    (Standard)
  • 12
    777-9009A6 PISTON ASSEMBLY
    (.015 Oversize)
    PISTON ASSEMBLY
    (.015 Oversize)
  • 12
    777-9009A7 PISTON ASSEMBLY
    (.030 Oversize)
    PISTON ASSEMBLY
    (.030 Oversize)
  • 13
    53-857196 RING
    RING
  • 14
    39-96170A12 PISTON RING ASSEBMLY
    (Standard)
    PISTON RING ASSEBMLY
    (Standard)
  • 14
    39-96170A3 PISTON RING ASSEMBLY
    (.015 Oversize)
    PISTON RING ASSEMBLY
    (.015 Oversize)
  • 14
    39-96170A4 PISTON RING ASSEMBLY
    (.030 Oversize)
    PISTON RING ASSEMBLY
    (.030 Oversize)
  • 15
    638-9002A6 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 16
    12-8M0032839 WASHER
    WASHER
  • 17
    29-88258001 NEEDLE, Roller Bearing
    NEEDLE, Roller Bearing
  • 18
    10-94320 SCREW, (.375-24 x 1.250)
    SCREW, (.375-24 x 1.250)
  • 19
    31-844338A01 BEARING/CAGE KIT
    BEARING/CAGE KIT
  • -
    13589T93 POWERHEAD ASSEMBLY COMPLETE, 75
    POWERHEAD ASSEMBLY COMPLETE, 75
  • -
    13600T93 POWERHEAD ASSEMBLY COMPLETE, 75 Commercial
    POWERHEAD ASSEMBLY COMPLETE, 75 Commercial
  • -
    15081T96 POWERHEAD ASSEMBLY COMPLETE, 90
    POWERHEAD ASSEMBLY COMPLETE, 90
