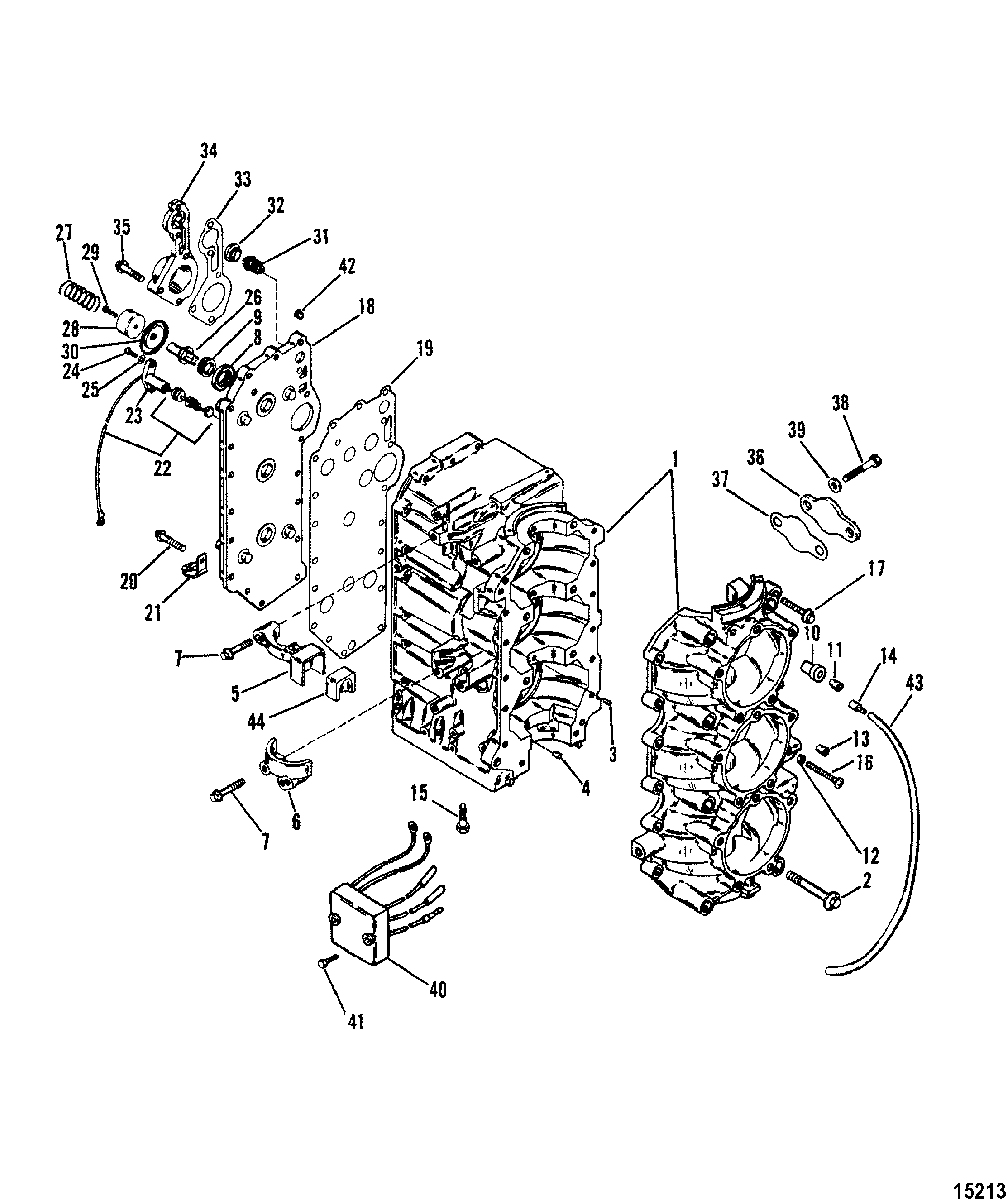

Cylinder Block And Crankcase для Mercury - 75 (3 CYL.) 9589039 THRU 9793576

  • №
    Артикул
    Название
  • 1
    876-8947T49 CYLINDER BLOCK, 75
    CYLINDER BLOCK, 75
  • 1
    876-8947T50 CYLINDER BLOCK, 75 Work
    CYLINDER BLOCK, 75 Work
  • 1
    876-8947T51 CYLINDER BLOCK, 90
    CYLINDER BLOCK, 90
  • 2
    10-4009680 SCREW, (M10 x 80)
    SCREW, (M10 x 80)
  • 2
    10-81742780 SCREW, (M8 x 80)
    SCREW, (M8 x 80)
  • 3
    17-8M0036405 PIN, Bearing Race
    PIN, Bearing Race
  • 4
    17-43044 PIN, Dowel
    PIN, Dowel
  • 5
    428842 COVER, Top
    COVER, Top
  • 6
    76867 COVER, Bottom
    COVER, Bottom
  • 7
    10-81742750 SCREW, (M8 x 50)
    SCREW, (M8 x 50)
  • 8
    65848 CARRIER, Use Where Applicable
    CARRIER, Use Where Applicable
  • 9
    25-64872 GROMMET, Use Where Applicable
    GROMMET, Use Where Applicable
  • 10
    813801A1 CARRIER ASSEMBLY
    CARRIER ASSEMBLY
  • 11
    21-42657A3 CHECK VALVE
    CHECK VALVE
  • 12
    11-400212 NUT, (M6)
    NUT, (M6)
  • 13
    42942 CAP
    CAP
  • 14
    21-426233 CHECK VALVE, Press In
    CHECK VALVE, Press In
  • 15
    16-821676A1 SCREW
    SCREW
  • 16
    10-814776 ADJUSTING SCREW, (M6 x 55)
    ADJUSTING SCREW, (M6 x 55)
  • 17
    10-82127335 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 18
    1034-9003A2 COVER
    COVER
  • 19
    27-430057 GASKET
    GASKET
  • 20
    10-82127335 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 21
    54-814634 CLAMP
    CLAMP
  • 22
    78799 TEMPERATURE SENDER, (19.50 Inch)
    TEMPERATURE SENDER, (19.50 Inch)
  • 23
    44290T RETAINER
    RETAINER
  • 24
    10-48409 SCREW, (#10-16 x .625)
    SCREW, (#10-16 x .625)
  • 25
    12-56681 WASHER, (.203 x .500 x .032)
    WASHER, (.203 x .500 x .032)
  • 26
    86596 POPPET VALVE, Spring Length Is 2.00 Inch
    POPPET VALVE, Spring Length Is 2.00 Inch
  • 27
    24-42996 SPRING, Spring Length Is 2.00 Inch
    SPRING, Spring Length Is 2.00 Inch
  • 26
    86596T POPPET VALVE, Spring Length Is 3.00 Inch
    POPPET VALVE, Spring Length Is 3.00 Inch
  • 27
    24-42996 SPRING, Spring Length Is 3.00 Inch
    SPRING, Spring Length Is 3.00 Inch
  • 28
    12-94182 WASHER
    WASHER
  • 29
    10-69570 SCREW, (#10-16 x .750)
    SCREW, (#10-16 x .750)
  • 30
    648771 DIAPHRAGM
    DIAPHRAGM
  • 31
    75692 THERMOSTAT, 143 Degrees
    THERMOSTAT, 143 Degrees
  • 31
    14586 THERMOSTAT, 120 Degrees
    THERMOSTAT, 120 Degrees
  • 32
    27-62386001 GASKET
    GASKET
  • 33
    27-430068 GASKET
    GASKET
  • 34
    8M0047619 COVER
    COVER
  • 35
    10-82127335 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 36
    12621 COVER, Non Oil Injection
    COVER, Non Oil Injection
  • 37
    27-126201 GASKET, Non Oil Injection
    GASKET, Non Oil Injection
  • 38
    10-40007106 SCREW, (M5 X 13), Non Oil Injection
    SCREW, (M5 X 13), Non Oil Injection
  • 39
    12-4002314 WASHER
    WASHER
  • 40
    14857A16 OIL WARNING MODULE
    OIL WARNING MODULE
  • 41
    10-4010630 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 42
    22-328022 PLUG, Pipe (.125-27)
    PLUG, Pipe (.125-27)
  • 43
    32-892024122 TUBING, (20.00 Feet Bulk)
    TUBING, (20.00 Feet Bulk)
  • 44
    99162001 BOOT, Non Oil Injection
    BOOT, Non Oil Injection
  • -
    27-43004A99 GASKET SET
    GASKET SET
  • -
    13589T93 POWERHEAD ASSEMBLY COMPLETE, 75
    POWERHEAD ASSEMBLY COMPLETE, 75
  • -
    13600T93 POWERHEAD ASSEMBLY COMPLETE, 75 Commercial
    POWERHEAD ASSEMBLY COMPLETE, 75 Commercial
  • -
    15081T96 POWERHEAD ASSEMBLY COMPLETE, 90
    POWERHEAD ASSEMBLY COMPLETE, 90
