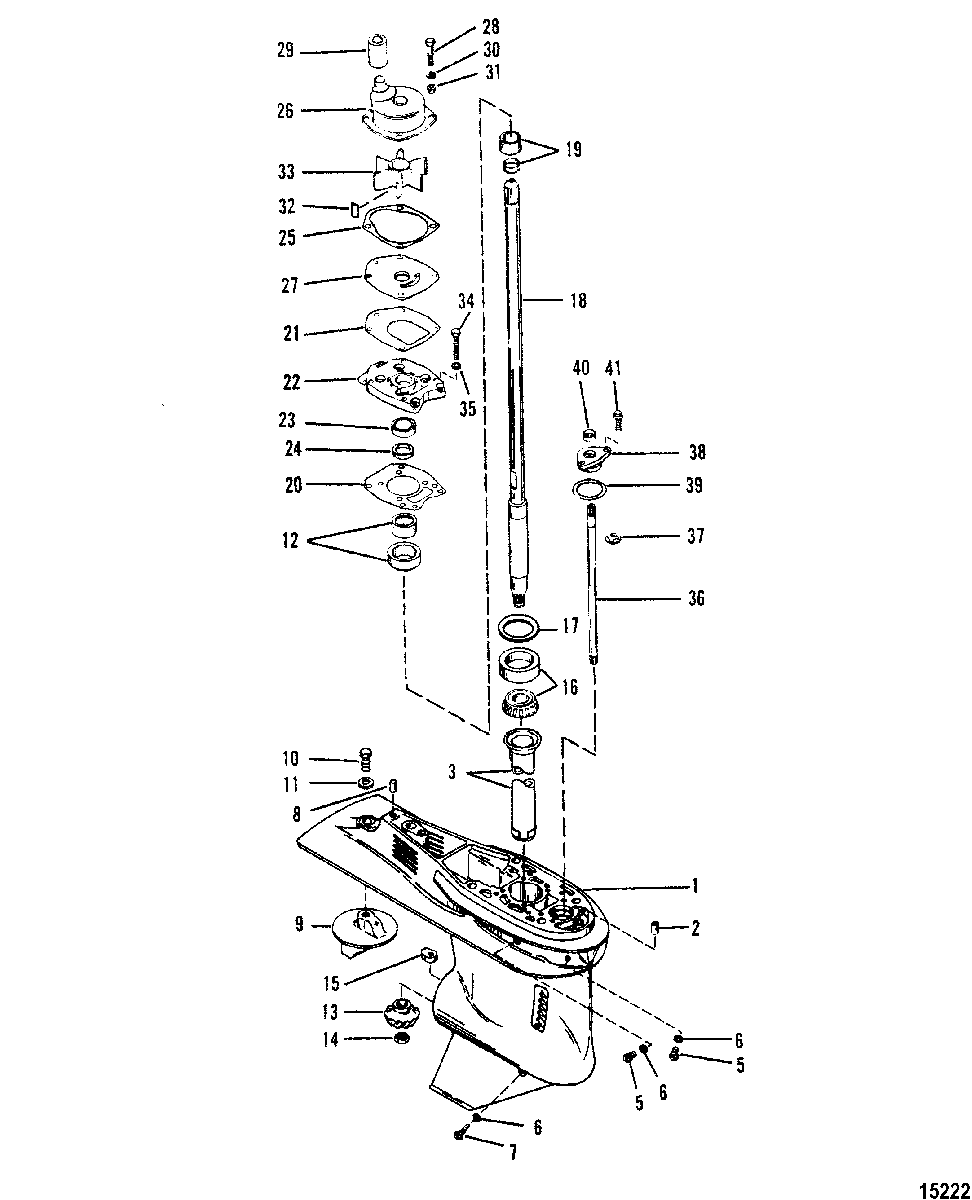

Gear Housing(Drive Shaft) для Mercury - 75 (3 CYL.) 9589039 THRU 9793576

  • №
    Артикул
    Название
  • -
    1667-9011J16 GEAR HOUSING ASSEMBLY, Black
    GEAR HOUSING ASSEMBLY, Black
  • -
    1667-9011J16 GEAR HOUSING ASSEMBLY, Gray
    GEAR HOUSING ASSEMBLY, Gray
  • 1
    1667-9011T73 GEAR HOUSING ASSEMBLY, Black
    GEAR HOUSING ASSEMBLY, Black
  • 1
    1667-9011T73 GEAR HOUSING ASSEMBLY, Gray
    GEAR HOUSING ASSEMBLY, Gray
  • 2
    17-8M0084244 PIN, Dowel (.375 x .625), Front
    PIN, Dowel (.375 x .625), Front
  • 3
    43046 OILER TUBE
    OILER TUBE
  • 5
    10-79953Q04 SCREW, (.375-16 x .250)
    SCREW, (.375-16 x .250)
  • 6
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • 7
    22-8M0058389 SCREW, Magnetic
    SCREW, Magnetic
  • 8
    17-43044 PIN, Dowel (.375 x .625), Rear
    PIN, Dowel (.375 x .625), Rear
  • 9
    97-31640Q4 TRIM TAB
    TRIM TAB
  • 10
    10-825427 SCREW, (.437-14 x 1.250)
    SCREW, (.437-14 x 1.250)
  • 11
    12-45176 WASHER, (.453 x .812 x .105)
    WASHER, (.453 x .812 x .105)
  • 12
    43040T1 CARRIER
    CARRIER
  • 13
    43-44484T PINION GEAR
    PINION GEAR
  • 14
    11-35921 NUT, (.625-18)
    NUT, (.625-18)
  • 15
    760394 SHIFT CAM
    SHIFT CAM
  • 16
    31-42677A1 TAPERED ROLLER BEARING ASSEMBLY
    TAPERED ROLLER BEARING ASSEMBLY
  • 17
    15-8M0063265 SHIM SET
    SHIM SET
  • 18
    45-43031A1 DRIVE SHAFT ASSEMBLY
    DRIVE SHAFT ASSEMBLY
  • 19
    42461A1 WEAR SLEEVE ASSEMBLY
    WEAR SLEEVE ASSEMBLY
  • 20
    27-430472 GASKET
    GASKET
  • 21
    27-430331 GASKET
    GASKET
  • 22
    46-8M0113262 WATER PUMP BASE ASSEMBLY
    WATER PUMP BASE ASSEMBLY
  • 23
    26-43036 OIL SEAL, Lower, Aluminum Cover
    OIL SEAL, Lower, Aluminum Cover
  • 24
    26-43035 OIL SEAL, Upper, Aluminum Cover
    OIL SEAL, Upper, Aluminum Cover
  • 25
    27-430341 GASKET ALUMINUM COVER
    (Use With Reference Number 30 And 31) (Aluminum Cover)
    GASKET ALUMINUM COVER
    (Use With Reference Number 30 And 31) (Aluminum Cover)
  • 25
    27-8172771 GASKET
    (Use Without Reference Number 30 And 31) (Aluminum Cover 6, 7)
    GASKET
    (Use Without Reference Number 30 And 31) (Aluminum Cover 6, 7)
  • 22
    46-8M0113262 COVER ASSEMBLY, Plastic Cover
    COVER ASSEMBLY, Plastic Cover
  • 22
    46-8M0113262 COVER ASSEMBLY, Aluminum Cover
    COVER ASSEMBLY, Aluminum Cover
  • 23
    26-43036 OIL SEAL, Lower, Plastic Cover
    OIL SEAL, Lower, Plastic Cover
  • 24
    26-43035 OIL SEAL, Upper, Plastic Cover
    OIL SEAL, Upper, Plastic Cover
  • 25
    27-430341 GASKET ALUMINUM COVER, Plastic Cover
    GASKET ALUMINUM COVER, Plastic Cover
  • 26
    817275A2 WATER PUMP ASSEMBLY
    (Use With Reference Number 30 And 31)
    WATER PUMP ASSEMBLY
    (Use With Reference Number 30 And 31)
  • 27
    NLA No Longer Available, Face Plate
    (Order 817275A2) (Use With Reference Number 30 And 31)
    No Longer Available, Face Plate
    (Order 817275A2) (Use With Reference Number 30 And 31)
  • 28
    10-4000332 SCREW, (M6 x 35), Use With Reference Number 30 And 31
    SCREW, (M6 x 35), Use With Reference Number 30 And 31
  • 29
    43023 SEAL, Use With Reference Number 30 And 31
    SEAL, Use With Reference Number 30 And 31
  • 30
    12-4002315 WASHER, Use With Reference Number 30 And 31
    WASHER, Use With Reference Number 30 And 31
  • 31
    23-43045 INSULATOR, Use With Reference Number 30, 31, 6, And 7
    INSULATOR, Use With Reference Number 30, 31, 6, And 7
  • 26
    817275A2 WATER PUMP HOUSING, Upper, Use Without Reference Number 30, 31, And 7
    WATER PUMP HOUSING, Upper, Use Without Reference Number 30, 31, And 7
  • 27
    8172761 FACE PLATE, Use Without Reference Number 30, 31, And 7
    FACE PLATE, Use Without Reference Number 30, 31, And 7
  • 28
    10-40011130 SCREW, (M6 x 30), Use Without Reference Number 30 And 31
    SCREW, (M6 x 30), Use Without Reference Number 30 And 31
  • 29
    43023 SEAL, Use Without Reference Number 30 And 31
    SEAL, Use Without Reference Number 30 And 31
  • 32
    28-8M0032833 KEY
    KEY
  • 33
    47-43026T2 IMPELLER
    IMPELLER
  • 34
    10-4000330 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 35
    12-29245 WASHER, (.281 x .500 x .060)
    WASHER, (.281 x .500 x .060)
  • 36
    43048A1 SHIFT SHAFT ASSEMBLY
    SHIFT SHAFT ASSEMBLY
  • 37
    53-29641 E RING
    E RING
  • 38
    23-43052A4 BUSHING ASSEMBLY
    BUSHING ASSEMBLY
  • 39
    25-457101 O-RING
    O-RING
  • 40
    26-8164641 SEAL, Oil
    SEAL, Oil
  • 41
    10-8M4503518 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • -
    27-43004A99 GASKET SET
    GASKET SET
  • -
    26-43035A4 GEAR HOUSING SEAL KIT
    GEAR HOUSING SEAL KIT
  • -
    46-8M0113799 WATER PUMP REPAIR KIT
    WATER PUMP REPAIR KIT
