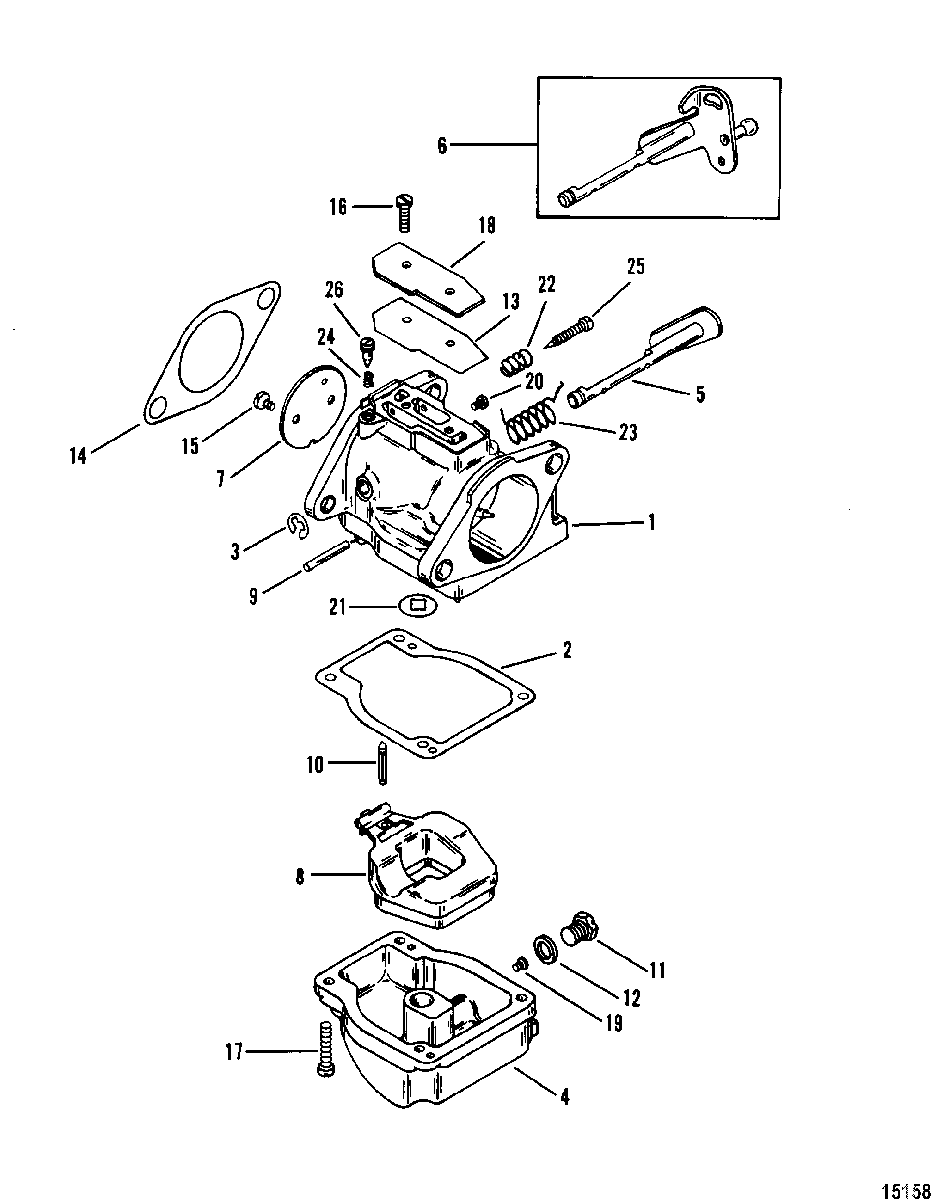

Carburetor для Mercury - 75 (3 CYL.) 9589039 THRU 9793576

  • №
    Артикул
    Название
  • 1
    3301-9012A71 CARBURETOR, Top, 75 - WME-17
    CARBURETOR, Top, 75 - WME-17
  • 1
    3301-9012A72 CARBURETOR, Center, 75 - WME-17
    CARBURETOR, Center, 75 - WME-17
  • 1
    3301-9012A73 CARBURETOR, Bottom, 75 - WME-17
    CARBURETOR, Bottom, 75 - WME-17
  • 1
    3301-9012A58 CARBURETOR, Top, 75 COMM. - WME-18
    CARBURETOR, Top, 75 COMM. - WME-18
  • 1
    3301-9012A59 CARBURETOR, Center, 75 COMM. - WME-18
    CARBURETOR, Center, 75 COMM. - WME-18
  • 1
    3301-9012A60 CARBURETOR, Bottom, 75 COMM. - WME-18
    CARBURETOR, Bottom, 75 COMM. - WME-18
  • 1
    3301-9012A64 CARBURETOR, Top, 90 - WME-19
    CARBURETOR, Top, 90 - WME-19
  • 1
    3301-9012A65 CARBURETOR, Center, 90 - WME-19
    CARBURETOR, Center, 90 - WME-19
  • 1
    3301-9012A66 CARBURETOR, Bottom, 90 - WME-19
    CARBURETOR, Bottom, 90 - WME-19
  • 1
    3301-9012A74 CARBURETOR, Top, 75 COMM. - WME-25
    CARBURETOR, Top, 75 COMM. - WME-25
  • 1
    3301-9012A75 CARBURETOR, Center, 75 COMM. - WME-25
    CARBURETOR, Center, 75 COMM. - WME-25
  • 1
    3301-9012A76 CARBURETOR, Bottom, 75 COMM. - WME-25
    CARBURETOR, Bottom, 75 COMM. - WME-25
  • 2
    NSS NOT SOLD SEPARATE, Gasket, Fuel Bowl
    NOT SOLD SEPARATE, Gasket, Fuel Bowl
  • 3
    NSS NOT SOLD SEPARATE, Retaining Ring
    NOT SOLD SEPARATE, Retaining Ring
  • 4
    1395-811696 FUEL BOWL, Upper
    FUEL BOWL, Upper
  • 4
    1395-811693 FUEL BOWL, Center, Lower
    FUEL BOWL, Center, Lower
  • 4
    1395-811696 FUEL BOWL, Upper
    FUEL BOWL, Upper
  • 4
    1395-811693 FUEL BOWL, Center, Lower
    FUEL BOWL, Center, Lower
  • 5
    1395-9591 THROTTLE SHAFT, Upper, Lower
    THROTTLE SHAFT, Upper, Lower
  • 6
    19270 THROTTLE SHAFT, Center
    THROTTLE SHAFT, Center
  • 7
    1395-9593 THROTTLE VALVE, 75/75 COMM.
    THROTTLE VALVE, 75/75 COMM.
  • 7
    1395-811216 THROTTLE VALVE, 90
    THROTTLE VALVE, 90
  • 8
    1395-9594 FLOAT
    FLOAT
  • 9
    NSS NOT SOLD SEPARATE, Float Shaft
    NOT SOLD SEPARATE, Float Shaft
  • 10
    1395-879194011 INLET NEEDLE VALVE
    INLET NEEDLE VALVE
  • 11
    1395-811694 PLUG
    PLUG
  • 11
    1395-811694 PLUG KIT, WME-25
    PLUG KIT, WME-25
  • 12
    NSS NOT SOLD SEPARATE, Gasket
    NOT SOLD SEPARATE, Gasket
  • 13
    NSS NOT SOLD SEPARATE, Gasket, Cover Plate
    NOT SOLD SEPARATE, Gasket, Cover Plate
  • 14
    27-151724 GASKET, Flange
    GASKET, Flange
  • 15
    NSS NOT SOLD SEPARATE, Screw, Throttle Valve
    NOT SOLD SEPARATE, Screw, Throttle Valve
  • 16
    1395-9597 SCREW, Cover Plate, WME-8/9/15
    SCREW, Cover Plate, WME-8/9/15
  • 16
    1395-811220 SCREW, Cover Plate, WME-17/18/19/25
    SCREW, Cover Plate, WME-17/18/19/25
  • 17
    1395-808612 SCREW, Fuel Bowl
    SCREW, Fuel Bowl
  • 18
    1395-9598 COVER PLATE, WME-8/9/15
    COVER PLATE, WME-8/9/15
  • 18
    1395-811221 COVER PLATE, WME-17/18/19/25
    COVER PLATE, WME-17/18/19/25
  • 19
    1399-4216 JET, (.064), Main Fuel,75 COMM.
    JET, (.064), Main Fuel,75 COMM.
  • 19
    1395-6029 JET, (.068), Main Fuel, 75
    JET, (.068), Main Fuel, 75
  • 19
    1399-4215 MAIN FUEL JET, (.066), Main Fuel, 90
    MAIN FUEL JET, (.066), Main Fuel, 90
  • 20
    1395-8423 JET, Vent, .094
    JET, Vent, .094
  • 21
    NSS NOT SOLD SEPARATE, Gasket, Nozzle Well
    NOT SOLD SEPARATE, Gasket, Nozzle Well
  • 22
    NSS NOT SOLD SEPARATE, Spring, Idle Needle
    NOT SOLD SEPARATE, Spring, Idle Needle
  • 23
    NSS NOT SOLD SEPARATE, Spring, Throttle Return
    NOT SOLD SEPARATE, Spring, Throttle Return
  • 24
    NSS NOT SOLD SEPARATE, Spring, Idle Air
    NOT SOLD SEPARATE, Spring, Idle Air
  • 25
    NSS NOT SOLD SEPARATE, Idle Needle
    NOT SOLD SEPARATE, Idle Needle
  • 26
    NSS NOT SOLD SEPARATE, Idle Air Needle
    NOT SOLD SEPARATE, Idle Air Needle
  • --
    1395-8236354 REPAIR KIT
    REPAIR KIT
  • --
    1395-8112231 CARB GASKET SET
    CARB GASKET SET
