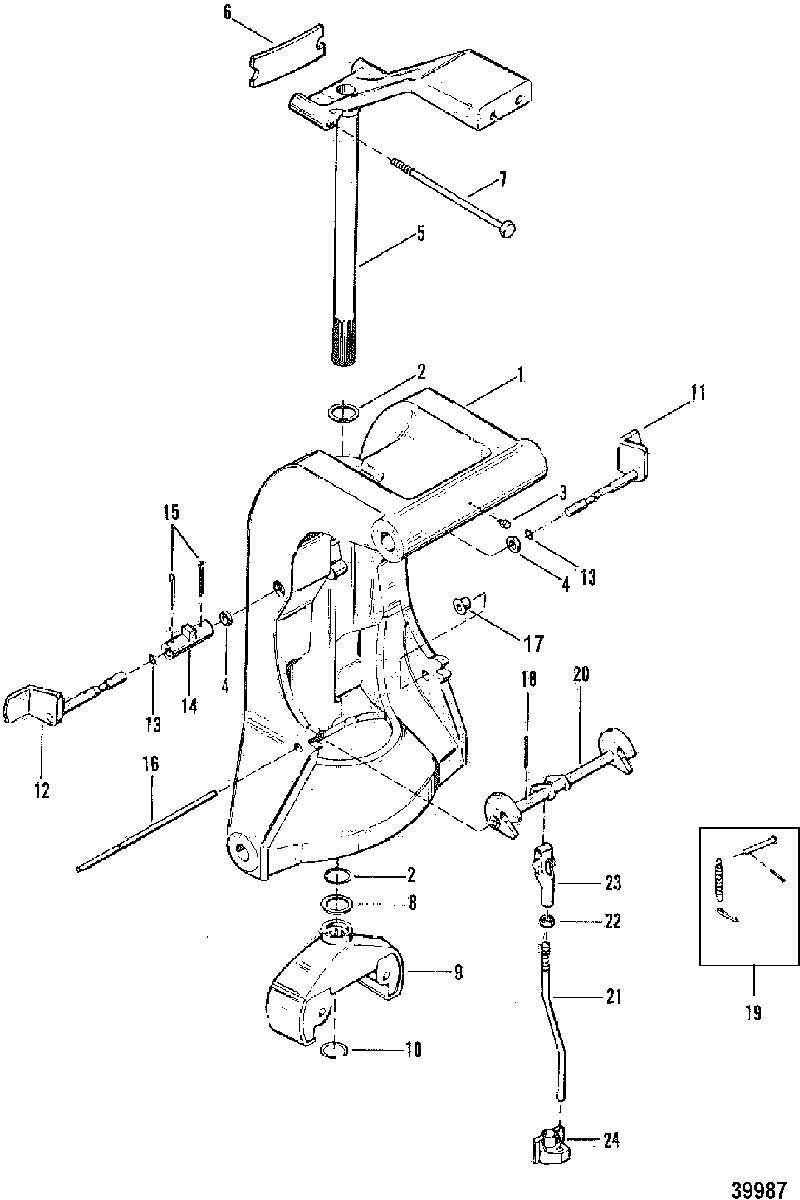

SWIVEL BRACKET AND REVERSE LOCK для Mercury - 70 (3 CYL.) 8065065 & Up
-
№АртикулНазвание
-
11489-8597A4 SWIVEL BRACKET (SHORT SHAFT)
WITH SHOCK ABSORBERSWIVEL BRACKET (SHORT SHAFT)
WITH SHOCK ABSORBER -
11490-8599A6 SWIVEL BRACKET (LONG SHAFT)
WITH SHOCK ABSORBERSWIVEL BRACKET (LONG SHAFT)
WITH SHOCK ABSORBER -
11489-8597A4 SWIVEL BRACKET (SHORT SHAFT)
WITHOUT SHOCK ABSORBERSWIVEL BRACKET (SHORT SHAFT)
WITHOUT SHOCK ABSORBER -
11490-8599A6 SWIVEL BRACKET (LONG SHAFT)
WITHOUT SHOCK ABSORBERSWIVEL BRACKET (LONG SHAFT)
WITHOUT SHOCK ABSORBER -
226-32911 SEAL, Oil, SWIVEL BRACKETSEAL, Oil, SWIVEL BRACKET
-
322-74036 FITTING, GreaseFITTING, Grease
-
426-22734 SEAL, Oil, SWIVEL BRACKETSEAL, Oil, SWIVEL BRACKET
-
569540A3 SWIVEL PIN ASSEMBLY (SHORT SHAFT)SWIVEL PIN ASSEMBLY (SHORT SHAFT)
-
569540A4 SWIVEL PIN ASSEMBLY (LONG SHAFT)SWIVEL PIN ASSEMBLY (LONG SHAFT)
-
630711 BUMPER, STEERING ARMBUMPER, STEERING ARM
-
710-66897 BOLT, (.437-20 x 5.250), UPPER MOUNT TO SWIVEL PINBOLT, (.437-20 x 5.250), UPPER MOUNT TO SWIVEL PIN
-
812-25176 WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)
-
977416T1 YOKE, BottomYOKE, Bottom
-
1053-77415 RETAINING RING, BOTTOM YOKERETAINING RING, BOTTOM YOKE
-
1176386 TILT LOCK ASSEMBLY, STARBOARD
SN# USA-6279959/Belgium-9372270/Canada-7202652 & BelowTILT LOCK ASSEMBLY, STARBOARD
SN# USA-6279959/Belgium-9372270/Canada-7202652 & Below -
1276385T TILT LOCK ASSEMBLY, PORT
SN# USA-6279959/Belgium-9372270/Canada-7202652 & BelowTILT LOCK ASSEMBLY, PORT
SN# USA-6279959/Belgium-9372270/Canada-7202652 & Below -
11/1289105 TILT LOCK, STARBOAR/PORT
SN# USA-6279960/Belgium-9372271/Canada-7202653 & UpTILT LOCK, STARBOAR/PORT
SN# USA-6279960/Belgium-9372271/Canada-7202653 & Up -
1325-627021 O-RING, (.301 x .070), TILT LOCKO-RING, (.301 x .070), TILT LOCK
-
1479659 COUPLING, TILT LOCKCOUPLING, TILT LOCK
-
1518-47959 COTTER PIN, TILT LOCK TUBECOTTER PIN, TILT LOCK TUBE
-
1656349 SHAFT, REVERSE LOCK PIVOTSHAFT, REVERSE LOCK PIVOT
-
1723-69132 BUSHING, REVERSE PIVOT SHAFTBUSHING, REVERSE PIVOT SHAFT
-
1818-45882 COTTER PIN, REVERSE LOCK TO SHAFTCOTTER PIN, REVERSE LOCK TO SHAFT
-
1924-78203A2 SPRING, REVERSE LOCK TENSION
SN# USA-5850645/Australia-8068964/Belgium-9306770/Canada-7172432 & BelowSPRING, REVERSE LOCK TENSION
SN# USA-5850645/Australia-8068964/Belgium-9306770/Canada-7172432 & Below -
1924-78203A2 SPRING, REVERSE LOCK TENSION
SN# USA-5850646/Belgium-9306771/Canada-7172433 & UpSPRING, REVERSE LOCK TENSION
SN# USA-5850646/Belgium-9306771/Canada-7172433 & Up -
2087432 LOCK ASSEMBLY, Reverse
SN# USA-5850645/Australia-8068964/Belgium-9306770/Canada-7172432 & BelowLOCK ASSEMBLY, Reverse
SN# USA-5850645/Australia-8068964/Belgium-9306770/Canada-7172432 & Below -
2014664A3 LOCK ASSEMBLY, Reverse
SN# USA-5850646/Belgium-9306771/Canada-7172433 & UpLOCK ASSEMBLY, Reverse
SN# USA-5850646/Belgium-9306771/Canada-7172433 & Up -
2147835 PUSH ROD, REVERSE LOCK (SHORT SHAFT)
SN# USA-5850645/Australia-8068964/Belgium-9306770/Canada-7172432 & BelowPUSH ROD, REVERSE LOCK (SHORT SHAFT)
SN# USA-5850645/Australia-8068964/Belgium-9306770/Canada-7172432 & Below -
2147836 PUSH ROD, REVERSE LOCK (LONG SHAFT)
SN# USA-5850645/Australia-8068964/Belgium-9306770/Canada-7172432 & BelowPUSH ROD, REVERSE LOCK (LONG SHAFT)
SN# USA-5850645/Australia-8068964/Belgium-9306770/Canada-7172432 & Below -
2143415A2 PUSH ROD, REVERSE LOCK (SHORT SHAFT)
SN# USA-5850646/Belgium-9306771/Canada-7172433 & UpPUSH ROD, REVERSE LOCK (SHORT SHAFT)
SN# USA-5850646/Belgium-9306771/Canada-7172433 & Up -
2143416A2 PUSH ROD, REVERSE LOCK (LONG SHAFT)
SN# USA-5850646/Belgium-9306771/Canada-7172433 & UpPUSH ROD, REVERSE LOCK (LONG SHAFT)
SN# USA-5850646/Belgium-9306771/Canada-7172433 & Up -
2211-28770 NUT, (.312-24) Stainless Steel, PUSH RODNUT, (.312-24) Stainless Steel, PUSH ROD
-
2347837 ROD END, PUSH ROD
SN# USA-5850645/Australia-8068964/Belgium-9306770/Canada-7172432 & BelowROD END, PUSH ROD
SN# USA-5850645/Australia-8068964/Belgium-9306770/Canada-7172432 & Below -
2389813 ROD END, PUSH ROD
SN# USA-5850646/Belgium-9306771/Canada-7172433 & UpROD END, PUSH ROD
SN# USA-5850646/Belgium-9306771/Canada-7172433 & Up -
24933361 GUIDE, PUSH RODGUIDE, PUSH ROD
-
-27-88449A32 GASKET SETGASKET SET
