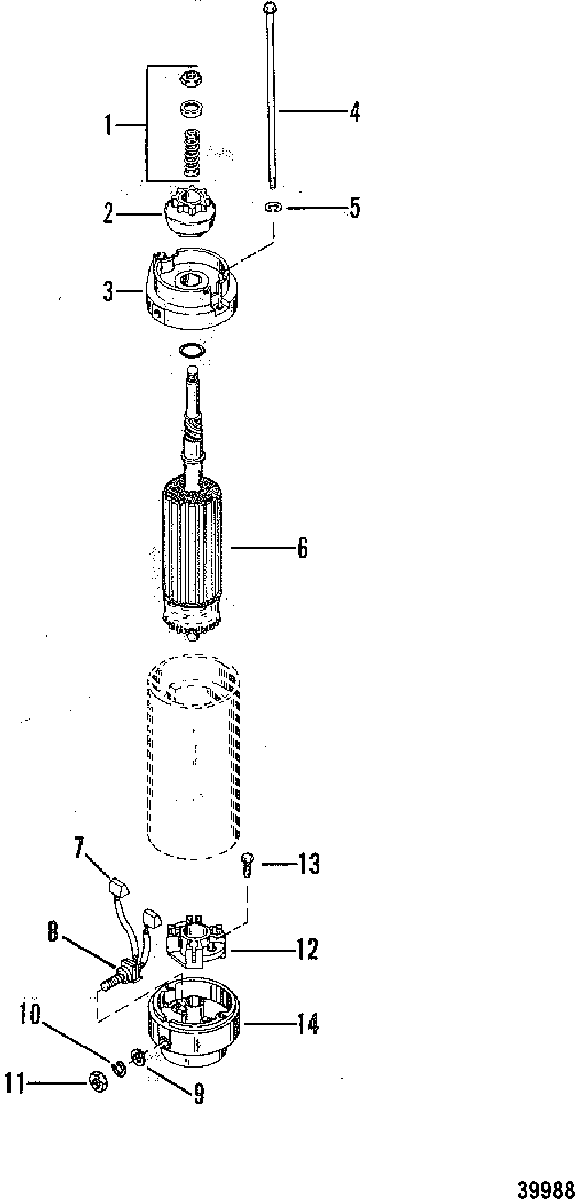

STARTER MOTOR ASSEMBLY, BOSCH для Mercury - 70 (3 CYL.) 8065065 & Up

  • №
    Артикул
    Название
  • -
    50-44369A1 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 1
    90643 DRIVE KIT
    DRIVE KIT
  • 2
    685753 DRIVE ASSEMBLY
    DRIVE ASSEMBLY
  • 3
    N.S.S. Not Sold Separate, PLATE, DRIVE END
    Not Sold Separate, PLATE, DRIVE END
  • 4
    10-68576 BOLT, THRU-PLATE TO END CAP
    BOLT, THRU-PLATE TO END CAP
  • 5
    13-61789 LOCKWASHER, THRU BOLT
    LOCKWASHER, THRU BOLT
  • 6
    68578 ARMATURE
    ARMATURE
  • 7
    898265016 BRUSH/SPRING KIT
    BRUSH/SPRING KIT
  • 8
    23-57387 BUSHING, INSULATING-INPUT STUD
    BUSHING, INSULATING-INPUT STUD
  • 9
    12-38013 WASHER, INPUT STUD
    WASHER, INPUT STUD
  • 10
    13-26992 LOCKWASHER, (.250) Stainless Steel, INPUT STUD
    LOCKWASHER, (.250) Stainless Steel, INPUT STUD
  • 11
    11-20890 NUT, (.250-20), INPUT STUD
    NUT, (.250-20), INPUT STUD
  • 12
    898265014 HOLDER, BRUSH
    HOLDER, BRUSH
  • 13
    10-68586 SCREW, BRUSH AND HOLDER TO CAP
    SCREW, BRUSH AND HOLDER TO CAP
  • 14
    15386001 END CAP, COMMUTATOR
    END CAP, COMMUTATOR
