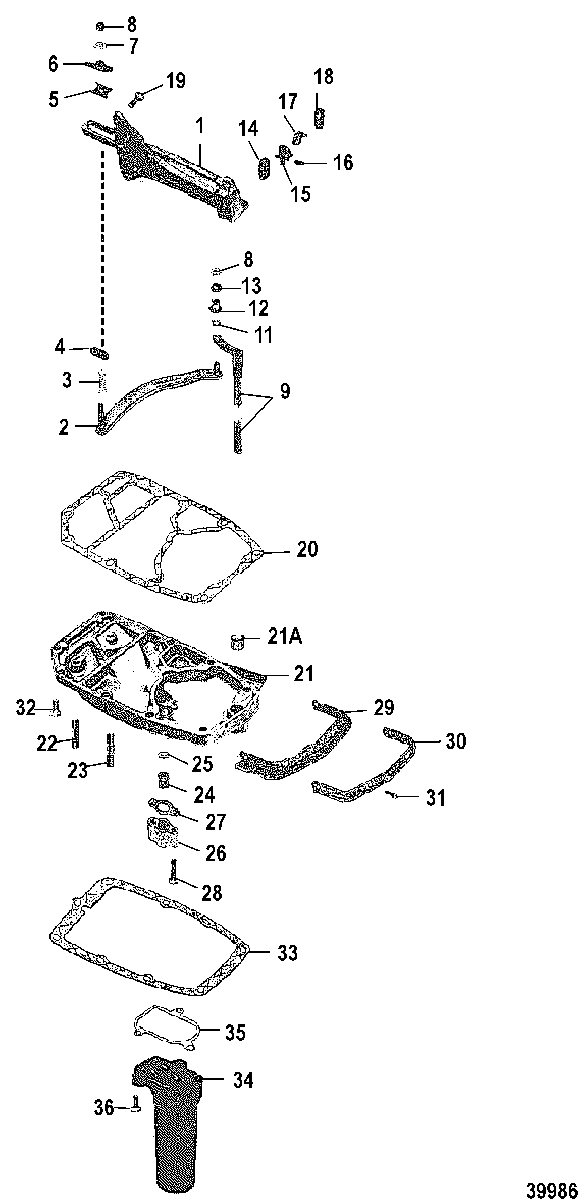

SHIFT LINKAGE AND EXHAUST PLATE для Mercury - 70 (3 CYL.) 8065065 & Up

  • №
    Артикул
    Название
  • 1
    814283A2 BRACKET, ANCHOR-CONTROL CABLES
    BRACKET, ANCHOR-CONTROL CABLES
  • 2
    60283A1 LINK ASSEMBLY, SHIFT SHAFT
    LINK ASSEMBLY, SHIFT SHAFT
  • 3
    24-20099 SPRING, LINK TO ANCHOR BRACKET
    SPRING, LINK TO ANCHOR BRACKET
  • 4
    37896 GUIDE BLOCK, LINK
    GUIDE BLOCK, LINK
  • 5
    52100 WEAR PLATE, NYLON-LINK
    WEAR PLATE, NYLON-LINK
  • 6
    8M0036768 LATCH, LINK TO ANCHOR BRACKET
    LATCH, LINK TO ANCHOR BRACKET
  • 7
    12-69056 WASHER, (.255 x .625 x .0312), LINK LATCH
    WASHER, (.255 x .625 x .0312), LINK LATCH
  • 8
    11-36069 NUT, LINK ATTACHING
    NUT, LINK ATTACHING
  • 9
    75355A30 SHIFT SHAFT ASSEMBLY, UPPER
    (SHORT SHAFT)
    SHIFT SHAFT ASSEMBLY, UPPER
    (SHORT SHAFT)
  • 9
    75355A32 SHIFT SHAFT ASSEMBLY, UPPER
    (LONG SHAFT)
    SHIFT SHAFT ASSEMBLY, UPPER
    (LONG SHAFT)
  • 11
    13-29720 WAVE WASHER, SHIFT SHAFT TO LINK
    WAVE WASHER, SHIFT SHAFT TO LINK
  • 12
    23-26600 BUSHING, NYLON-SHIFT SHAFT TO LINK
    BUSHING, NYLON-SHIFT SHAFT TO LINK
  • 13
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel, LINK (SHIFT SHAFT END)
    WASHER, (.2656 x .625 x .0625) Stainless Steel, LINK (SHIFT SHAFT END)
  • 14
    39519 CUP, RETAINER-ANCHOR BRACKET
    CUP, RETAINER-ANCHOR BRACKET
  • 15
    87609A1 LEVER, NYLON-SHIFT CABLE LOCKING
    LEVER, NYLON-SHIFT CABLE LOCKING
  • 16
    17-47175 PIN, LOCKING LEVER AND COVER
    PIN, LOCKING LEVER AND COVER
  • 17
    87609A1 LINK, LOCKING LEVER TO COVER
    LINK, LOCKING LEVER TO COVER
  • 18
    90211 COVER, NYLON-SHIFT CABLE
    COVER, NYLON-SHIFT CABLE
  • 19
    10-69101 SCREW, ANCHOR BRACKET (7/8")
    SCREW, ANCHOR BRACKET (7/8")
  • 20
    27-884511 GASKET, POWERHEAD
    GASKET, POWERHEAD
  • 21
    42869A2 PLATE ASSEMBLY, Exhaust
    SN# USA-5850645/Australia-8068964/Belgium-9306770/Canada-7172432 & Below
    PLATE ASSEMBLY, Exhaust
    SN# USA-5850645/Australia-8068964/Belgium-9306770/Canada-7172432 & Below
  • 21
    42869A2 PLATE ASSEMBLY, Exhaust
    SN# USA-5850646/Belgium-9306771/Canada-7172433 & Up
    PLATE ASSEMBLY, Exhaust
    SN# USA-5850646/Belgium-9306771/Canada-7172433 & Up
  • 21A
    23-27132 BUSHING, NYLON-EXHAUST PLATE
    BUSHING, NYLON-EXHAUST PLATE
  • 22
    16-8M0034449 STUD, (.312-18/.312-24 x 1.690), EXHAUST PLATE
    STUD, (.312-18/.312-24 x 1.690), EXHAUST PLATE
  • 23
    16-68166 STUD, (.312 x 2.125), EXHAUST PLATE
    STUD, (.312 x 2.125), EXHAUST PLATE
  • 24
    26-38452 SEAL, WATER INLET TUBE
    SEAL, WATER INLET TUBE
  • 25
    12-38453 WASHER, NYLON-WATER SEAL
    WASHER, NYLON-WATER SEAL
  • 26
    79799 HOUSING, WATER SEAL
    HOUSING, WATER SEAL
  • 27
    27-797971 GASKET, HOUSING
    GASKET, HOUSING
  • 28
    10-79798 SCREW, (#10-32 x 1.380), HOUSING TO EXHAUST PLATE
    SCREW, (#10-32 x 1.380), HOUSING TO EXHAUST PLATE
  • 29
    60307 SEAL, EXHAUST PLATE
    SEAL, EXHAUST PLATE
  • 30
    60306 STRIP, RETAINING-EXHAUST PLATE SEAL
    STRIP, RETAINING-EXHAUST PLATE SEAL
  • 31
    10-62568 SCREW, (#10-16 x .375), RETIANING STRIP
    SCREW, (#10-16 x .375), RETIANING STRIP
  • 32
    10-68918 SCREW, (#10-24 x 1.00), EXHAUST PLATE
    SCREW, (#10-24 x 1.00), EXHAUST PLATE
  • 32
    10-28668 SCREW, (.250-20 x .875) Stainless Steel, EXHAUST PLATE
    SCREW, (.250-20 x .875) Stainless Steel, EXHAUST PLATE
  • 33
    27-385011 GASKET, ADAPTOR PLATE
    GASKET, ADAPTOR PLATE
  • 34
    42718 TUBE, Exhaust, ADAPTOR
    TUBE, Exhaust, ADAPTOR
  • 35
    27-602801 GASKET, EXHAUST TUBE
    GASKET, EXHAUST TUBE
  • 36
    10-28636 SCREW, (.250-20 x .750), EXHAUST TUBE
    SCREW, (.250-20 x .750), EXHAUST TUBE
  • -
    27-88449A32 GASKET SET
    GASKET SET
