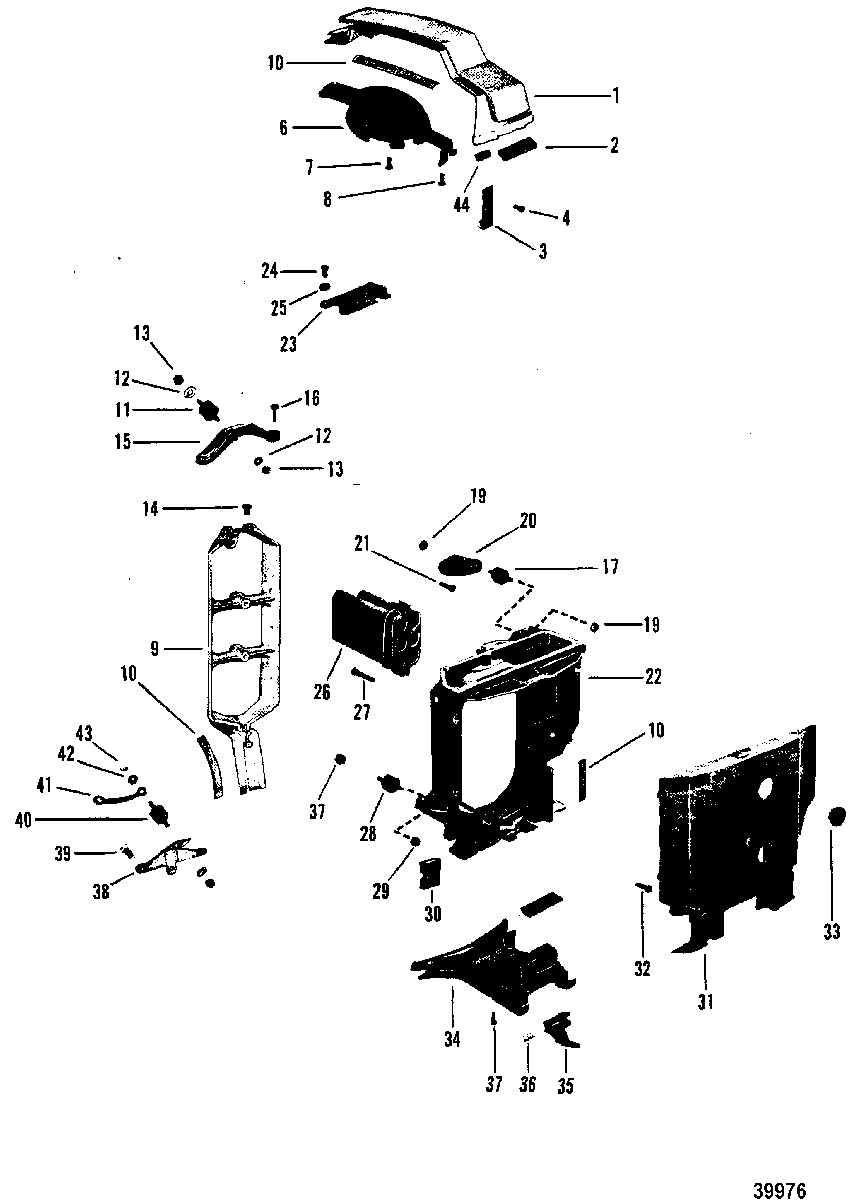

COWL SUPPORT BRACKETS для Mercury - 70 (3 CYL.) 8065065 & Up

  • №
    Артикул
    Название
  • 1
    73641A1 BRACKET, COWL SUPPORT-TOP
    BRACKET, COWL SUPPORT-TOP
  • 2
    62444 SEAL, RUBBER-TOP BRACKET/MOUNTING PLATE
    SEAL, RUBBER-TOP BRACKET/MOUNTING PLATE
  • 3
    79652 CLIP, SUPPORT BRACKET
    CLIP, SUPPORT BRACKET
  • 4
    10-48408 SCREW, (#10-16 x .500), CLIP TO SUPPORT
    SCREW, (#10-16 x .500), CLIP TO SUPPORT
  • 6
    79490 SHIELD, FLYWHEEL
    SHIELD, FLYWHEEL
  • 7
    10-37656 SCREW, (#10-32 x .620), SHIELD TO SUPPORT BRACKET
    SCREW, (#10-32 x .620), SHIELD TO SUPPORT BRACKET
  • 8
    10-48409 SCREW, (#10-16 x .625) Stainless Steel, SHIELD TO SUPPORT BRACKET
    SCREW, (#10-16 x .625) Stainless Steel, SHIELD TO SUPPORT BRACKET
  • 9
    74510A2 BRACKET, COWL SUPPORT-REAR
    BRACKET, COWL SUPPORT-REAR
  • 10
    698761 SEAL, REAR BRACKET AND TOP BRACKET
    SEAL, REAR BRACKET AND TOP BRACKET
  • 11
    90435 MOUNT, RUBBER-REAR SUPPORT BRACKET
    MOUNT, RUBBER-REAR SUPPORT BRACKET
  • 12
    12-69057 WASHER, RUBBER MOUNT
    WASHER, RUBBER MOUNT
  • 13
    11-36069 NUT, RUBBER MOUNT
    NUT, RUBBER MOUNT
  • 14
    269011 BUMPER, RUBBER-REAR SUPPORT BRACKET
    BUMPER, RUBBER-REAR SUPPORT BRACKET
  • 15
    60116 BRACE, COWL SUPPORT BRACKET (TOP)
    BRACE, COWL SUPPORT BRACKET (TOP)
  • 16
    10-76596 SCREW, (.250-20 x 1.250), SUPPORT BRACKET
    SCREW, (.250-20 x 1.250), SUPPORT BRACKET
  • 17
    90435 MOUNT, RUBBER-FRONT SUPPORT BRACKET
    MOUNT, RUBBER-FRONT SUPPORT BRACKET
  • 19
    11-36069 NUT, RUBBER MOUNT
    NUT, RUBBER MOUNT
  • 20
    71097 BRACKET, RUBBER MOUNT
    BRACKET, RUBBER MOUNT
  • 21
    10-824941 SCREW, (.312-18 x .750), BRACKET TO CRANKCASE
    SCREW, (.312-18 x .750), BRACKET TO CRANKCASE
  • 22
    973481 ATTENUATOR, SOUND
    SN# USA-6104369/Belgium-9352915/Canada-7192547 & Below
    ATTENUATOR, SOUND
    SN# USA-6104369/Belgium-9352915/Canada-7192547 & Below
  • 22
    973481 ATTENUATOR, SOUND
    SN# USA-6104370/Belgium-9352916/Canada-7192548 & Up
    ATTENUATOR, SOUND
    SN# USA-6104370/Belgium-9352916/Canada-7192548 & Up
  • 23
    88684 COVER, MANUAL CHOKE
    COVER, MANUAL CHOKE
  • 24
    10-23015 SCREW, (.190-32 x 1.00), COVER TO TOP COVER
    SCREW, (.190-32 x 1.00), COVER TO TOP COVER
  • 25
    12-814806 WASHER, COVER SCREW
    WASHER, COVER SCREW
  • 26
    73986 MANIFOLD, Air
    MANIFOLD, Air
  • 27
    10-69093 SCREW, (.250-20 x 1.50), AIR MANIFOLD
    SCREW, (.250-20 x 1.50), AIR MANIFOLD
  • 28
    90435 MOUNT, RUBBER-FRONT SUPPORT
    MOUNT, RUBBER-FRONT SUPPORT
  • 29
    11-36069 NUT, RUBBER MOUNT
    NUT, RUBBER MOUNT
  • 30
    76410 SEAL, FUEL CONNECTOR-SOUND ATTENUATOR
    SEAL, FUEL CONNECTOR-SOUND ATTENUATOR
  • 31
    76578 COVER, SOUND ATTENUATOR (FRONT)
    COVER, SOUND ATTENUATOR (FRONT)
  • 32
    10-37571 SCREW, (.190-32 x .500), FRONT COVER
    SCREW, (.190-32 x .500), FRONT COVER
  • 33
    19-73336 PLUG, FRONT COVER
    PLUG, FRONT COVER
  • 34
    76251A1 PLATE ASSEMBLY, FRONT COVER
    PLATE ASSEMBLY, FRONT COVER
  • 35
    76264 LATCH, FRONT COVER
    LATCH, FRONT COVER
  • 36
    24-60295 SPRING, FRONT COVER LATCH
    SPRING, FRONT COVER LATCH
  • 37
    10-28635 SCREW, (.250-20 x .620) Stainless Steel, COVER PLATE TO SUPPORT BRACKET
    SCREW, (.250-20 x .620) Stainless Steel, COVER PLATE TO SUPPORT BRACKET
  • 38
    87764 BRACKET, REAR-LOWER MOUNT
    BRACKET, REAR-LOWER MOUNT
  • 39
    10-76596 SCREW, (.250-20 x 1.250), REAR BRACKET ATTACHING
    SCREW, (.250-20 x 1.250), REAR BRACKET ATTACHING
  • 40
    90435 MOUNT, RUBBER-REAR COWL SUPPORT
    MOUNT, RUBBER-REAR COWL SUPPORT
  • 41
    88238A3 CABLE ASSEMBLY, Ground
    CABLE ASSEMBLY, Ground
  • 42
    12-69057 WASHER, RUBBER MOUNT
    WASHER, RUBBER MOUNT
  • 43
    11-8267089 NUT, (.250-28), RUBBER MOUNT
    NUT, (.250-28), RUBBER MOUNT
  • 44
    91891 WEAR PLATE, SOUND ATTENUATOR
    WEAR PLATE, SOUND ATTENUATOR
